8E19 | pdb_00008e19

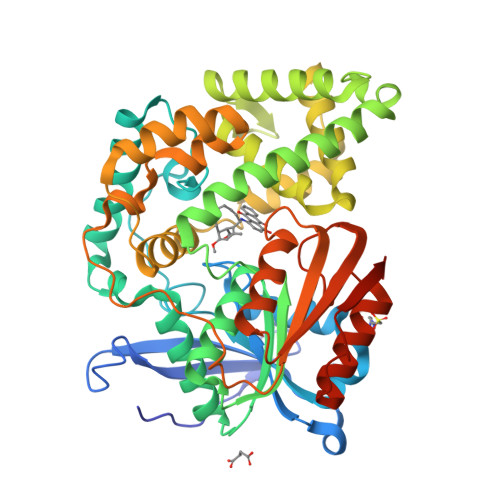

Crystal structure of TnmK1 complexed with TNM H


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.03 Å
  • R-Value Free:
    0.206 (Depositor), 0.210 (DCC)
  • R-Value Work:
    0.181 (Depositor), 0.180 (DCC)
  • R-Value Observed:
    0.183 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted U8LClick on this verticalbar to view details

This is version 1.2 of the entry. See complete history


Literature

Intramolecular C-C Bond Formation Links Anthraquinone and Enediyne Scaffolds in Tiancimycin Biosynthesis.

Gui, C.Kalkreuter, E.Liu, Y.C.Adhikari, A.Teijaro, C.N.Yang, D.Chang, C.Shen, B.

(2022) J Am Chem Soc 144: 20452-20462

  • DOI: https://doi.org/10.1021/jacs.2c08957
  • Primary Citation of Related Structures:
    8E18, 8E19

  • PubMed Abstract:

    First discovered in 1989, the anthraquinone-fused enediynes are a class of DNA-cleaving bacterial natural products composed of a DNA-intercalating anthraquinone moiety and a 10-membered enediyne warhead. However, until recently, there has been a lack of genetically amenable hosts and sequenced biosynthetic gene clusters available for solving the biosynthetic questions surrounding these molecules. Herein, we have identified and biochemically and structurally characterized TnmK1, a member of the α/β-hydrolase fold superfamily responsible for the C-C bond formation linking the anthraquinone moiety and enediyne core together in tiancimycin (TNM) biosynthesis. In doing so, two intermediates, TNM H and TNM I, in anthraquinone-fused enediyne biosynthesis, containing an unprecedented cryptic C16 aldehyde group, were identified. This aldehyde plays a key role in the TnmK1-catalyzed C-C bond formation via a Michael addition, representing the first example of this chemistry for the α/β-hydrolase fold superfamily. Additionally, TNM I shows sub-nanomolar cytotoxicity against selected cancer cell lines, indicating a new mechanism of action compared to previously known anthraquinone-fused enediynes. Together, the findings from this study are expected to impact enzymology, natural product biosynthesis, and future efforts at enediyne discovery and drug development.


  • Organizational Affiliation

    Skaggs Graduate School of Chemical and Biological Sciences, Scripps Research, Jupiter, Florida 33458, United States.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Secreted hydrolase484Streptomyces sp. CB03234Mutation(s): 0
Gene Names: tnmK1AMK26_32035
UniProt
Find proteins for A0A125SA14 (Streptomyces sp. (strain CB03234))
Explore A0A125SA14
Go to UniProtKB:  A0A125SA14
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A125SA14
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
U8L (Subject of Investigation/LOI)
Query on U8L

Download Ideal Coordinates CCD File
B [auth A](1R,8S,13S)-8-[(4-hydroxy-9,10-dioxo-9,10-dihydroanthracen-1-yl)amino]-12-methoxy-10-methylbicyclo[7.3.1]trideca-9,11-diene-2,6-diyne-13-carbaldehyde
C30 H23 N O5
NLNOIBOHBHXKKN-NYVOZVTQSA-N
EPE
Query on EPE

Download Ideal Coordinates CCD File
C [auth A]4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
C8 H18 N2 O4 S
JKMHFZQWWAIEOD-UHFFFAOYSA-N
SIN
Query on SIN

Download Ideal Coordinates CCD File
D [auth A]SUCCINIC ACID
C4 H6 O4
KDYFGRWQOYBRFD-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.03 Å
  • R-Value Free:  0.206 (Depositor), 0.210 (DCC)
  • R-Value Work:  0.181 (Depositor), 0.180 (DCC)
  • R-Value Observed: 0.183 (Depositor)
Space Group: P 41 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 85.843α = 90
b = 85.843β = 90
c = 129.317γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
PHENIXrefinement
HKL-2000data reduction
HKL-2000data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted U8LClick on this verticalbar to view details

Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM134954

Revision History  (Full details and data files)

  • Version 1.0: 2022-11-09
    Type: Initial release
  • Version 1.1: 2022-11-16
    Changes: Database references
  • Version 1.2: 2023-10-18
    Changes: Data collection, Refinement description
