8D4P | pdb_00008d4p

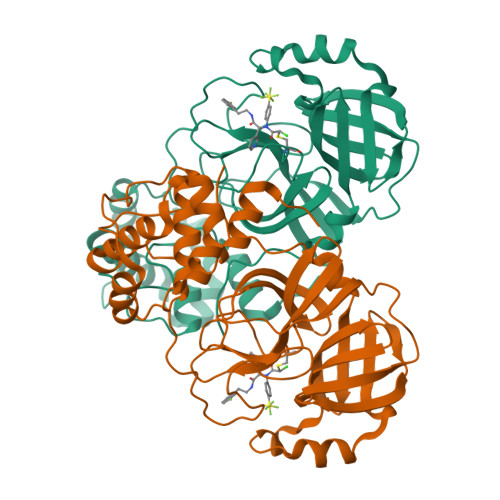

Crystal structure of the SARS-CoV-2 (COVID-19) main protease in complex with inhibitor Jun10-90-3-C1

PDB DOI: https://doi.org/10.2210/pdb8D4P/pdb

Classification: VIRAL PROTEIN/INHIBITOR
Organism(s): Severe acute respiratory syndrome coronavirus 2
Expression System: Escherichia coli 'BL21-Gold(DE3)pLysS AG
Mutation(s): No

Deposited: 2022-06-02 Released: 2023-06-07
Deposition Author(s): Butler, S.G., Chen, Y., Wang, J.
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.04 Å
R-Value Free:
0.257 (Depositor), 0.252 (DCC)
R-Value Work:
0.189 (Depositor), 0.201 (DCC)
R-Value Observed:
0.193 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 8D4P

Ligand Structure Quality Assessment

This is version 1.2 of the entry. See complete history.

Literature

Crystal structure of the SARS-CoV-2 (COVID-19) main protease in complex with inhibitor Jun10-90-3-C1

Butler, S.G., Chen, Y., Wang, J.

To be published.

Macromolecule Content

Total Structure Weight: 34.41 kDa
Atom Count: 2,478
Modeled Residue Count: 305
Deposited Residue Count: 306
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
3C-like proteinase	A	306	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0 Gene Names: rep, 1a-1b EC: 3.4.22.69
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTD1 Go to UniProtKB: P0DTD1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0DTD1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
QAO (Subject of Investigation/LOI) Query on QAO Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	2-chloro-N-[(1R)-2-{[2-(3-fluorophenyl)ethyl]amino}-2-oxo-1-(pyridin-3-yl)ethyl]-N-[4-(pentafluoro-lambda~6~-sulfanyl)phenyl]acetamide C₂₃ H₁₉ Cl₂ F₆ N₃ O₂ S QPUDXWFOZNQTRA-HXUWFJFHSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.04 Å
R-Value Free: 0.257 (Depositor), 0.252 (DCC)
R-Value Work: 0.189 (Depositor), 0.201 (DCC)
R-Value Observed: 0.193 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 114.643	α = 90
b = 53.607	β = 101.86
c = 45.029	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
PDB_EXTRACT	data extraction
HKL-3000	data reduction
HKL-3000	data scaling
MOLREP	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2023-06-07

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	AI158775

Revision History (Full details and data files)

Version 1.0: 2023-06-07
Type: Initial release
Version 1.1: 2023-10-25
Changes: Data collection, Refinement description
Version 1.2: 2024-11-13
Changes: Structure summary
