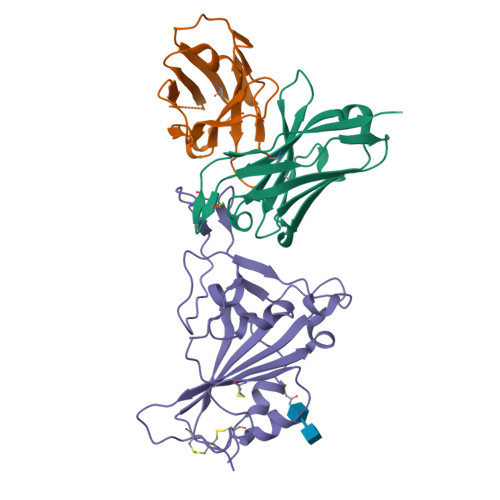

Biological Assembly 1

 3D View: Structure | 1D-3D View | Electron Density | Validation Report

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 3-mer - A1B1C1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 3-mer - A2B1

Biological assembly 1 assigned by authors.

Macromolecule Content

• Total Structure Weight: 168.06 kDa
• Atom Count: 3038
• Modelled Residue Count: 419
• Deposited Residue Count: 1520
• Unique protein chains: 3

7K45

SARS-CoV-2 spike in complex with the S2E12 neutralizing antibody Fab fragment (local refinement of the RBD and Fab variable domains)

• PDB DOI: 10.2210/pdb7K45/pdb
• EM Map EMD-22660:EMDBEMDataResource

• Classification: VIRAL PROTEIN/IMMUNE SYSTEM
• Organism(s): Homo sapiens, Severe acute respiratory syndrome coronavirus 2
• Expression System: Cricetulus griseus, Homo sapiens
• Mutation(s): No


• Deposited: 2020-09-14 Released: 2020-10-07
• Deposition Author(s): Tortorici, M.A., Veesler, D.
• Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.70 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Ultrapotent human antibodies protect against SARS-CoV-2 challenge via multiple mechanisms.

Tortorici, M.A., Beltramello, M., Lempp, F.A., Pinto, D., Dang, H.V., Rosen, L.E., McCallum, M., Bowen, J., Minola, A., Jaconi, S., Zatta, F., De Marco, A., Guarino, B., Bianchi, S., Lauron, E.J., Tucker, H., Zhou, J., Peter, A., Havenar-Daughton, C., Wojcechowskyj, J.A., Case, J.B., Chen, R.E., Kaiser, H., Montiel-Ruiz, M., Meury, M., Czudnochowski, N., Spreafico, R., Dillen, J., Ng, C., Sprugasci, N., Culap, K., Benigni, F., Abdelnabi, R., Foo, S.C., Schmid, M.A., Cameroni, E., Riva, A., Gabrieli, A., Galli, M., Pizzuto, M.S., Neyts, J., Diamond, M.S., Virgin, H.W., Snell, G., Corti, D., Fink, K., Veesler, D.

(2020) Science 370: 950-957

• PubMed: 32972994
• DOI: 10.1126/science.abe3354
• Primary Citation of Related Structures:
  7K3Q, 7K43, 7K45, 7K4N


• PubMed Abstract:


Efficient therapeutic options are needed to control the spread of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) that has caused more than 922,000 fatalities as of 13 September 2020. We report the isolation and characterization of two ultrapotent SARS-CoV-2 human neutralizing antibodies (S2E12 and S2M11) that protect hamsters against SARS-CoV-2 challenge. Cryo-electron microscopy structures show that S2E12 and S2M11 competitively block angiotensin-converting enzyme 2 (ACE2) attachment and that S2M11 also locks the spike in a closed conformation by recognition of a quaternary epitope spanning two adjacent receptor-binding domains. Antibody cocktails that include S2M11, S2E12, or the previously identified S309 antibody broadly neutralize a panel of circulating SARS-CoV-2 isolates and activate effector functions. Our results pave the way to implement antibody cocktails for prophylaxis or therapy, circumventing or limiting the emergence of viral escape mutants.

---

Organizational Affiliation:

Department of Biochemistry, University of Washington, Seattle, WA 98195, USA. [e-mail] [e-mail].

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
S2E12 neutralizing antibody Fab fragment (heavy chain)	A [auth H]	123	Homo sapiens	Mutation(s): 0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
S2E12 neutralizing antibody Fab fragment (light chain)	B [auth L]	109	Homo sapiens	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
Spike glycoprotein	C [auth B]	1288	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0  Gene Names: S, 2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2  Go to UniProtKB:  P0DTC2

Oligosaccharides

Help

Entity ID: 4
Molecule	Chains	Chain Length	2D Diagram	Glycosylation
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	D [auth A]	2		N-Glycosylation
Glycosylation Resources
GlyTouCan:  G42666HT GlyCosmos:  G42666HT GlyGen:  G42666HT

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.70 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Structure Validation

Entry History & Funding Information

Deposition Data

• Deposited Date: 2020-09-14
• Released Date: 2020-10-07
Deposition Author(s): Tortorici, M.A., Veesler, D.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)		R01GM120553

Revision History

• Version 1.0: 2020-10-07
  Type: Initial release

• Version 1.1: 2020-12-02
  Changes: Database references
