7D1T

Cryo-EM Structure of PSII at 1.95 angstrom resolution

PDB DOI: https://doi.org/10.2210/pdb7D1T/pdb
EM Map EMD-30547: EMDB EMDataResource

Classification: PHOTOSYNTHESIS
Organism(s): Thermostichus vulcanus
Mutation(s): No
Membrane Protein: Yes PDBTMmpstruc

Deposited: 2020-09-15 Released: 2021-03-31
Deposition Author(s): Kato, K., Miyazaki, N., Hamaguchi, T., Nakajima, Y., Akita, F., Yonekura, K., Shen, J.R.

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 1.95 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

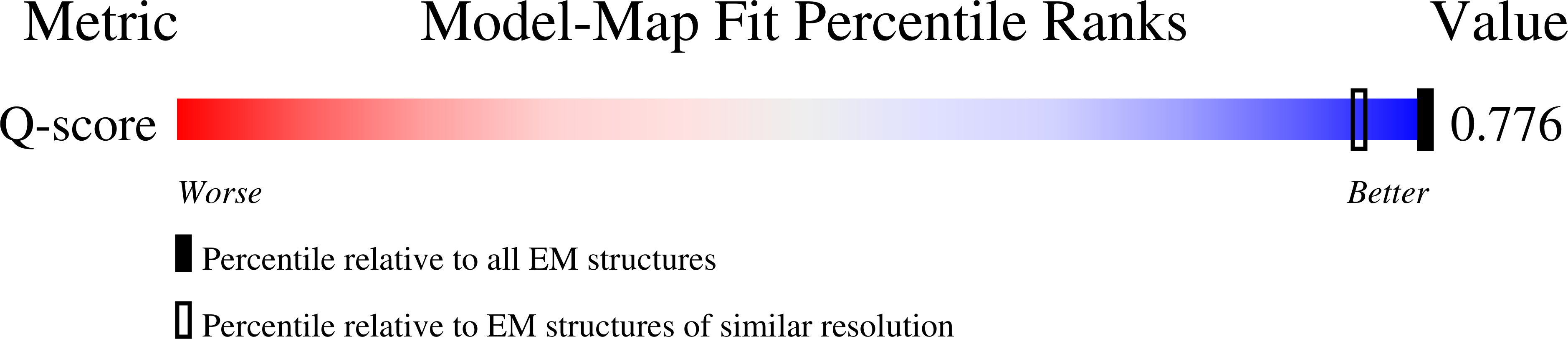

wwPDB Validation 3D Report Full Report

This is version 1.1 of the entry. See complete history.

Literature

High-resolution cryo-EM structure of photosystem II reveals damage from high-dose electron beams.

Kato, K., Miyazaki, N., Hamaguchi, T., Nakajima, Y., Akita, F., Yonekura, K., Shen, J.R.

(2021) Commun Biol 4: 382-382

PubMed: 33753866 Search on PubMedSearch on PubMed Central
DOI: https://doi.org/10.1038/s42003-021-01919-3
Primary Citation of Related Structures:
7D1T, 7D1U

PubMed Abstract:
Photosystem II (PSII) plays a key role in water-splitting and oxygen evolution. X-ray crystallography has revealed its atomic structure and some intermediate structures. However, these structures are in the crystalline state and its final state structure has not been solved. Here we analyzed the structure of PSII in solution at 1.95 Å resolution by single-particle cryo-electron microscopy (cryo-EM). The structure obtained is similar to the crystal structure, but a PsbY subunit was visible in the cryo-EM structure, indicating that it represents its physiological state more closely. Electron beam damage was observed at a high-dose in the regions that were easily affected by redox states, and reducing the beam dosage by reducing frames from 50 to 2 yielded a similar resolution but reduced the damage remarkably. This study will serve as a good indicator for determining damage-free cryo-EM structures of not only PSII but also all biological samples, especially redox-active metalloproteins.

Organizational Affiliation

Research Institute for Interdisciplinary Science and Graduate School of Natural Science and Technology, Okayama University, Okayama, Japan.

Macromolecule Content

Total Structure Weight: 709.09 kDa
Atom Count: 52,994
Modelled Residue Count: 5,312
Deposited Residue Count: 5,332
Unique protein chains: 20

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II protein D1	A, U [auth a]	334	Thermostichus vulcanus	Mutation(s): 0 EC: 1.10.3.9 Membrane Entity: Yes
UniProt
Find proteins for P51765 (Thermostichus vulcanus) Explore P51765 Go to UniProtKB: P51765
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P51765
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II CP47 reaction center protein	B, V [auth b]	505	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for D0VWR1 (Thermostichus vulcanus) Explore D0VWR1 Go to UniProtKB: D0VWR1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	D0VWR1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II CP43 reaction center protein	C, W [auth c]	451	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for D0VWR7 (Thermostichus vulcanus) Explore D0VWR7 Go to UniProtKB: D0VWR7
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	D0VWR7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II D2 protein	D, X [auth d]	342	Thermostichus vulcanus	Mutation(s): 0 EC: 1.10.3.9 Membrane Entity: Yes
UniProt
Find proteins for D0VWR8 (Thermostichus vulcanus) Explore D0VWR8 Go to UniProtKB: D0VWR8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	D0VWR8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image
Cytochrome b559 subunit alpha	E, Y [auth e]	81	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for P12238 (Thermostichus vulcanus) Explore P12238 Go to UniProtKB: P12238
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P12238
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image
Cytochrome b559 subunit beta	F, Z [auth f]	34	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for P12239 (Thermostichus vulcanus) Explore P12239 Go to UniProtKB: P12239
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P12239
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II reaction center protein H	AA [auth h], G [auth H]	63	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for P19052 (Thermostichus vulcanus) Explore P19052 Go to UniProtKB: P19052
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P19052
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II reaction center protein I	BA [auth i], H [auth I]	36	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for P12240 (Thermostichus vulcanus) Explore P12240 Go to UniProtKB: P12240
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P12240
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II reaction center protein J	CA [auth j], I [auth J]	37	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for Q7DGD4 (Thermostichus vulcanus) Explore Q7DGD4 Go to UniProtKB: Q7DGD4
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q7DGD4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II reaction center protein K	DA [auth k], J [auth K]	37	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for P19054 (Thermostichus vulcanus) Explore P19054 Go to UniProtKB: P19054
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P19054
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II reaction center protein L	EA [auth l], K [auth L]	37	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for P12241 (Thermostichus vulcanus) Explore P12241 Go to UniProtKB: P12241
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P12241
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II reaction center protein M	FA [auth m], L [auth M]	34	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for P12312 (Thermostichus vulcanus) Explore P12312 Go to UniProtKB: P12312
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P12312
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II manganese-stabilizing polypeptide	GA [auth o], M [auth O]	244	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for D0VWR2 (Thermostichus vulcanus) Explore D0VWR2 Go to UniProtKB: D0VWR2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	D0VWR2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II reaction center protein T	HA [auth t], N [auth T]	31	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for P12313 (Thermostichus vulcanus) Explore P12313 Go to UniProtKB: P12313
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P12313
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II 12 kDa extrinsic protein	IA [auth u], O [auth U]	97	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for P56152 (Thermostichus vulcanus) Explore P56152 Go to UniProtKB: P56152
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P56152
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image
Cytochrome c-550	JA [auth v], P [auth V]	137	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for P0A387 (Thermostichus vulcanus) Explore P0A387 Go to UniProtKB: P0A387
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0A387
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II reaction center protein Ycf12	KA [auth y], Q [auth Y]	30	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for D0VWR3 (Thermostichus vulcanus) Explore D0VWR3 Go to UniProtKB: D0VWR3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	D0VWR3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II reaction center protein X	LA [auth x], R [auth X]	40	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for D0VWR4 (Thermostichus vulcanus) Explore D0VWR4 Go to UniProtKB: D0VWR4
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	D0VWR4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 19
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II reaction center protein Z	MA [auth z], S [auth Z]	62	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for D0VWR5 (Thermostichus vulcanus) Explore D0VWR5 Go to UniProtKB: D0VWR5
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	D0VWR5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 20
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem II protein Y	NA [auth r], T [auth R]	34	Thermostichus vulcanus	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for P0DM37 (Thermostichus vulcanus) Explore P0DM37 Go to UniProtKB: P0DM37
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0DM37
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 18 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
DGD Query on DGD Download Ideal Coordinates CCD File SDF format, chain LH [auth h] SDF format, chain NG [auth c] SDF format, chain OG [auth c] SDF format, chain RD [auth H] SDF format, chain SC [auth C] SDF format, chain TC [auth C] SDF format, chain MG [auth c] SDF format, chain UC [auth C] MOL2 format, chain LH [auth h] MOL2 format, chain NG [auth c] MOL2 format, chain OG [auth c] MOL2 format, chain RD [auth H] MOL2 format, chain SC [auth C] MOL2 format, chain TC [auth C] MOL2 format, chain MG [auth c] MOL2 format, chain UC [auth C] mmCIF format, chain LH [auth h] mmCIF format, chain NG [auth c] mmCIF format, chain OG [auth c] mmCIF format, chain RD [auth H] mmCIF format, chain SC [auth C] mmCIF format, chain TC [auth C] mmCIF format, chain MG [auth c] mmCIF format, chain UC [auth C]	LH [auth h] MG [auth c] NG [auth c] OG [auth c] RD [auth H] LH [auth h], MG [auth c], NG [auth c], OG [auth c], RD [auth H], SC [auth C], TC [auth C], UC [auth C]	DIGALACTOSYL DIACYL GLYCEROL (DGDG) C₅₁ H₉₆ O₁₅ LDQFLSUQYHBXSX-HXXRYREZSA-N		Interactions Focus chain LH [auth h] Focus chain MG [auth c] Focus chain NG [auth c] Focus chain OG [auth c] Focus chain RD [auth H] Focus chain SC [auth C] Focus chain TC [auth C] Focus chain UC [auth C] Interactions & Density Focus chain LH [auth h] Focus chain MG [auth c] Focus chain NG [auth c] Focus chain OG [auth c] Focus chain RD [auth H] Focus chain SC [auth C] Focus chain TC [auth C] Focus chain UC [auth C]
CLA Query on CLA Download Ideal Coordinates CCD File SDF format, chain AF [auth b] SDF format, chain AG [auth c] SDF format, chain BF [auth b] SDF format, chain BG [auth c] SDF format, chain CB [auth B] SDF format, chain CF [auth b] SDF format, chain CG [auth c] SDF format, chain DB [auth B] SDF format, chain DD [auth D] SDF format, chain DG [auth c] SDF format, chain EB [auth B] SDF format, chain EC [auth C] SDF format, chain ED [auth D] SDF format, chain EF [auth b] SDF format, chain EG [auth c] SDF format, chain FB [auth B] SDF format, chain FG [auth c] SDF format, chain GB [auth B] SDF format, chain GF [auth b] SDF format, chain GG [auth c] SDF format, chain HB [auth B] SDF format, chain HF [auth b] SDF format, chain HG [auth c] SDF format, chain IB [auth B] SDF format, chain IC [auth C] SDF format, chain IF [auth b] SDF format, chain JB [auth B] SDF format, chain JF [auth b] SDF format, chain JG [auth c] SDF format, chain KB [auth B] SDF format, chain KC [auth C] SDF format, chain KF [auth b] SDF format, chain LB [auth B] SDF format, chain LC [auth C] SDF format, chain LF [auth b] SDF format, chain MB [auth B] SDF format, chain MC [auth C] SDF format, chain MF [auth b] SDF format, chain NB [auth B] SDF format, chain NC [auth C] SDF format, chain NE [auth a] SDF format, chain NF [auth b] SDF format, chain OB [auth B] SDF format, chain OC [auth C] SDF format, chain OF [auth b] SDF format, chain PC [auth C] SDF format, chain QE [auth a] SDF format, chain SA [auth A] SDF format, chain UG [auth d] SDF format, chain VA [auth A] SDF format, chain XG [auth d] SDF format, chain YF [auth c] SDF format, chain YG [auth d] SDF format, chain ZE [auth b] SDF format, chain ZF [auth c] SDF format, chain AD [auth D] SDF format, chain DC [auth C] SDF format, chain DF [auth b] SDF format, chain FC [auth C] SDF format, chain FF [auth b] SDF format, chain GC [auth C] SDF format, chain HC [auth C] SDF format, chain IG [auth c] SDF format, chain JC [auth C] SDF format, chain OE [auth a] SDF format, chain PB [auth B] SDF format, chain QB [auth B] SDF format, chain RB [auth B] SDF format, chain TA [auth A] SDF format, chain XF [auth c] MOL2 format, chain AF [auth b] MOL2 format, chain AG [auth c] MOL2 format, chain BF [auth b] MOL2 format, chain BG [auth c] MOL2 format, chain CB [auth B] MOL2 format, chain CF [auth b] MOL2 format, chain CG [auth c] MOL2 format, chain DB [auth B] MOL2 format, chain DD [auth D] MOL2 format, chain DG [auth c] MOL2 format, chain EB [auth B] MOL2 format, chain EC [auth C] MOL2 format, chain ED [auth D] MOL2 format, chain EF [auth b] MOL2 format, chain EG [auth c] MOL2 format, chain FB [auth B] MOL2 format, chain FG [auth c] MOL2 format, chain GB [auth B] MOL2 format, chain GF [auth b] MOL2 format, chain GG [auth c] MOL2 format, chain HB [auth B] MOL2 format, chain HF [auth b] MOL2 format, chain HG [auth c] MOL2 format, chain IB [auth B] MOL2 format, chain IC [auth C] MOL2 format, chain IF [auth b] MOL2 format, chain JB [auth B] MOL2 format, chain JF [auth b] MOL2 format, chain JG [auth c] MOL2 format, chain KB [auth B] MOL2 format, chain KC [auth C] MOL2 format, chain KF [auth b] MOL2 format, chain LB [auth B] MOL2 format, chain LC [auth C] MOL2 format, chain LF [auth b] MOL2 format, chain MB [auth B] MOL2 format, chain MC [auth C] MOL2 format, chain MF [auth b] MOL2 format, chain NB [auth B] MOL2 format, chain NC [auth C] MOL2 format, chain NE [auth a] MOL2 format, chain NF [auth b] MOL2 format, chain OB [auth B] MOL2 format, chain OC [auth C] MOL2 format, chain OF [auth b] MOL2 format, chain PC [auth C] MOL2 format, chain QE [auth a] MOL2 format, chain SA [auth A] MOL2 format, chain UG [auth d] MOL2 format, chain VA [auth A] MOL2 format, chain XG [auth d] MOL2 format, chain YF [auth c] MOL2 format, chain YG [auth d] MOL2 format, chain ZE [auth b] MOL2 format, chain ZF [auth c] MOL2 format, chain AD [auth D] MOL2 format, chain DC [auth C] MOL2 format, chain DF [auth b] MOL2 format, chain FC [auth C] MOL2 format, chain FF [auth b] MOL2 format, chain GC [auth C] MOL2 format, chain HC [auth C] MOL2 format, chain IG [auth c] MOL2 format, chain JC [auth C] MOL2 format, chain OE [auth a] MOL2 format, chain PB [auth B] MOL2 format, chain QB [auth B] MOL2 format, chain RB [auth B] MOL2 format, chain TA [auth A] MOL2 format, chain XF [auth c] mmCIF format, chain AF [auth b] mmCIF format, chain AG [auth c] mmCIF format, chain BF [auth b] mmCIF format, chain BG [auth c] mmCIF format, chain CB [auth B] mmCIF format, chain CF [auth b] mmCIF format, chain CG [auth c] mmCIF format, chain DB [auth B] mmCIF format, chain DD [auth D] mmCIF format, chain DG [auth c] mmCIF format, chain EB [auth B] mmCIF format, chain EC [auth C] mmCIF format, chain ED [auth D] mmCIF format, chain EF [auth b] mmCIF format, chain EG [auth c] mmCIF format, chain FB [auth B] mmCIF format, chain FG [auth c] mmCIF format, chain GB [auth B] mmCIF format, chain GF [auth b] mmCIF format, chain GG [auth c] mmCIF format, chain HB [auth B] mmCIF format, chain HF [auth b] mmCIF format, chain HG [auth c] mmCIF format, chain IB [auth B] mmCIF format, chain IC [auth C] mmCIF format, chain IF [auth b] mmCIF format, chain JB [auth B] mmCIF format, chain JF [auth b] mmCIF format, chain JG [auth c] mmCIF format, chain KB [auth B] mmCIF format, chain KC [auth C] mmCIF format, chain KF [auth b] mmCIF format, chain LB [auth B] mmCIF format, chain LC [auth C] mmCIF format, chain LF [auth b] mmCIF format, chain MB [auth B] mmCIF format, chain MC [auth C] mmCIF format, chain MF [auth b] mmCIF format, chain NB [auth B] mmCIF format, chain NC [auth C] mmCIF format, chain NE [auth a] mmCIF format, chain NF [auth b] mmCIF format, chain OB [auth B] mmCIF format, chain OC [auth C] mmCIF format, chain OF [auth b] mmCIF format, chain PC [auth C] mmCIF format, chain QE [auth a] mmCIF format, chain SA [auth A] mmCIF format, chain UG [auth d] mmCIF format, chain VA [auth A] mmCIF format, chain XG [auth d] mmCIF format, chain YF [auth c] mmCIF format, chain YG [auth d] mmCIF format, chain ZE [auth b] mmCIF format, chain ZF [auth c] mmCIF format, chain AD [auth D] mmCIF format, chain DC [auth C] mmCIF format, chain DF [auth b] mmCIF format, chain FC [auth C] mmCIF format, chain FF [auth b] mmCIF format, chain GC [auth C] mmCIF format, chain HC [auth C] mmCIF format, chain IG [auth c] mmCIF format, chain JC [auth C] mmCIF format, chain OE [auth a] mmCIF format, chain PB [auth B] mmCIF format, chain QB [auth B] mmCIF format, chain RB [auth B] mmCIF format, chain TA [auth A] mmCIF format, chain XF [auth c]	AD [auth D] AF [auth b] AG [auth c] BF [auth b] BG [auth c] AD [auth D], AF [auth b], AG [auth c], BF [auth b], BG [auth c], CB [auth B], CF [auth b], CG [auth c], DB [auth B], DC [auth C], DD [auth D], DF [auth b], DG [auth c], EB [auth B], EC [auth C], ED [auth D], EF [auth b], EG [auth c], FB [auth B], FC [auth C], FF [auth b], FG [auth c], GB [auth B], GC [auth C], GF [auth b], GG [auth c], HB [auth B], HC [auth C], HF [auth b], HG [auth c], IB [auth B], IC [auth C], IF [auth b], IG [auth c], JB [auth B], JC [auth C], JF [auth b], JG [auth c], KB [auth B], KC [auth C], KF [auth b], LB [auth B], LC [auth C], LF [auth b], MB [auth B], MC [auth C], MF [auth b], NB [auth B], NC [auth C], NE [auth a], NF [auth b], OB [auth B], OC [auth C], OE [auth a], OF [auth b], PB [auth B], PC [auth C], QB [auth B], QE [auth a], RB [auth B], SA [auth A], TA [auth A], UG [auth d], VA [auth A], XF [auth c], XG [auth d], YF [auth c], YG [auth d], ZE [auth b], ZF [auth c]	CHLOROPHYLL A C₅₅ H₇₂ Mg N₄ O₅ ATNHDLDRLWWWCB-AENOIHSZSA-M		Interactions Focus chain AD [auth D] Focus chain AF [auth b] Focus chain AG [auth c] Focus chain BF [auth b] Focus chain BG [auth c] Focus chain CB [auth B] Focus chain CF [auth b] Focus chain CG [auth c] Focus chain DB [auth B] Focus chain DC [auth C] Focus chain DD [auth D] Focus chain DF [auth b] Focus chain DG [auth c] Focus chain EB [auth B] Focus chain EC [auth C] Focus chain ED [auth D] Focus chain EF [auth b] Focus chain EG [auth c] Focus chain FB [auth B] Focus chain FC [auth C] Focus chain FF [auth b] Focus chain FG [auth c] Focus chain GB [auth B] Focus chain GC [auth C] Focus chain GF [auth b] Focus chain GG [auth c] Focus chain HB [auth B] Focus chain HC [auth C] Focus chain HF [auth b] Focus chain HG [auth c] Focus chain IB [auth B] Focus chain IC [auth C] Focus chain IF [auth b] Focus chain IG [auth c] Focus chain JB [auth B] Focus chain JC [auth C] Focus chain JF [auth b] Focus chain JG [auth c] Focus chain KB [auth B] Focus chain KC [auth C] Focus chain KF [auth b] Focus chain LB [auth B] Focus chain LC [auth C] Focus chain LF [auth b] Focus chain MB [auth B] Focus chain MC [auth C] Focus chain MF [auth b] Focus chain NB [auth B] Focus chain NC [auth C] Focus chain NE [auth a] Focus chain NF [auth b] Focus chain OB [auth B] Focus chain OC [auth C] Focus chain OE [auth a] Focus chain OF [auth b] Focus chain PB [auth B] Focus chain PC [auth C] Focus chain QB [auth B] Focus chain QE [auth a] Focus chain RB [auth B] Focus chain SA [auth A] Focus chain TA [auth A] Focus chain UG [auth d] Focus chain VA [auth A] Focus chain XF [auth c] Focus chain XG [auth d] Focus chain YF [auth c] Focus chain YG [auth d] Focus chain ZE [auth b] Focus chain ZF [auth c] Interactions & Density Focus chain AD [auth D] Focus chain AF [auth b] Focus chain AG [auth c] Focus chain BF [auth b] Focus chain BG [auth c] Focus chain CB [auth B] Focus chain CF [auth b] Focus chain CG [auth c] Focus chain DB [auth B] Focus chain DC [auth C] Focus chain DD [auth D] Focus chain DF [auth b] Focus chain DG [auth c] Focus chain EB [auth B] Focus chain EC [auth C] Focus chain ED [auth D] Focus chain EF [auth b] Focus chain EG [auth c] Focus chain FB [auth B] Focus chain FC [auth C] Focus chain FF [auth b] Focus chain FG [auth c] Focus chain GB [auth B] Focus chain GC [auth C] Focus chain GF [auth b] Focus chain GG [auth c] Focus chain HB [auth B] Focus chain HC [auth C] Focus chain HF [auth b] Focus chain HG [auth c] Focus chain IB [auth B] Focus chain IC [auth C] Focus chain IF [auth b] Focus chain IG [auth c] Focus chain JB [auth B] Focus chain JC [auth C] Focus chain JF [auth b] Focus chain JG [auth c] Focus chain KB [auth B] Focus chain KC [auth C] Focus chain KF [auth b] Focus chain LB [auth B] Focus chain LC [auth C] Focus chain LF [auth b] Focus chain MB [auth B] Focus chain MC [auth C] Focus chain MF [auth b] Focus chain NB [auth B] Focus chain NC [auth C] Focus chain NE [auth a] Focus chain NF [auth b] Focus chain OB [auth B] Focus chain OC [auth C] Focus chain OE [auth a] Focus chain OF [auth b] Focus chain PB [auth B] Focus chain PC [auth C] Focus chain QB [auth B] Focus chain QE [auth a] Focus chain RB [auth B] Focus chain SA [auth A] Focus chain TA [auth A] Focus chain UG [auth d] Focus chain VA [auth A] Focus chain XF [auth c] Focus chain XG [auth d] Focus chain YF [auth c] Focus chain YG [auth d] Focus chain ZE [auth b] Focus chain ZF [auth c]
PHO Query on PHO Download Ideal Coordinates CCD File SDF format, chain BD [auth D] SDF format, chain PE [auth a] SDF format, chain UA [auth A] SDF format, chain VG [auth d] MOL2 format, chain BD [auth D] MOL2 format, chain PE [auth a] MOL2 format, chain UA [auth A] MOL2 format, chain VG [auth d] mmCIF format, chain BD [auth D] mmCIF format, chain PE [auth a] mmCIF format, chain UA [auth A] mmCIF format, chain VG [auth d]	BD [auth D], PE [auth a], UA [auth A], VG [auth d]	PHEOPHYTIN A C₅₅ H₇₄ N₄ O₅ CQIKWXUXPNUNDV-RCBXBCQGSA-N		Interactions Focus chain BD [auth D] Focus chain PE [auth a] Focus chain UA [auth A] Focus chain VG [auth d] Interactions & Density Focus chain BD [auth D] Focus chain PE [auth a] Focus chain UA [auth A] Focus chain VG [auth d]
SQD Query on SQD Download Ideal Coordinates CCD File SDF format, chain AE [auth L] SDF format, chain KH [auth f] SDF format, chain QD [auth F] SDF format, chain UE [auth a] SDF format, chain VB [auth B] SDF format, chain XA [auth A] SDF format, chain ZA [auth A] SDF format, chain SE [auth a] MOL2 format, chain AE [auth L] MOL2 format, chain KH [auth f] MOL2 format, chain QD [auth F] MOL2 format, chain UE [auth a] MOL2 format, chain VB [auth B] MOL2 format, chain XA [auth A] MOL2 format, chain ZA [auth A] MOL2 format, chain SE [auth a] mmCIF format, chain AE [auth L] mmCIF format, chain KH [auth f] mmCIF format, chain QD [auth F] mmCIF format, chain UE [auth a] mmCIF format, chain VB [auth B] mmCIF format, chain XA [auth A] mmCIF format, chain ZA [auth A] mmCIF format, chain SE [auth a]	AE [auth L] KH [auth f] QD [auth F] SE [auth a] UE [auth a] AE [auth L], KH [auth f], QD [auth F], SE [auth a], UE [auth a], VB [auth B], XA [auth A], ZA [auth A]	1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL C₄₁ H₇₈ O₁₂ S RVUUQPKXGDTQPG-JUDHQOGESA-N		Interactions Focus chain AE [auth L] Focus chain KH [auth f] Focus chain QD [auth F] Focus chain SE [auth a] Focus chain UE [auth a] Focus chain VB [auth B] Focus chain XA [auth A] Focus chain ZA [auth A] Interactions & Density Focus chain AE [auth L] Focus chain KH [auth f] Focus chain QD [auth F] Focus chain SE [auth a] Focus chain UE [auth a] Focus chain VB [auth B] Focus chain XA [auth A] Focus chain ZA [auth A]
LMG Query on LMG Download Ideal Coordinates CCD File SDF format, chain CC [auth C] SDF format, chain EH [auth d] SDF format, chain PG [auth c] SDF format, chain SF [auth b] SDF format, chain VC [auth C] SDF format, chain WB [auth B] SDF format, chain WF [auth c] SDF format, chain KD [auth D] SDF format, chain SG [auth c] SDF format, chain YC [auth C] MOL2 format, chain CC [auth C] MOL2 format, chain EH [auth d] MOL2 format, chain PG [auth c] MOL2 format, chain SF [auth b] MOL2 format, chain VC [auth C] MOL2 format, chain WB [auth B] MOL2 format, chain WF [auth c] MOL2 format, chain KD [auth D] MOL2 format, chain SG [auth c] MOL2 format, chain YC [auth C] mmCIF format, chain CC [auth C] mmCIF format, chain EH [auth d] mmCIF format, chain PG [auth c] mmCIF format, chain SF [auth b] mmCIF format, chain VC [auth C] mmCIF format, chain WB [auth B] mmCIF format, chain WF [auth c] mmCIF format, chain KD [auth D] mmCIF format, chain SG [auth c] mmCIF format, chain YC [auth C]	CC [auth C] EH [auth d] KD [auth D] PG [auth c] SF [auth b] CC [auth C], EH [auth d], KD [auth D], PG [auth c], SF [auth b], SG [auth c], VC [auth C], WB [auth B], WF [auth c], YC [auth C]	1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE C₄₅ H₈₆ O₁₀ DCLTVZLYPPIIID-CVELTQQQSA-N		Interactions Focus chain CC [auth C] Focus chain EH [auth d] Focus chain KD [auth D] Focus chain PG [auth c] Focus chain SF [auth b] Focus chain SG [auth c] Focus chain VC [auth C] Focus chain WB [auth B] Focus chain WF [auth c] Focus chain YC [auth C] Interactions & Density Focus chain CC [auth C] Focus chain EH [auth d] Focus chain KD [auth D] Focus chain PG [auth c] Focus chain SF [auth b] Focus chain SG [auth c] Focus chain VC [auth C] Focus chain WB [auth B] Focus chain WF [auth c] Focus chain YC [auth C]
PL9 Query on PL9 Download Ideal Coordinates CCD File SDF format, chain AH [auth d] SDF format, chain GD [auth D] SDF format, chain TE [auth a] SDF format, chain YA [auth A] MOL2 format, chain AH [auth d] MOL2 format, chain GD [auth D] MOL2 format, chain TE [auth a] MOL2 format, chain YA [auth A] mmCIF format, chain AH [auth d] mmCIF format, chain GD [auth D] mmCIF format, chain TE [auth a] mmCIF format, chain YA [auth A]	AH [auth d], GD [auth D], TE [auth a], YA [auth A]	2,3-DIMETHYL-5-(3,7,11,15,19,23,27,31,35-NONAMETHYL-2,6,10,14,18,22,26,30,34-HEXATRIACONTANONAENYL-2,5-CYCLOHEXADIENE-1,4-DIONE-2,3-DIMETHYL-5-SOLANESYL-1,4-BENZOQUINONE C₅₃ H₈₀ O₂ FKUYMLZIRPABFK-UHFFFAOYSA-N		Interactions Focus chain AH [auth d] Focus chain GD [auth D] Focus chain TE [auth a] Focus chain YA [auth A] Interactions & Density Focus chain AH [auth d] Focus chain GD [auth D] Focus chain TE [auth a] Focus chain YA [auth A]
LHG Query on LHG Download Ideal Coordinates CCD File SDF format, chain BH [auth d] SDF format, chain CH [auth d] SDF format, chain DH [auth d] SDF format, chain HH [auth e] SDF format, chain ID [auth D] SDF format, chain JD [auth D] SDF format, chain ND [auth E] SDF format, chain ZD [auth L] SDF format, chain HD [auth D] SDF format, chain TH [auth l] MOL2 format, chain BH [auth d] MOL2 format, chain CH [auth d] MOL2 format, chain DH [auth d] MOL2 format, chain HH [auth e] MOL2 format, chain ID [auth D] MOL2 format, chain JD [auth D] MOL2 format, chain ND [auth E] MOL2 format, chain ZD [auth L] MOL2 format, chain HD [auth D] MOL2 format, chain TH [auth l] mmCIF format, chain BH [auth d] mmCIF format, chain CH [auth d] mmCIF format, chain DH [auth d] mmCIF format, chain HH [auth e] mmCIF format, chain ID [auth D] mmCIF format, chain JD [auth D] mmCIF format, chain ND [auth E] mmCIF format, chain ZD [auth L] mmCIF format, chain HD [auth D] mmCIF format, chain TH [auth l]	BH [auth d] CH [auth d] DH [auth d] HD [auth D] HH [auth e] BH [auth d], CH [auth d], DH [auth d], HD [auth D], HH [auth e], ID [auth D], JD [auth D], ND [auth E], TH [auth l], ZD [auth L]	1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE C₃₈ H₇₅ O₁₀ P BIABMEZBCHDPBV-MPQUPPDSSA-N		Interactions Focus chain BH [auth d] Focus chain CH [auth d] Focus chain DH [auth d] Focus chain HD [auth D] Focus chain HH [auth e] Focus chain ID [auth D] Focus chain JD [auth D] Focus chain ND [auth E] Focus chain TH [auth l] Focus chain ZD [auth L] Interactions & Density Focus chain BH [auth d] Focus chain CH [auth d] Focus chain DH [auth d] Focus chain HD [auth D] Focus chain HH [auth e] Focus chain ID [auth D] Focus chain JD [auth D] Focus chain ND [auth E] Focus chain TH [auth l] Focus chain ZD [auth L]
HEC Query on HEC Download Ideal Coordinates CCD File SDF format, chain FE [auth V] SDF format, chain YH [auth v] MOL2 format, chain FE [auth V] MOL2 format, chain YH [auth v] mmCIF format, chain FE [auth V] mmCIF format, chain YH [auth v]	FE [auth V], YH [auth v]	HEME C C₃₄ H₃₄ Fe N₄ O₄ HXQIYSLZKNYNMH-LJNAALQVSA-N		Interactions Focus chain FE [auth V] Focus chain YH [auth v] Interactions & Density Focus chain FE [auth V] Focus chain YH [auth v]
HEM Query on HEM Download Ideal Coordinates CCD File SDF format, chain JH [auth e] SDF format, chain PD [auth E] MOL2 format, chain JH [auth e] MOL2 format, chain PD [auth E] mmCIF format, chain JH [auth e] mmCIF format, chain PD [auth E]	JH [auth e], PD [auth E]	PROTOPORPHYRIN IX CONTAINING FE C₃₄ H₃₂ Fe N₄ O₄ KABFMIBPWCXCRK-RGGAHWMASA-L		Interactions Focus chain JH [auth e] Focus chain PD [auth E] Interactions & Density Focus chain JH [auth e] Focus chain PD [auth E]
RRX Query on RRX Download Ideal Coordinates CCD File SDF format, chain GE [auth X] SDF format, chain ZH [auth x] MOL2 format, chain GE [auth X] MOL2 format, chain ZH [auth x] mmCIF format, chain GE [auth X] mmCIF format, chain ZH [auth x]	GE [auth X], ZH [auth x]	(3R)-beta,beta-caroten-3-ol C₄₀ H₅₆ O DMASLKHVQRHNES-FKKUPVFPSA-N		Interactions Focus chain GE [auth X] Focus chain ZH [auth x] Interactions & Density Focus chain GE [auth X] Focus chain ZH [auth x]
BCR Query on BCR Download Ideal Coordinates CCD File SDF format, chain FD [auth D] SDF format, chain KG [auth c] SDF format, chain LG [auth c] SDF format, chain PF [auth b] SDF format, chain QC [auth C] SDF format, chain QF [auth b] SDF format, chain RC [auth C] SDF format, chain RE [auth a] SDF format, chain RF [auth b] SDF format, chain RG [auth c] SDF format, chain RH [auth j] SDF format, chain SB [auth B] SDF format, chain TB [auth B] SDF format, chain UB [auth B] SDF format, chain WA [auth A] SDF format, chain XC [auth C] SDF format, chain XD [auth J] SDF format, chain ZG [auth d] SDF format, chain DE [auth T] SDF format, chain XH [auth t] MOL2 format, chain FD [auth D] MOL2 format, chain KG [auth c] MOL2 format, chain LG [auth c] MOL2 format, chain PF [auth b] MOL2 format, chain QC [auth C] MOL2 format, chain QF [auth b] MOL2 format, chain RC [auth C] MOL2 format, chain RE [auth a] MOL2 format, chain RF [auth b] MOL2 format, chain RG [auth c] MOL2 format, chain RH [auth j] MOL2 format, chain SB [auth B] MOL2 format, chain TB [auth B] MOL2 format, chain UB [auth B] MOL2 format, chain WA [auth A] MOL2 format, chain XC [auth C] MOL2 format, chain XD [auth J] MOL2 format, chain ZG [auth d] MOL2 format, chain DE [auth T] MOL2 format, chain XH [auth t] mmCIF format, chain FD [auth D] mmCIF format, chain KG [auth c] mmCIF format, chain LG [auth c] mmCIF format, chain PF [auth b] mmCIF format, chain QC [auth C] mmCIF format, chain QF [auth b] mmCIF format, chain RC [auth C] mmCIF format, chain RE [auth a] mmCIF format, chain RF [auth b] mmCIF format, chain RG [auth c] mmCIF format, chain RH [auth j] mmCIF format, chain SB [auth B] mmCIF format, chain TB [auth B] mmCIF format, chain UB [auth B] mmCIF format, chain WA [auth A] mmCIF format, chain XC [auth C] mmCIF format, chain XD [auth J] mmCIF format, chain ZG [auth d] mmCIF format, chain DE [auth T] mmCIF format, chain XH [auth t]	DE [auth T] FD [auth D] KG [auth c] LG [auth c] PF [auth b] DE [auth T], FD [auth D], KG [auth c], LG [auth c], PF [auth b], QC [auth C], QF [auth b], RC [auth C], RE [auth a], RF [auth b], RG [auth c], RH [auth j], SB [auth B], TB [auth B], UB [auth B], WA [auth A], XC [auth C], XD [auth J], XH [auth t], ZG [auth d]	BETA-CAROTENE C₄₀ H₅₆ OENHQHLEOONYIE-JLTXGRSLSA-N		Interactions Focus chain DE [auth T] Focus chain FD [auth D] Focus chain KG [auth c] Focus chain LG [auth c] Focus chain PF [auth b] Focus chain QC [auth C] Focus chain QF [auth b] Focus chain RC [auth C] Focus chain RE [auth a] Focus chain RF [auth b] Focus chain RG [auth c] Focus chain RH [auth j] Focus chain SB [auth B] Focus chain TB [auth B] Focus chain UB [auth B] Focus chain WA [auth A] Focus chain XC [auth C] Focus chain XD [auth J] Focus chain XH [auth t] Focus chain ZG [auth d] Interactions & Density Focus chain DE [auth T] Focus chain FD [auth D] Focus chain KG [auth c] Focus chain LG [auth c] Focus chain PF [auth b] Focus chain QC [auth C] Focus chain QF [auth b] Focus chain RC [auth C] Focus chain RE [auth a] Focus chain RF [auth b] Focus chain RG [auth c] Focus chain RH [auth j] Focus chain SB [auth B] Focus chain TB [auth B] Focus chain UB [auth B] Focus chain WA [auth A] Focus chain XC [auth C] Focus chain XD [auth J] Focus chain XH [auth t] Focus chain ZG [auth d]
LMT Query on LMT Download Ideal Coordinates CCD File SDF format, chain BE [auth M] SDF format, chain BI [auth z] SDF format, chain IE [auth Z] SDF format, chain QG [auth c] SDF format, chain VD [auth J] SDF format, chain VH [auth m] SDF format, chain WC [auth C] SDF format, chain PH [auth j] MOL2 format, chain BE [auth M] MOL2 format, chain BI [auth z] MOL2 format, chain IE [auth Z] MOL2 format, chain QG [auth c] MOL2 format, chain VD [auth J] MOL2 format, chain VH [auth m] MOL2 format, chain WC [auth C] MOL2 format, chain PH [auth j] mmCIF format, chain BE [auth M] mmCIF format, chain BI [auth z] mmCIF format, chain IE [auth Z] mmCIF format, chain QG [auth c] mmCIF format, chain VD [auth J] mmCIF format, chain VH [auth m] mmCIF format, chain WC [auth C] mmCIF format, chain PH [auth j]	BE [auth M] BI [auth z] IE [auth Z] PH [auth j] QG [auth c] BE [auth M], BI [auth z], IE [auth Z], PH [auth j], QG [auth c], VD [auth J], VH [auth m], WC [auth C]	DODECYL-BETA-D-MALTOSIDE C₂₄ H₄₆ O₁₁ NLEBIOOXCVAHBD-QKMCSOCLSA-N		Interactions Focus chain BE [auth M] Focus chain BI [auth z] Focus chain IE [auth Z] Focus chain PH [auth j] Focus chain QG [auth c] Focus chain VD [auth J] Focus chain VH [auth m] Focus chain WC [auth C] Interactions & Density Focus chain BE [auth M] Focus chain BI [auth z] Focus chain IE [auth Z] Focus chain PH [auth j] Focus chain QG [auth c] Focus chain VD [auth J] Focus chain VH [auth m] Focus chain WC [auth C]
OEX Query on OEX Download Ideal Coordinates CCD File SDF format, chain JE [auth a] SDF format, chain OA [auth A] MOL2 format, chain JE [auth a] MOL2 format, chain OA [auth A] mmCIF format, chain JE [auth a] mmCIF format, chain OA [auth A]	JE [auth a], OA [auth A]	CA-MN4-O5 CLUSTER Ca Mn₄ O₅ SEXWDHMBWJEXOJ-UHFFFAOYSA-N		Interactions Focus chain JE [auth a] Focus chain OA [auth A] Interactions & Density Focus chain JE [auth a] Focus chain OA [auth A]
BCT Query on BCT Download Ideal Coordinates CCD File SDF format, chain CD [auth D] SDF format, chain WG [auth d] MOL2 format, chain CD [auth D] MOL2 format, chain WG [auth d] mmCIF format, chain CD [auth D] mmCIF format, chain WG [auth d]	CD [auth D], WG [auth d]	BICARBONATE ION C H O₃ BVKZGUZCCUSVTD-UHFFFAOYSA-M		Interactions Focus chain CD [auth D] Focus chain WG [auth d] Interactions & Density Focus chain CD [auth D] Focus chain WG [auth d]
FE2 Query on FE2 Download Ideal Coordinates CCD File SDF format, chain KE [auth a] SDF format, chain PA [auth A] MOL2 format, chain KE [auth a] MOL2 format, chain PA [auth A] mmCIF format, chain KE [auth a] mmCIF format, chain PA [auth A]	KE [auth a], PA [auth A]	FE (II) ION Fe CWYNVVGOOAEACU-UHFFFAOYSA-N		Interactions Focus chain KE [auth a] Focus chain PA [auth A] Interactions & Density Focus chain KE [auth a] Focus chain PA [auth A]
CL Query on CL Download Ideal Coordinates CCD File SDF format, chain LE [auth a] SDF format, chain QA [auth A] SDF format, chain RA [auth A] SDF format, chain ME [auth a] MOL2 format, chain LE [auth a] MOL2 format, chain QA [auth A] MOL2 format, chain RA [auth A] MOL2 format, chain ME [auth a] mmCIF format, chain LE [auth a] mmCIF format, chain QA [auth A] mmCIF format, chain RA [auth A] mmCIF format, chain ME [auth a]	LE [auth a], ME [auth a], QA [auth A], RA [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain LE [auth a] Focus chain ME [auth a] Focus chain QA [auth A] Focus chain RA [auth A] Interactions & Density Focus chain LE [auth a] Focus chain ME [auth a] Focus chain QA [auth A] Focus chain RA [auth A]
MG Query on MG Download Ideal Coordinates CCD File SDF format, chain OH [auth j] SDF format, chain UD [auth J] MOL2 format, chain OH [auth j] MOL2 format, chain UD [auth J] mmCIF format, chain OH [auth j] mmCIF format, chain UD [auth J]	OH [auth j], UD [auth J]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain OH [auth j] Focus chain UD [auth J] Interactions & Density Focus chain OH [auth j] Focus chain UD [auth J]
UNL Query on UNL Download Ideal Coordinates CCD File	AB [auth A] AC [auth B] AI [auth x] BB [auth A] BC [auth B] AB [auth A], AC [auth B], AI [auth x], BB [auth A], BC [auth B], CE [auth M], EE [auth T], FH [auth d], GH [auth d], HE [auth X], IH [auth e], LD [auth D], MD [auth D], MH [auth i], NH [auth i], OD [auth E], QH [auth j], SD [auth I], SH [auth k], TD [auth I], TF [auth b], TG [auth c], UF [auth b], UH [auth m], VE [auth a], VF [auth b], WD [auth J], WE [auth a], WH [auth t], XB [auth B], XE [auth b], YB [auth B], YD [auth K], YE [auth b], ZB [auth B], ZC [auth C]	Unknown ligand JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain AB [auth A] Focus chain AC [auth B] Focus chain AI [auth x] Focus chain BB [auth A] Focus chain BC [auth B] Focus chain CE [auth M] Focus chain EE [auth T] Focus chain FH [auth d] Focus chain GH [auth d] Focus chain HE [auth X] Focus chain IH [auth e] Focus chain LD [auth D] Focus chain MD [auth D] Focus chain MH [auth i] Focus chain NH [auth i] Focus chain OD [auth E] Focus chain QH [auth j] Focus chain SD [auth I] Focus chain SH [auth k] Focus chain TD [auth I] Focus chain TF [auth b] Focus chain TG [auth c] Focus chain UF [auth b] Focus chain UH [auth m] Focus chain VE [auth a] Focus chain VF [auth b] Focus chain WD [auth J] Focus chain WE [auth a] Focus chain WH [auth t] Focus chain XB [auth B] Focus chain XE [auth b] Focus chain YB [auth B] Focus chain YD [auth K] Focus chain YE [auth b] Focus chain ZB [auth B] Focus chain ZC [auth C] Interactions & Density Focus chain AB [auth A] Focus chain AC [auth B] Focus chain AI [auth x] Focus chain BB [auth A] Focus chain BC [auth B] Focus chain CE [auth M] Focus chain EE [auth T] Focus chain FH [auth d] Focus chain GH [auth d] Focus chain HE [auth X] Focus chain IH [auth e] Focus chain LD [auth D] Focus chain MD [auth D] Focus chain MH [auth i] Focus chain NH [auth i] Focus chain OD [auth E] Focus chain QH [auth j] Focus chain SD [auth I] Focus chain SH [auth k] Focus chain TD [auth I] Focus chain TF [auth b] Focus chain TG [auth c] Focus chain UF [auth b] Focus chain UH [auth m] Focus chain VE [auth a] Focus chain VF [auth b] Focus chain WD [auth J] Focus chain WE [auth a] Focus chain WH [auth t] Focus chain XB [auth B] Focus chain XE [auth b] Focus chain YB [auth B] Focus chain YD [auth K] Focus chain YE [auth b] Focus chain ZB [auth B] Focus chain ZC [auth C]

Modified Residues 2 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
HSK Query on HSK	D, X [auth d]	L-PEPTIDE LINKING	C₆ H₉ N₃ O₃		HIS
FME Query on FME	BA [auth i], H [auth I]	L-PEPTIDE LINKING	C₆ H₁₁ N O₃ S		MET
