7R21

elongated Cascade complex from type I-A CRISPR-Cas system

• PDB DOI: https://doi.org/10.2210/pdb7R21/pdb
• EM Map EMD-14244: EMDB EMDataResource
• NAKB: 7R21

• Classification: ANTIVIRAL PROTEIN
• Organism(s): Pyrococcus furiosus DSM 3638, Escherichia coli
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2022-02-04 Released: 2023-08-16
• Deposition Author(s): Hu, C., Ni, D., Nam, K.H., Stahlberg, H., Terns, M., Ke, A.
• Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), Swiss National Science Foundation

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.10 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Structural snapshots for an atypic type I CRISPR-Cas system

Ni, D., Hu, C., Nam, K.H., Terns, M., Stahlberg, H., Ke, A.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 18-mer - A10B7C1

Local Symmetry: Helical - H  (Explore in 3D)
Local Stoichiometry: Homo 10-mer - A10 Local Symmetry: Helical - H  (Explore in 3D)
Local Stoichiometry: Hetero 14-mer - A7B7

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: microscopy

Macromolecule Content

• Total Structure Weight: 504.48 kDa
• Atom Count: 34,980
• Modelled Residue Count: 4,379
• Deposited Residue Count: 4,434
• Unique protein chains: 3
• Unique nucleic acid chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

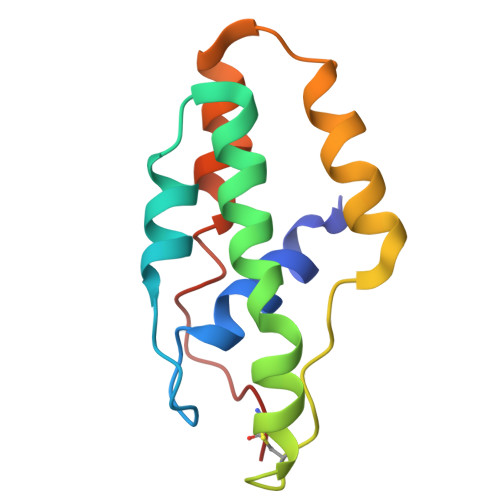

Cas11a	A, B [auth C], C [auth D], D [auth E], E [auth F], F [auth G], G [auth H]	108	Pyrococcus furiosus DSM 3638	Mutation(s): 0  Gene Names: PF0643
UniProt
Find proteins for Q8U332 (Pyrococcus furiosus (strain ATCC 43587 / DSM 3638 / JCM 8422 / Vc1)) Explore Q8U332  Go to UniProtKB:  Q8U332

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Cas7a	H [auth I], I [auth J], J [auth K], K [auth L], L [auth M], M [auth N], N [auth O], P [auth Q], R [auth S], S [auth T]	336	Pyrococcus furiosus DSM 3638	Mutation(s): 0  Gene Names: PF0642
UniProt
Find proteins for Q8U333 (Pyrococcus furiosus (strain ATCC 43587 / DSM 3638 / JCM 8422 / Vc1)) Explore Q8U333  Go to UniProtKB:  Q8U333

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

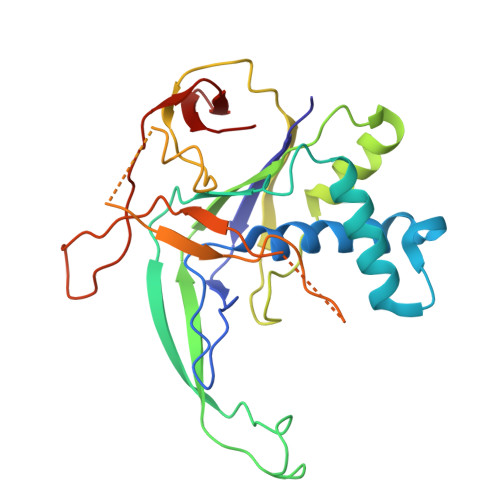

Type I-A CRISPR-associated protein Cas5	O [auth P]	256	Pyrococcus furiosus DSM 3638	Mutation(s): 0  Gene Names: cas5a, PFDSM3638_03200
UniProt
Find proteins for A0A5C0XNV9 (Pyrococcus furiosus (strain ATCC 43587 / DSM 3638 / JCM 8422 / Vc1)) Explore A0A5C0XNV9  Go to UniProtKB:  A0A5C0XNV9

Entity ID: 4
Molecule	Chains	Length	Organism	Image

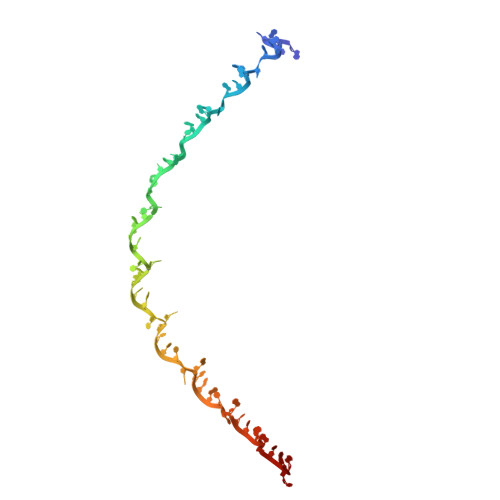

CrRNA (62-MER)	Q [auth R]	62	Escherichia coli

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.10 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2023-08-16
Deposition Author(s): Hu, C., Ni, D., Nam, K.H., Stahlberg, H., Terns, M., Ke, A.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	GM118117
Swiss National Science Foundation	Switzerland	(NCCR) TransCure
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	GM118160

Revision History

• Version 1.0: 2023-08-16
  Type: Initial release
