7OBW

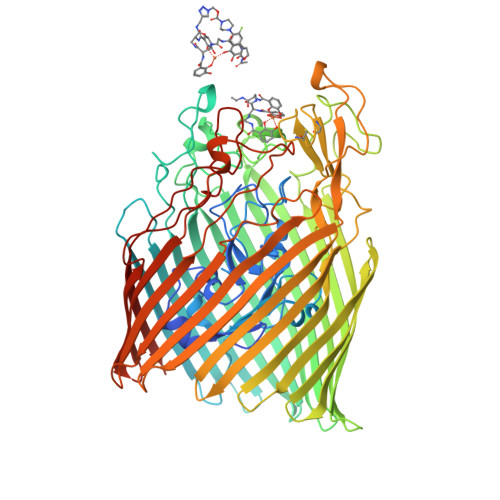

Crystal structure of the ferric enterobactin receptor (PfeA) from Pseudomonas aeruginosa in complex with TCV-L6


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.66 Å
  • R-Value Free: 0.277
  • R-Value Work: 0.231

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Hijacking of the Enterobactin Pathway by a Synthetic Catechol Vector Designed for Oxazolidinone Antibiotic Delivery in Pseudomonas aeruginosa .

Moynie, L.Hoegy, F.Milenkovic, S.Munier, M.Paulen, A.Gasser, V.Faucon, A.L.Zill, N.Naismith, J.H.Ceccarelli, M.Schalk, I.J.Mislin, G.L.A.

(2022) ACS Infect Dis 8: 1894-1904

  • DOI: https://doi.org/10.1021/acsinfecdis.2c00202
  • Primary Citation of Related Structures:
    5NC3, 6Y47, 6YY5, 6Z2N, 6Z33, 7OBW

  • PubMed Abstract:

    Enterobactin (ENT) is a tris-catechol siderophore used to acquire iron by multiple bacterial species. These ENT-dependent iron uptake systems have often been considered as potential gates in the bacterial envelope through which one can shuttle antibiotics (Trojan horse strategy). In practice, siderophore analogues containing catechol moieties have shown promise as vectors to which antibiotics may be attached. Bis- and tris-catechol vectors (BCVs and TCVs, respectively) were shown using structural biology and molecular modeling to mimic ENT binding to the outer membrane transporter PfeA in Pseudomonas aeruginosa . TCV but not BCV appears to cross the outer membrane via PfeA when linked to an antibiotic (linezolid). TCV is therefore a promising vector for Trojan horse strategies against P. aeruginosa , confirming the ENT-dependent iron uptake system as a gate to transport antibiotics into P. aeruginosa cells.


  • Organizational Affiliation

    The Rosalind Franklin Institute, Harwell Campus, Oxfordshire OX11 0QS, U.K.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Ferric enterobactin receptorA [auth AAA]721Pseudomonas aeruginosa PAO1Mutation(s): 0
Gene Names: pfeAPA2688
Membrane Entity: Yes
UniProt
Find proteins for Q05098 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1))
Explore Q05098
Go to UniProtKB:  Q05098
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ05098
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
V82 (Subject of Investigation/LOI)
Query on V82

Download Ideal Coordinates CCD File
B [auth AAA],
C [auth AAA]
[4-[[[(2~{S})-2-[[2,3-bis(oxidanyl)phenyl]carbonylamino]-3-[[(2~{S})-2-[[2,3-bis(oxidanyl)phenyl]carbonylamino]-3-[2-[[2,3-bis(oxidanyl)phenyl]carbonylamino]ethanoylamino]propanoyl]amino]propanoyl]amino]methyl]-1,2,3-triazol-1-yl]methyl 4-[4-[(5~{S})-5-(acetamidomethyl)-2-oxidanylidene-1,3-oxazolidin-3-yl]-2-fluoranyl-phenyl]piperazine-1-carboxylate
C50 H54 F N13 O17
BNEIHKWYSZOFPI-LCFCVFAESA-N
FE (Subject of Investigation/LOI)
Query on FE

Download Ideal Coordinates CCD File
D [auth AAA],
E [auth AAA]
FE (III) ION
Fe
VTLYFUHAOXGGBS-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.66 Å
  • R-Value Free: 0.277
  • R-Value Work: 0.231
  • Space Group: P 21 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 87.414α = 90
b = 157.114β = 90
c = 77.84γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
DIALSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
European Communitys Seventh Framework Programme--

Revision History  (Full details and data files)

  • Version 1.0: 2021-08-04
    Type: Initial release
  • Version 1.1: 2022-08-17
    Changes: Database references, Derived calculations
  • Version 1.2: 2022-09-21
    Changes: Database references
  • Version 1.3: 2024-01-31
    Changes: Data collection, Refinement description
