7K0V

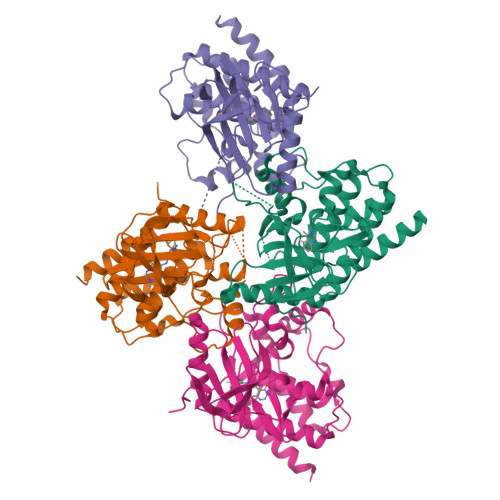

Crystal structure of bRaf in complex with inhibitor GNE-0749


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.93 Å
  • R-Value Free: 0.230
  • R-Value Work: 0.184
  • R-Value Observed: 0.187

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Targeting KRAS Mutant Cancers via Combination Treatment: Discovery of a 5-Fluoro-4-(3 H )-quinazolinone Aryl Urea pan-RAF Kinase Inhibitor.

Huestis, M.P.Dela Cruz, D.DiPasquale, A.G.Durk, M.R.Eigenbrot, C.Gibbons, P.Gobbi, A.Hunsaker, T.L.La, H.Leung, D.H.Liu, W.Malek, S.Merchant, M.Moffat, J.G.Muli, C.S.Orr, C.J.Parr, B.T.Shanahan, F.Sneeringer, C.J.Wang, W.Yen, I.Yin, J.Siu, M.Rudolph, J.

(2021) J Med Chem 64: 3940-3955

  • DOI: https://doi.org/10.1021/acs.jmedchem.0c02085
  • Primary Citation of Related Structures:
    6XLO, 7K0V

  • PubMed Abstract:

    Optimization of a series of aryl urea RAF inhibitors led to the identification of type II pan-RAF inhibitor GNE-0749 ( 7 ), which features a fluoroquinazolinone hinge-binding motif. By minimizing reliance on common polar hinge contacts, this hinge binder allows for a greater contribution of RAF-specific residue interactions, resulting in exquisite kinase selectivity. Strategic substitution of fluorine at the C5 position efficiently masked the adjacent polar NH functionality and increased solubility by impeding a solid-state conformation associated with stronger crystal packing of the molecule. The resulting improvements in permeability and solubility enabled oral dosing of 7 . In vivo evaluation of 7 in combination with the MEK inhibitor cobimetinib demonstrated synergistic pathway inhibition and significant tumor growth inhibition in a KRAS mutant xenograft mouse model.


  • Organizational Affiliation

    Discovery Chemistry, Genentech, Inc., 1 DNA Way, South San Francisco, California 94080, United States.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Non-specific serine/threonine protein kinase
A, B, C, D
288Homo sapiensMutation(s): 0
Gene Names: BRAF
EC: 2.7.11.1
UniProt & NIH Common Fund Data Resources
Find proteins for P15056 (Homo sapiens)
Explore P15056
Go to UniProtKB:  P15056
PHAROS:  P15056
GTEx:  ENSG00000157764
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP15056
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Binding Affinity Annotations
IDSourceBinding Affinity
VQP BindingDB:  7K0V Ki: 0.08 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.93 Å
  • R-Value Free: 0.230
  • R-Value Work: 0.184
  • R-Value Observed: 0.187
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 87.254α = 90
b = 115.354β = 90
c = 119.39γ = 90
Software Package:
Software NamePurpose
Aimlessdata scaling
PHENIXrefinement
PDB_EXTRACTdata extraction
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2021-05-26
    Type: Initial release
  • Version 1.1: 2023-10-18
    Changes: Data collection, Database references, Refinement description
