7G60 | pdb_00007g60

Crystal Structure of rat Autotaxin in complex with (2S)-6-chloro-2-[(6-methylsulfonyl-5,7-dihydropyrrolo[3,4-d]pyrimidin-2-yl)amino]-2,3-dihydro-1H-indene-4-carbonitrile, i.e. SMILES N(c1nc2c(cn1)CN(S(=O)(=O)C)C2)[C@H]1Cc2c(C1)c(cc(c2)Cl)C#N with IC50=0.00218558 microM

PDB DOI: https://doi.org/10.2210/pdb7G60/pdb
Deposition Group: G_1002267 ExploreG_1002267

Classification: HYDROLASE
Organism(s): Rattus norvegicus
Expression System: Homo sapiens
Mutation(s): Yes

Deposited: 2023-06-05 Released: 2024-12-18
Deposition Author(s): Stihle, M., Benz, J., Hunziker, D., Pinard, E., Rudolph, M.G.
Funding Organization(s): F. Hoffmann-La Roche LTD

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.41 Å
R-Value Free:
0.188 (Depositor), 0.188 (DCC)
R-Value Work:
0.163 (Depositor), 0.163 (DCC)
R-Value Observed:
0.164 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal Structure of a rat Autotaxin complex

Hunziker, D., Joachim, S.C., Ullmer, C., Rudolph, M.G.

To be published.

Macromolecule Content

Total Structure Weight: 99.52 kDa
Atom Count: 7,790
Modeled Residue Count: 804
Deposited Residue Count: 846
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

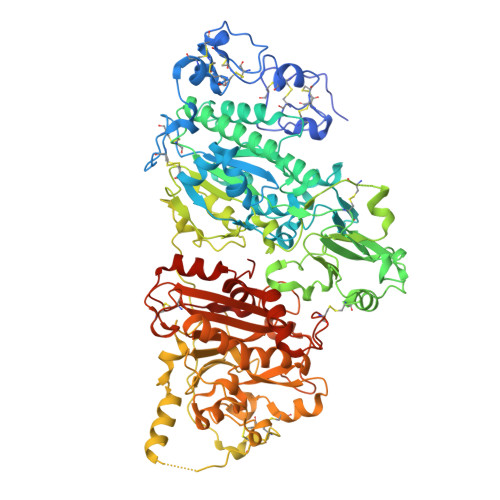

Isoform 2 of Ectonucleotide pyrophosphatase/phosphodiesterase family member 2	A	846	Rattus norvegicus	Mutation(s): 3 Gene Names: Enpp2, Atx, Npps2 EC: 3.1.4.39 (PDB Primary Data), 3.1.4.4 (UniProt)
UniProt
Find proteins for Q64610 (Rattus norvegicus) Explore Q64610 Go to UniProtKB: Q64610
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q64610
Glycosylation
Glycosylation Sites: 1	Glycosylation Focus chain A	Go to GlyGen: Q64610-1
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	B	8		N-Glycosylation	Interactions Focus chain B Interactions & Density Focus chain B

Small Molecules

Ligands 6 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
YFI (Subject of Investigation/LOI) Query on YFI Download Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	(2R)-6-chloro-2-{[6-(methanesulfonyl)-6,7-dihydro-5H-pyrrolo[3,4-d]pyrimidin-2-yl]amino}-2,3-dihydro-1H-indene-4-carbonitrile C₁₇ H₁₆ Cl N₅ O₂ S ODVKNZKFSLCKRF-CQSZACIVSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain I [auth A] MOL2 format, chain I [auth A] mmCIF format, chain I [auth A]	I [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Interactions & Density Focus chain I [auth A]
ACT Query on ACT Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A]	F [auth A], G [auth A], H [auth A]	ACETATE ION C₂ H₃ O₂ QTBSBXVTEAMEQO-UHFFFAOYSA-M		Interactions Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Interactions & Density Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A]
CA Query on CA Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain K [auth A] MOL2 format, chain D [auth A] MOL2 format, chain K [auth A] mmCIF format, chain D [auth A] mmCIF format, chain K [auth A]	D [auth A], K [auth A]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain K [auth A] Interactions & Density Focus chain D [auth A] Focus chain K [auth A]
K Query on K Download Ideal Coordinates CCD File SDF format, chain E [auth A] MOL2 format, chain E [auth A] mmCIF format, chain E [auth A]	E [auth A]	POTASSIUM ION K NPYPAHLBTDXSSS-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Interactions & Density Focus chain E [auth A]
NA Query on NA Download Ideal Coordinates CCD File SDF format, chain J [auth A] MOL2 format, chain J [auth A] mmCIF format, chain J [auth A]	J [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain J [auth A] Interactions & Density Focus chain J [auth A]
