7CFK | pdb_00007cfk

Structure of the CBS domain of the bacterial CNNM/CorC family Mg2+ transporter in complex with the novel inhibitor IGN95a


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.90 Å
  • R-Value Free:
    0.276 (Depositor), 0.280 (DCC)
  • R-Value Work:
    0.210 (Depositor), 0.210 (DCC)
  • R-Value Observed:
    0.216 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Identification and mechanistic analysis of an inhibitor of the CorC Mg 2+ transporter.

Huang, Y.Mu, K.Teng, X.Zhao, Y.Funato, Y.Miki, H.Zhu, W.Xu, Z.Hattori, M.

(2021) iScience 24: 102370-102370

  • DOI: https://doi.org/10.1016/j.isci.2021.102370
  • Primary Citation of Related Structures:
    7CFK

  • PubMed Abstract:

    The CorC/CNNM family of Na + -dependent Mg 2+ transporters is ubiquitously conserved from bacteria to humans. CorC, the bacterial CorC/CNNM family of proteins, is involved in resistance to antibiotic exposure and in the survival of pathogenic microorganisms in their host environment. The CorC/CNNM family proteins possess a cytoplasmic region containing the regulatory ATP-binding site. CorC and CNNM have attracted interest as therapeutic targets, whereas inhibitors targeting the ATP-binding site have not been identified. Here, we performed a virtual screening of CorC by targeting its ATP-binding site, identified a compound named IGN95a with inhibitory effects on ATP binding and Mg 2+ export, and determined the cytoplasmic domain structure in complex with IGN95a. Furthermore, a chemical cross-linking experiment indicated that with ATP bound to the cytoplasmic domain, the conformational equilibrium of CorC was shifted more toward the inward-facing state of the transmembrane domain. In contrast, IGN95a did not induce such a shift.


  • Organizational Affiliation
    • State Key Laboratory of Genetic Engineering, Collaborative Innovation Center of Genetics and Development, Shanghai Key Laboratory of Bioactive Small Molecules, Department of Physiology and Biophysics, School of Life Sciences, Fudan University, 2005 Songhu Road, Yangpu District, Shanghai 200438, China.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

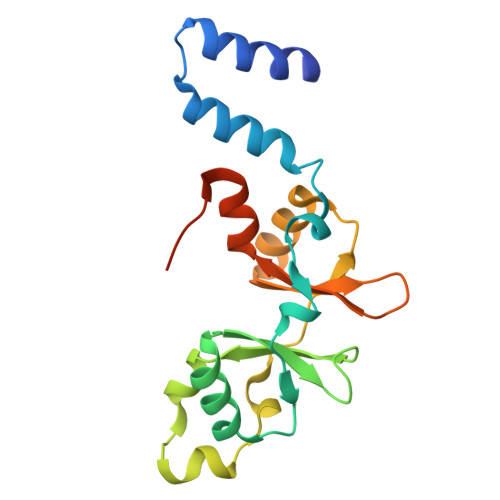

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Hemolysin
A, B
179Thermus parvatiensisMutation(s): 2
Gene Names: AV541_07030
UniProt
Find proteins for A0A109QFA5 (Thermus parvatiensis)
Explore A0A109QFA5
Go to UniProtKB:  A0A109QFA5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A109QFA5
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.90 Å
  • R-Value Free:  0.276 (Depositor), 0.280 (DCC)
  • R-Value Work:  0.210 (Depositor), 0.210 (DCC)
  • R-Value Observed: 0.216 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 91.015α = 90
b = 60.513β = 93.78
c = 82.256γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XDSdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Ministry of Science and Technology (MoST, China)China--

Revision History  (Full details and data files)

  • Version 1.0: 2021-04-21
    Type: Initial release
  • Version 1.1: 2021-05-12
    Changes: Database references
  • Version 1.2: 2023-11-29
    Changes: Data collection, Database references, Refinement description
