7A4B

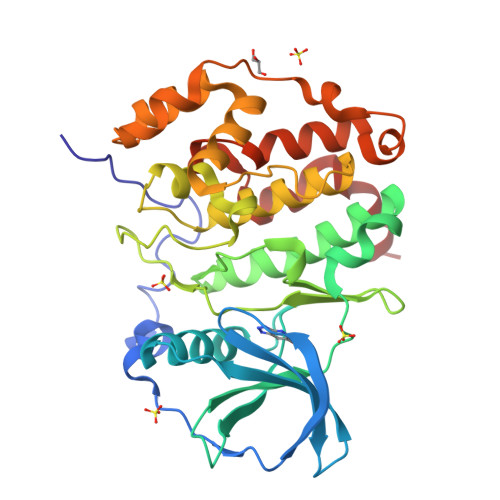

Crystal structure of human protein kinase CK2alpha (CSNK2A1 gene product) in complex with the ATP-competitive inhibitor 5,6-dibromo-1H-triazolo[4,5-b]pyridine


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.06 Å
  • R-Value Free: 0.223
  • R-Value Work: 0.191
  • R-Value Observed: 0.192

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Synthesis, biological properties and structural study of new halogenated azolo[4,5-b]pyridines as inhibitors of CK2 kinase.

Chojnacki, K.Lindenblatt, D.Winska, P.Wielechowska, M.Toelzer, C.Niefind, K.Bretner, M.

(2021) Bioorg Chem 106: 104502-104502

  • DOI: https://doi.org/10.1016/j.bioorg.2020.104502
  • Primary Citation of Related Structures:
    7A1B, 7A1Z, 7A22, 7A2H, 7A49, 7A4B, 7A4C

  • PubMed Abstract:

    The new halogenated 1H-triazolo[4,5-b]pyridines and 1H-imidazo[4,5-b]pyridines were synthesised as analogues of known CK2 inhibitors: 4,5,6,7-tetrabromo-1H-benzotriazole (TBBt) and 4,5,6,7-tetrabromo-1H-benzimidazole (TBBi). Their influence on the activity of recombinant human CK2α, CK2α' and PIM1 kinases was determined. The most active inhibitors were di- and trihalogenated 1H-triazolo[4,5-b]pyridines (4a, 5a and 10a) with IC 50 values 2.56, 3.82 and 3.26 μM respectively for CK2α. Furthermore, effect on viability of cancer cell lines MCF-7 (human breast adenocarcinoma) and CCRF-CEM (T lymphoblast leukemia) of all final compounds was evaluated. Finally, three crystal structures of complexes of CK2α 1-335 with inhibitors 4a, 5a and 10a were obtained. In addition, new protocol was used to obtain high-resolution crystal structures of CK2α' Cys336Ser in complex with four inhibitors (4a, 5a, 5b, 10a).


  • Organizational Affiliation

    Faculty of Chemistry, Warsaw University of Technology, Noakowskiego St. 3, 00-664 Warsaw, Poland. Electronic address: kchojnacki@ch.pw.edu.pl.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Casein kinase II subunit alpha
A, B
335Homo sapiensMutation(s): 0
Gene Names: CSNK2A1CK2A1
EC: 2.7.11.1
UniProt & NIH Common Fund Data Resources
Find proteins for P68400 (Homo sapiens)
Explore P68400
Go to UniProtKB:  P68400
PHAROS:  P68400
GTEx:  ENSG00000101266
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP68400
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
QXW (Subject of Investigation/LOI)
Query on QXW

Download Ideal Coordinates CCD File
D [auth A],
K [auth B]
5,6-dibromo-1H-triazolo[4,5-b]pyridine
C5 H2 Br2 N4
WKRYLZOTKJYHJM-UHFFFAOYSA-N
SO4
Query on SO4

Download Ideal Coordinates CCD File
E [auth A]
F [auth A]
G [auth A]
H [auth A]
I [auth A]
E [auth A],
F [auth A],
G [auth A],
H [auth A],
I [auth A],
L [auth B],
M [auth B],
N [auth B],
O [auth B]
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
GOL
Query on GOL

Download Ideal Coordinates CCD File
C [auth A],
J [auth B]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
QXW Binding MOAD:  7A4B IC50: 2560 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.06 Å
  • R-Value Free: 0.223
  • R-Value Work: 0.191
  • R-Value Observed: 0.192
  • Space Group: P 43 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 127.329α = 90
b = 127.329β = 90
c = 124.884γ = 90
Software Package:
Software NamePurpose
XDSdata reduction
Aimlessdata scaling
PHASERphasing
PHENIXrefinement

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
German Research Foundation (DFG)GermanyNI 643/4-2

Revision History  (Full details and data files)

  • Version 1.0: 2020-12-09
    Type: Initial release
  • Version 1.1: 2020-12-23
    Changes: Database references
  • Version 1.2: 2021-01-13
    Changes: Database references
  • Version 1.3: 2024-01-31
    Changes: Data collection, Database references, Refinement description
