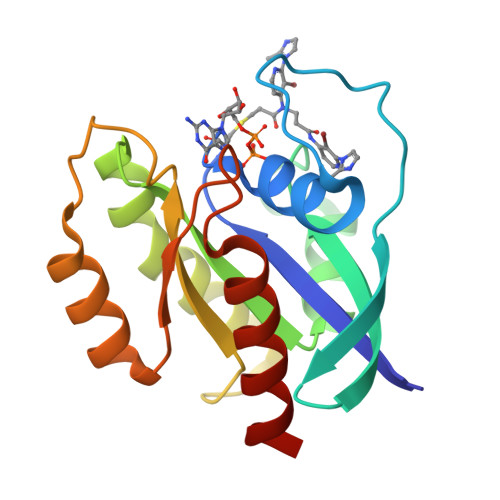

KRASG12C GDP form in complex with Cpd4

Experimental Data Snapshot

  • Resolution: 2.16 Å
  • R-Value Free: 0.208
  • R-Value Work: 0.193

wwPDB Validation   3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.2 of the entry. See complete history


KRAS G12C fragment screening renders new binding pockets.

Mathieu, M.Steier, V.Fassy, F.Delorme, C.Papin, D.Genet, B.Duffieux, F.Bertrand, T.Delarbre, L.Le-Borgne, H.Parent, A.Didier, P.Marquette, J.P.Lowinski, M.Houtmann, J.Lamberton, A.Debussche, L.Alexey, R.

(2022) Small GTPases 13: 225-238

  • DOI: https://doi.org/10.1080/21541248.2021.1979360
  • Primary Citation of Related Structures:
    7A1W, 7A1X, 7A1Y, 7A47

  • PubMed Abstract:

    KRAS genes belong to the most frequently mutated family of oncogenes in cancer. The G12C mutation, found in a third of lung, half of colorectal and pancreatic cancer cases, is believed to be responsible for a substantial number of cancer deaths. For 30 years, KRAS has been the subject of extensive drug-targeting efforts aimed at targeting KRAS protein itself, but also its post-translational modifications, membrane localization, protein-protein interactions and downstream signalling pathways. So far, most KRAS targeting strategies have failed, and there are no KRAS-specific drugs available. However, clinical candidates targeting the KRAS G12C protein have recently been developed. MRTX849 and recently approved Sotorasib are covalent binders targeting the mutated cysteine 12, occupying Switch II pocket.Herein, we describe two fragment screening drug discovery campaigns that led to the identification of binding pockets on the KRAS G12C surface that have not previously been described. One screen focused on non-covalent binders to KRAS G12C, the other on covalent binders.

  • Organizational Affiliation

    Integrated Drug Discovery, Quai Jules Guesde, Vitry Sur Seine Cedex, France.

Find similar proteins by:  (by identity cutoff)  |  3D Structure

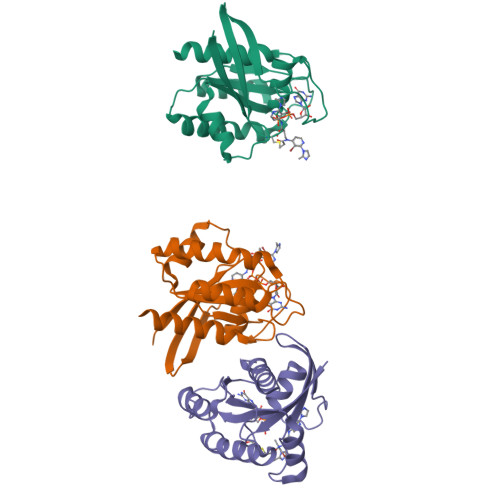

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Isoform 2B of GTPase KRasA,
B [auth C],
C [auth E]
170Homo sapiensMutation(s): 1
UniProt & NIH Common Fund Data Resources
Find proteins for P01116 (Homo sapiens)
Explore P01116
Go to UniProtKB:  P01116
PHAROS:  P01116
GTEx:  ENSG00000133703
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01116
Sequence Annotations
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Resolution: 2.16 Å
  • R-Value Free: 0.208
  • R-Value Work: 0.193
  • Space Group: P 31 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 110.33α = 90
b = 110.33β = 90
c = 116.97γ = 120
Software Package:
Software NamePurpose
XDSdata reduction
Aimlessdata scaling

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2021-10-13
    Type: Initial release
  • Version 1.1: 2022-01-12
    Changes: Database references
  • Version 1.2: 2024-01-31
    Changes: Data collection, Refinement description
