7A28 | pdb_00007a28

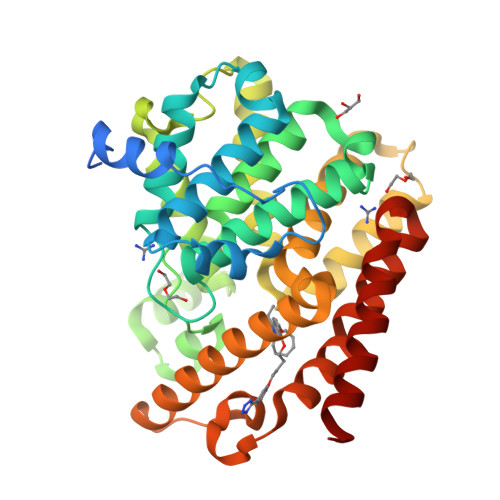

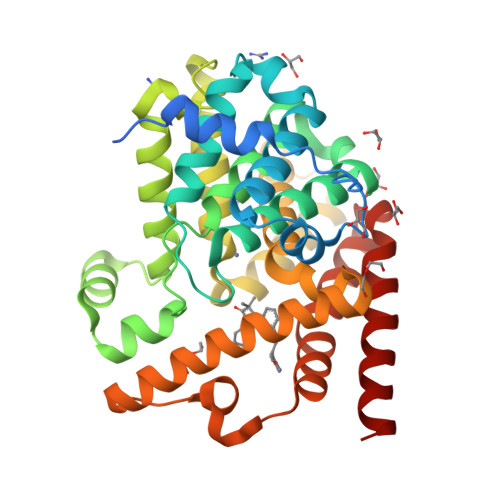

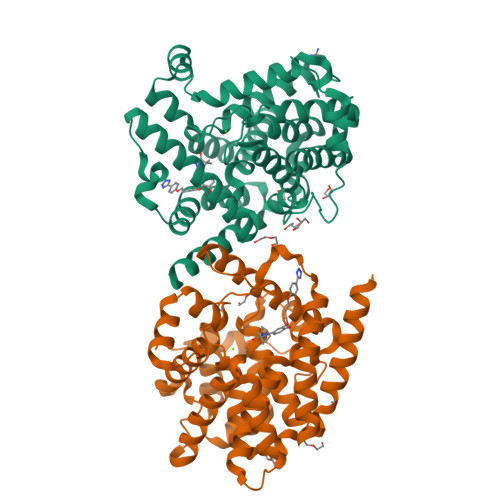

Crystal structure of T. brucei PDE-B1 catalytic domain with inhibitor NPD-617

PDB DOI: https://doi.org/10.2210/pdb7A28/pdb

Classification: HYDROLASE
Organism(s): Trypanosoma brucei
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2020-08-16 Released: 2021-08-25
Deposition Author(s): Singh, A.K., Blaazer, A.R., Zara, L., de Esch, I.J.P., Leurs, R., Brown, D.G.
Funding Organization(s): European Union (EU)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.89 Å
R-Value Free:
0.202 (Depositor), 0.183 (DCC)
R-Value Work:
0.174 (Depositor)
R-Value Observed:
0.176 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.1 of the entry. See complete history.

Literature

Crystal structure of T. brucei PDE-B1 catalytic domain with inhibitor NPD-617

Singh, A.K., Brown, D.G.

To be published.

Macromolecule Content

Total Structure Weight: 83.79 kDa
Atom Count: 5,882
Modeled Residue Count: 665
Deposited Residue Count: 720
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Phosphodiesterase	A, B	360	Trypanosoma brucei	Mutation(s): 0 Gene Names: PDEB1 EC: 3.1.4
UniProt
Find proteins for Q8WQX9 (Trypanosoma brucei) Explore Q8WQX9 Go to UniProtKB: Q8WQX9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8WQX9
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 6 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
QWT (Subject of Investigation/LOI) Query on QWT Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain P [auth B] MOL2 format, chain C [auth A] MOL2 format, chain P [auth B] mmCIF format, chain C [auth A] mmCIF format, chain P [auth B]	C [auth A], P [auth B]	1-cycloheptyl-3-(4-methoxy-3-{4-[4-(1H-1,2,3,4-tetrazol-5-yl)phenoxy]butoxy}phenyl)-4,4-dimethyl-4,5-dihydro-1H-pyrazol-5-one C₃₀ H₃₈ N₆ O₄ JPXAIORZGBCHIB-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain P [auth B] Interactions & Density Focus chain C [auth A] Focus chain P [auth B]
PEG Query on PEG Download:Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain S [auth B] SDF format, chain T [auth B] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain S [auth B] MOL2 format, chain T [auth B] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain S [auth B] mmCIF format, chain T [auth B]	F [auth A], G [auth A], S [auth B], T [auth B]	DI(HYDROXYETHYL)ETHER C₄ H₁₀ O₃ MTHSVFCYNBDYFN-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain G [auth A] Focus chain S [auth B] Focus chain T [auth B] Interactions & Density Focus chain F [auth A] Focus chain G [auth A] Focus chain S [auth B] Focus chain T [auth B]
GOL Query on GOL Download:Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain N [auth A] SDF format, chain O [auth A] SDF format, chain U [auth B] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain N [auth A] MOL2 format, chain O [auth A] MOL2 format, chain U [auth B] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain N [auth A] mmCIF format, chain O [auth A] mmCIF format, chain U [auth B]	H [auth A] I [auth A] J [auth A] N [auth A] O [auth A] H [auth A], I [auth A], J [auth A], N [auth A], O [auth A], U [auth B]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain U [auth B] Interactions & Density Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain U [auth B]
ZN Query on ZN Download:Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain Q [auth B] MOL2 format, chain D [auth A] MOL2 format, chain Q [auth B] mmCIF format, chain D [auth A] mmCIF format, chain Q [auth B]	D [auth A], Q [auth B]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain Q [auth B] Interactions & Density Focus chain D [auth A] Focus chain Q [auth B]
GAI Query on GAI Download:Ideal Coordinates CCD File SDF format, chain K [auth A] SDF format, chain L [auth A] SDF format, chain M [auth A] SDF format, chain V [auth B] SDF format, chain W [auth B] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain M [auth A] MOL2 format, chain V [auth B] MOL2 format, chain W [auth B] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain M [auth A] mmCIF format, chain V [auth B] mmCIF format, chain W [auth B]	K [auth A], L [auth A], M [auth A], V [auth B], W [auth B]	GUANIDINE C H₅ N₃ ZRALSGWEFCBTJO-UHFFFAOYSA-N		Interactions Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain V [auth B] Focus chain W [auth B] Interactions & Density Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain V [auth B] Focus chain W [auth B]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain R [auth B] MOL2 format, chain E [auth A] MOL2 format, chain R [auth B] mmCIF format, chain E [auth A] mmCIF format, chain R [auth B]	E [auth A], R [auth B]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain R [auth B] Interactions & Density Focus chain E [auth A] Focus chain R [auth B]
