 6VPX | pdb_00006vpx

Nanodisc of full-length HIV-1 Envelope glycoprotein clone AMC011 in complex with one PGT151 Fab and three 10E8 Fabs


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 5.00 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Models: experimental
View more details

wwPDB Validation 3D Report Full Report

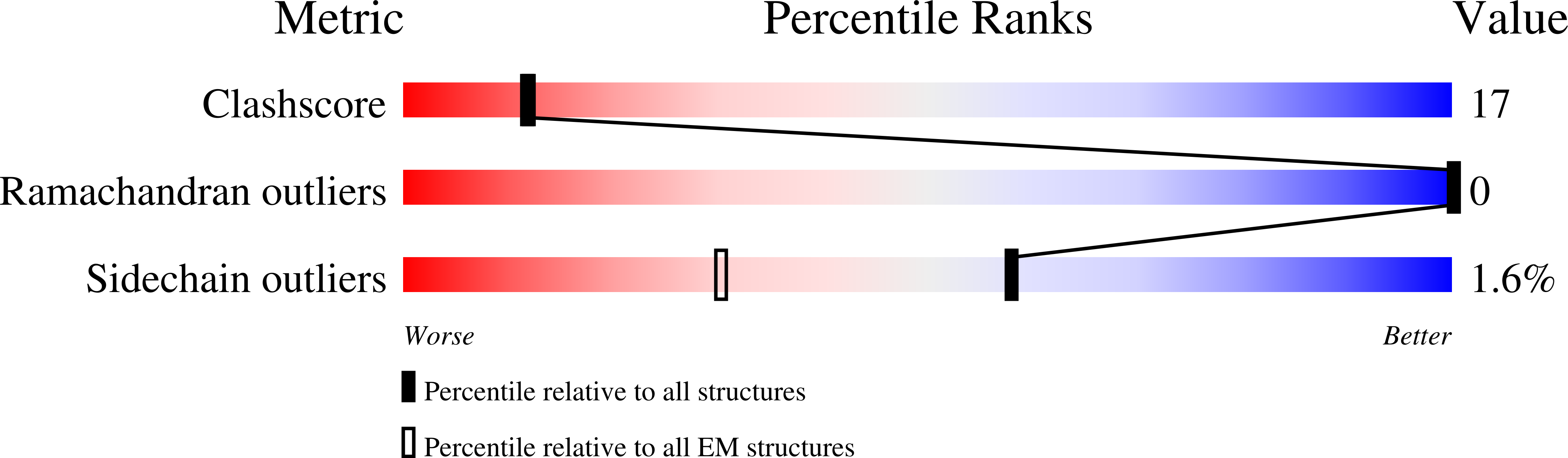

Validation slider image for 6VPX

This is version 2.1 of the entry. See complete history.

Literature

HIV-1 Envelope and MPER Antibody Structures in Lipid Assemblies.

Rantalainen, K., Berndsen, Z.T., Antanasijevic, A., Schiffner, T., Zhang, X., Lee, W.H., Torres, J.L., Zhang, L., Irimia, A., Copps, J., Zhou, K.H., Kwon, Y.D., Law, W.H., Schramm, C.A., Verardi, R., Krebs, S.J., Kwong, P.D., Doria-Rose, N.A., Wilson, I.A., Zwick, M.B., Yates 3rd, J.R., Schief, W.R., Ward, A.B.

(2020) Cell Rep 31: 107583-107583

  • DOI: https://doi.org/10.1016/j.celrep.2020.107583
  • Primary Citation Related Structures:
    6VPX

  • PubMed Abstract:

    Structural and functional studies of HIV envelope glycoprotein (Env) as a transmembrane protein have long been complicated by challenges associated with inherent flexibility of the molecule and the membrane-embedded hydrophobic regions. Here, we present approaches for incorporating full-length, wild-type HIV-1 Env, as well as C-terminally truncated and stabilized versions, into lipid assemblies, providing a modular platform for Env structural studies by single particle electron microscopy. We reconstitute a full-length Env clone into a nanodisc, complex it with a membrane-proximal external region (MPER) targeting antibody 10E8, and structurally define the full quaternary epitope of 10E8 consisting of lipid, MPER, and ectodomain contacts. By aligning this and other Env-MPER antibody complex reconstructions with the lipid bilayer, we observe evidence of Env tilting as part of the neutralization mechanism for MPER-targeting antibodies. We also adapt the platform toward vaccine design purposes by introducing stabilizing mutations that allow purification of unliganded Env with a peptidisc scaffold.


  • Organizational Affiliation:
    • Department of Integrative Structural and Computational Biology, The Scripps Research Institute, La Jolla, CA, 92037, USA; International AIDS Vaccine Initiative Neutralizing Antibody Center, The Scripps Research Institute, La Jolla, CA 92037, USA.

Macromolecule Content

  • Total Structure Weight: 343.31 kDa
  • Atom Count: 22,655
  • Modeled Residue Count: 2,684
  • Deposited Residue Count: 2,859
  • Unique protein chains: 7

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Envelope glycoprotein gp120A,
B [auth E],
C
465Human immunodeficiency virus 1Mutation(s): 0
UniProt
Find proteins for B9V6B3 (Human immunodeficiency virus type 1)
Explore B9V6B3
Go to UniProtKB:  B9V6B3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupB9V6B3
Glycosylation
Glycosylation Sites: 19
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
Envelope glycoprotein gp41D,
E [auth B],
F
153Human immunodeficiency virus 1Mutation(s): 0
UniProt
Find proteins for B0FAM5 (Human immunodeficiency virus type 1)
Explore B0FAM5
Go to UniProtKB:  B0FAM5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupB0FAM5
Glycosylation
Glycosylation Sites: 3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
Antibody 10E8 Fab heavy chainG [auth H],
J [auth K],
M
129Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage
Antibody 10E8 Fab light chainH [auth L],
K [auth N],
N [auth O]
108Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:  Sequence   |   3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage
MPER peptideI [auth G],
L [auth I],
O [auth J]
17Homo sapiensMutation(s): 0
UniProt
Find proteins for P05880 (Human immunodeficiency virus type 1 group M subtype B (isolate WMJ22))
Explore P05880
Go to UniProtKB:  P05880
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP05880
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage
Antibody PGT151 Fab heavy chain134Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage
Antibody PGT151 Fab light chain109Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence

Oligosaccharides

Help
Entity ID: 8
MoleculeChains Length2D Diagram GlycosylationD Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
AA [auth a],
BA [auth b],
DA [auth d],
EA [auth e],
FA [auth f],
AA [auth a],
BA [auth b],
DA [auth d],
EA [auth e],
FA [auth f],
IA [auth i],
R,
T,
U,
V,
X,
Z
2N-Glycosylation
Glycosylation Resources
GlyTouCan: G42666HT
GlyCosmos: G42666HT
GlyGen: G42666HT
Entity ID: 9
MoleculeChains Length2D Diagram GlycosylationD Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose
S
2N-Glycosylation
Glycosylation Resources
GlyTouCan: G35932AR
GlyCosmos: G35932AR
GlyGen: G35932AR
Entity ID: 10
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
W
4N-Glycosylation
Glycosylation Resources
GlyTouCan: G81315DD
GlyCosmos: G81315DD
GlyGen: G81315DD
Entity ID: 11
MoleculeChains Length2D Diagram GlycosylationD Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseCA [auth c],
Y
3N-Glycosylation
Glycosylation Resources
GlyTouCan: G15407YE
GlyCosmos: G15407YE
GlyGen: G15407YE
Entity ID: 12
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseGA [auth g]5N-Glycosylation
Glycosylation Resources
GlyTouCan: G22768VO
GlyCosmos: G22768VO
GlyGen: G22768VO
Entity ID: 13
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranoseHA [auth h],
NA [auth n]
2N-Glycosylation
Glycosylation Resources
GlyTouCan: G86851RC
GlyCosmos: G86851RC
GlyGen: G86851RC
Entity ID: 14
MoleculeChains Length2D Diagram GlycosylationD Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranoseJA [auth j],
KA [auth k]
3N-Glycosylation
Glycosylation Resources
GlyTouCan: G21290RB
GlyCosmos: G21290RB
GlyGen: G21290RB
Entity ID: 15
MoleculeChains Length2D Diagram GlycosylationD Interactions
beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)]alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranoseLA [auth l]9N-Glycosylation
Glycosylation Resources
GlyTouCan: G42672MA
GlyCosmos: G42672MA
GlyGen: G42672MA
Entity ID: 16
MoleculeChains Length2D Diagram GlycosylationD Interactions
beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-6)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranoseMA [auth m]8N-Glycosylation
Glycosylation Resources
GlyTouCan: G04744XB
GlyCosmos: G04744XB
GlyGen: G04744XB

Small Molecules

Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
44E

Query on 44E



Download:Ideal Coordinates CCD File
FC [auth L],
GC [auth N],
HC [auth O]
(2R)-3-(phosphonooxy)propane-1,2-diyl dihexanoate
C15 H29 O8 P
SFZZRGHNPILUOD-CYBMUJFWSA-N
NAG

Query on NAG



Download:Ideal Coordinates CCD File
AB [auth E]
AC [auth D]
BB [auth E]
BC [auth F]
CB [auth E]
AB [auth E],
AC [auth D],
BB [auth E],
BC [auth F],
CB [auth E],
CC [auth F],
DB [auth E],
DC [auth F],
EB [auth E],
EC [auth F],
FB [auth E],
GB [auth E],
HB [auth E],
IB [auth E],
JB [auth E],
KB [auth E],
LB [auth E],
MB [auth E],
NB [auth C],
OA [auth A],
OB [auth C],
PA [auth A],
PB [auth C],
QA [auth A],
QB [auth C],
RA [auth A],
RB [auth C],
SA [auth A],
SB [auth C],
TA [auth A],
TB [auth C],
UA [auth A],
UB [auth C],
VA [auth A],
VB [auth C],
WA [auth A],
WB [auth C],
XA [auth E],
XB [auth C],
YA [auth E],
YB [auth C],
ZA [auth E],
ZB [auth C]
2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 5.00 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC2.8.0

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesUM1AI100663
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesUM1AI144462
Bill & Melinda Gates FoundationUnited StatesOPP1115782

Revision History  (Full details and data files)

  • Version 1.0: 2020-04-22
    Type: Initial release
  • Version 1.1: 2020-05-13
    Changes: Database references
  • Version 2.0: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Advisory, Atomic model, Data collection, Derived calculations, Structure summary
  • Version 2.1: 2024-11-20
    Changes: Data collection, Database references, Refinement description, Structure summary
