6OCF

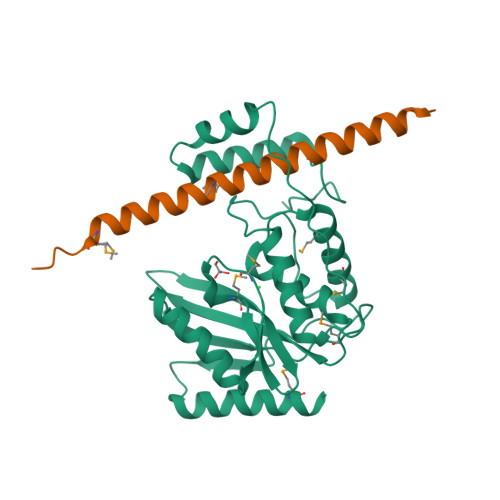

The crystal structure of VASH1-SVBP complex

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free: 0.222
  • R-Value Work: 0.196
  • R-Value Observed: 0.197

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history.


Literature

Structural basis of tubulin detyrosination by vasohibins.

Li, F., Hu, Y., Qi, S., Luo, X., Yu, H.

(2019) Nat Struct Mol Biol 26: 583-591

  • DOI: 10.1038/s41594-019-0242-x
  • Primary Citation of Related Structures:
    6OCG, 6OCF, 6OCH

  • PubMed Abstract:

    • Microtubules are regulated by post-translational modifications of tubulin. The ligation and cleavage of the carboxy-terminal tyrosine of α-tubulin impact microtubule functions during mitosis, cardiomyocyte contraction and neuronal processes. Tubulin tyrosination and detyrosination are mediated by tubulin tyrosine ligase and the recently discovered tubulin detyrosinases, vasohibin 1 and 2 (VASH1 and VASH2) bound to the small vasohibin-binding protein (SVBP) ...

    Microtubules are regulated by post-translational modifications of tubulin. The ligation and cleavage of the carboxy-terminal tyrosine of α-tubulin impact microtubule functions during mitosis, cardiomyocyte contraction and neuronal processes. Tubulin tyrosination and detyrosination are mediated by tubulin tyrosine ligase and the recently discovered tubulin detyrosinases, vasohibin 1 and 2 (VASH1 and VASH2) bound to the small vasohibin-binding protein (SVBP). Here, we report the crystal structures of human VASH1-SVBP alone, in complex with a tyrosine-derived covalent inhibitor and bound to the natural product parthenolide. The structures and subsequent mutagenesis analyses explain the requirement for SVBP during tubulin detyrosination, and reveal the basis for the recognition of the C-terminal tyrosine and the acidic α-tubulin tail by VASH1. The VASH1-SVBP-parthenolide structure provides a framework for designing more effective chemical inhibitors of vasohibins, which can be valuable for dissecting their biological functions and may have therapeutic potential.

    Organizational Affiliation:

    Howard Hughes Medical Institute, University of Texas Southwestern Medical Center, Dallas, TX, USA. Hongtao.Yu@utsouthwestern.edu.



Macromolecules
Find similar proteins by:
(by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Tubulinyl-Tyr carboxypeptidase 1A248Homo sapiensMutation(s): 0
Gene Names: VASH1, KIAA1036, VASH
EC: 3.4.17.17
UniProt & NIH Common Fund Data Resources
Find proteins for Q7L8A9 (Homo sapiens)
Explore Q7L8A9
Go to UniProtKB:  Q7L8A9
PHAROS:  Q7L8A9
GTEx:  ENSG00000071246
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  Structure
Entity ID: 2
MoleculeChainsSequence LengthOrganismDetailsImage
Small vasohibin-binding proteinB49Homo sapiensMutation(s): 0
Gene Names: SVBP, CCDC23
UniProt & NIH Common Fund Data Resources
Find proteins for Q8N300 (Homo sapiens)
Explore Q8N300
Go to UniProtKB:  Q8N300
PHAROS:  Q8N300
GTEx:  ENSG00000177868
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
GOL
Query on GOL
Download Ideal Coordinates CCD File
 C [auth A]GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N		 Ligand Interaction
CL
Query on CL
Download Ideal Coordinates CCD File
 D [auth A]CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M		 Ligand Interaction
Modified Residues  1 Unique
IDChainsTypeFormula2D DiagramParent
MSE
Query on MSE		AL-PEPTIDE LINKINGC5 H11 N O2 SeMET
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free: 0.222
  • R-Value Work: 0.196
  • R-Value Observed: 0.197
  • Space Group: I 41 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 100.558α = 90
b = 100.558β = 90
c = 206.73γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
Cootmodel building
HKL-3000data reduction
HKL-3000data collection
AutoSolphasing
HKL-3000data scaling

Structure Validation

View Full Validation Report



View more in-depth experimental data

Entry History & Funding Information

Deposition Data

  • Deposited Date: 2019-03-23
  • Released Date: 2019-06-26
    • Deposition Author(s): Li, F., Luo, X., Yu, H.
Funding OrganizationLocationGrant Number
National Institutes of Health/National Human Genome Research Institute (NIH/NHGRI)United StatesRP150538-P2

Revision History  (Full details and data files)

  • Version 1.0: 2019-06-26
    Type: Initial release
  • Version 1.1: 2019-07-10
    Changes: Data collection, Database references
  • Version 1.2: 2019-07-17
    Changes: Data collection, Database references
  • Version 1.3: 2019-12-18
    Changes: Author supporting evidence
