6NUS

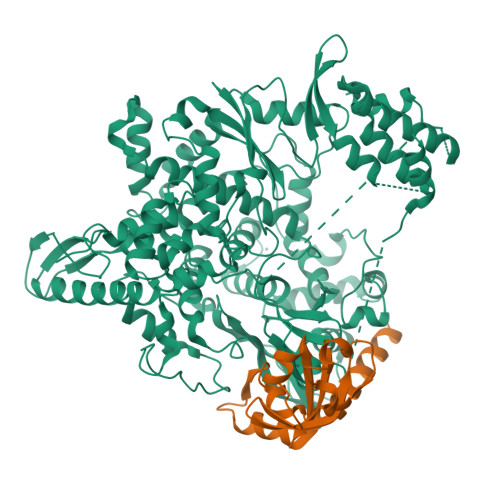

SARS-Coronavirus NSP12 bound to NSP8 co-factor


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.50 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structure of the SARS-CoV nsp12 polymerase bound to nsp7 and nsp8 co-factors.

Kirchdoerfer, R.N.Ward, A.B.

(2019) Nat Commun 10: 2342-2342

  • DOI: 10.1038/s41467-019-10280-3
  • Structures With Same Primary Citation

  • PubMed Abstract:
  • Recent history is punctuated by the emergence of highly pathogenic coronaviruses such as SARS- and MERS-CoV into human circulation. Upon infecting host cells, coronaviruses assemble a multi-subunit RNA-synthesis complex of viral non-structural protei ...

    Recent history is punctuated by the emergence of highly pathogenic coronaviruses such as SARS- and MERS-CoV into human circulation. Upon infecting host cells, coronaviruses assemble a multi-subunit RNA-synthesis complex of viral non-structural proteins (nsp) responsible for the replication and transcription of the viral genome. Here, we present the 3.1 Å resolution structure of the SARS-CoV nsp12 polymerase bound to its essential co-factors, nsp7 and nsp8, using single particle cryo-electron microscopy. nsp12 possesses an architecture common to all viral polymerases as well as a large N-terminal extension containing a kinase-like fold and is bound by two nsp8 co-factors. This structure illuminates the assembly of the coronavirus core RNA-synthesis machinery, provides key insights into nsp12 polymerase catalysis and fidelity and acts as a template for the design of novel antiviral therapeutics.


    Organizational Affiliation

    Department of Integrative Structural and Computational Biology, The Scripps Research Institute, 10550 North Torrey Pines Road, HZ-102, La Jolla, CA, 92037, USA.



Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
NSP12
A
955Human SARS coronavirusMutation(s): 0
Gene Names: rep1a-1b
EC: 3.4.19.12 (UniProt), 3.4.22.69 (UniProt), 3.4.22 (UniProt), 2.7.7.48 (UniProt), 3.6.4.12 (UniProt), 3.6.4.13 (UniProt), 2.1.1 (UniProt), 3.1.13 (UniProt), 3.1 (UniProt)
Find proteins for P0C6X7 (Human SARS coronavirus)
Go to UniProtKB:  P0C6X7

Find similar proteins by: Sequence  |  Structure

Entity ID: 2
MoleculeChainsSequence LengthOrganismDetails
NSP8
B
198Human SARS coronavirusMutation(s): 0
Gene Names: 1a
EC: 3.4.19.12 (UniProt), 3.4.22.69 (UniProt), 3.4.22 (UniProt)
Find proteins for P0C6U8 (Human SARS coronavirus)
Go to UniProtKB:  P0C6U8
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
ZN
Query on ZN

Download CCD File
A
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.50 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesAI123498
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesAI127521

Revision History

  • Version 1.0: 2019-05-29
    Type: Initial release
  • Version 1.1: 2019-06-12
    Changes: Data collection, Database references
  • Version 1.2: 2019-12-18
    Changes: Author supporting evidence
