6JXM | pdb_00006jxm

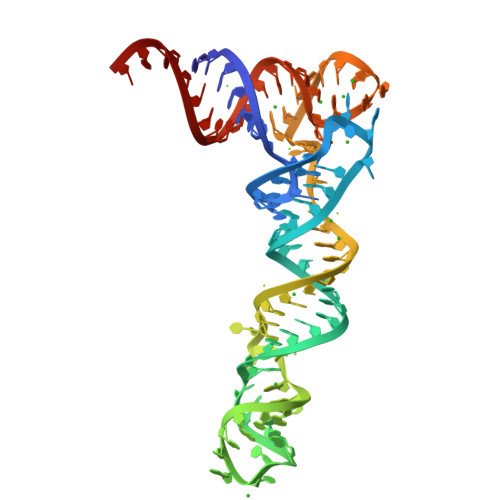

Crystal Structure of phi29 pRNA domain II

PDB DOI: https://doi.org/10.2210/pdb6JXM/pdb
NAKB: 6JXM

Classification: RNA
Organism(s): Salasvirus phi29
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2019-04-24 Released: 2019-08-21
Deposition Author(s): Cai, R., Price, I.R., Ding, F., Wu, F., Chen, T., Zhang, Y., Liu, G., Jardine, P.J., Lu, C., Ke, A.
Funding Organization(s): National Natural Science Foundation of China

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 3.32 Å
R-Value Free:
0.265 (Depositor), 0.274 (DCC)
R-Value Work:
0.223 (Depositor), 0.235 (DCC)
R-Value Observed:
0.227 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.2 of the entry. See complete history.

Literature

ATP/ADP modulates gp16-pRNA conformational change in the Phi29 DNA packaging motor.

Cai, R., Price, I.R., Ding, F., Wu, F., Chen, T., Zhang, Y., Liu, G., Jardine, P.J., Lu, C., Ke, A.

(2019) Nucleic Acids Res 47: 9818-9828

PubMed: 31396619 Search on PubMed Search on PubMed Central
DOI: https://doi.org/10.1093/nar/gkz692
Primary Citation Related Structures:
6JXM

PubMed Abstract:
Packaging of phage phi29 genome requires the ATPase gp16 and prohead RNA (pRNA). The highly conserved pRNA forms the interface between the connector complex and gp16. Understanding how pRNA interacts with gp16 under packaging conditions can shed light on the molecular mechanism of the packaging motor. Here, we present 3D models of the pRNA-gp16 complex and its conformation change in response to ATP or ADP binding. Using a combination of crystallography, small angle X-ray scattering and chemical probing, we find that the pRNA and gp16 forms a 'Z'-shaped complex, with gp16 specifically binds to pRNA domain II. The whole complex closes in the presence of ATP, and pRNA domain II rotates open as ATP hydrolyzes, before resetting after ADP is released. Our results suggest that pRNA domain II actively participates in the packaging process.

Organizational Affiliation

Key Laboratory of Science and Technology of Eco-Textiles, Ministry of Education, College of Chemistry, Chemical Engineering and Biotechnology, Donghua University, Shanghai 201620, China.

Macromolecule Content

Total Structure Weight: 33.61 kDa
Atom Count: 2,099
Modeled Residue Count: 97
Deposited Residue Count: 97
Unique nucleic acid chains: 1

Macromolecules

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism
Entity ID: 1
RNA (97-mer)	A [auth B]	97	Salasvirus phi29
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
BA Query on BA Download:Ideal Coordinates CCD File SDF format, chain W [auth B] SDF format, chain V [auth B] SDF format, chain U [auth B] SDF format, chain T [auth B] SDF format, chain S [auth B] SDF format, chain R [auth B] SDF format, chain Q [auth B] SDF format, chain P [auth B] SDF format, chain O [auth B] SDF format, chain N [auth B] SDF format, chain M [auth B] SDF format, chain L [auth B] SDF format, chain K [auth B] SDF format, chain J [auth B] SDF format, chain I [auth B] MOL2 format, chain W [auth B] MOL2 format, chain V [auth B] MOL2 format, chain U [auth B] MOL2 format, chain T [auth B] MOL2 format, chain S [auth B] MOL2 format, chain R [auth B] MOL2 format, chain Q [auth B] MOL2 format, chain P [auth B] MOL2 format, chain O [auth B] MOL2 format, chain N [auth B] MOL2 format, chain M [auth B] MOL2 format, chain L [auth B] MOL2 format, chain K [auth B] MOL2 format, chain J [auth B] MOL2 format, chain I [auth B] mmCIF format, chain W [auth B] mmCIF format, chain V [auth B] mmCIF format, chain U [auth B] mmCIF format, chain T [auth B] mmCIF format, chain S [auth B] mmCIF format, chain R [auth B] mmCIF format, chain Q [auth B] mmCIF format, chain P [auth B] mmCIF format, chain O [auth B] mmCIF format, chain N [auth B] mmCIF format, chain M [auth B] mmCIF format, chain L [auth B] mmCIF format, chain K [auth B] mmCIF format, chain J [auth B] mmCIF format, chain I [auth B]	I [auth B] J [auth B] K [auth B] L [auth B] M [auth B] I [auth B], J [auth B], K [auth B], L [auth B], M [auth B], N [auth B], O [auth B], P [auth B], Q [auth B], R [auth B], S [auth B], T [auth B], U [auth B], V [auth B], W [auth B]	BARIUM ION Ba XDFCIPNJCBUZJN-UHFFFAOYSA-N		Interactions Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B] Focus chain O [auth B] Focus chain P [auth B] Focus chain Q [auth B] Focus chain R [auth B] Focus chain S [auth B] Focus chain T [auth B] Focus chain U [auth B] Focus chain V [auth B] Focus chain W [auth B] Interactions & Density Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B] Focus chain O [auth B] Focus chain P [auth B] Focus chain Q [auth B] Focus chain R [auth B] Focus chain S [auth B] Focus chain T [auth B] Focus chain U [auth B] Focus chain V [auth B] Focus chain W [auth B]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain H [auth B] SDF format, chain G [auth B] SDF format, chain F [auth B] SDF format, chain E [auth B] SDF format, chain D [auth B] SDF format, chain C [auth B] SDF format, chain B MOL2 format, chain H [auth B] MOL2 format, chain G [auth B] MOL2 format, chain F [auth B] MOL2 format, chain E [auth B] MOL2 format, chain D [auth B] MOL2 format, chain C [auth B] MOL2 format, chain B mmCIF format, chain H [auth B] mmCIF format, chain G [auth B] mmCIF format, chain F [auth B] mmCIF format, chain E [auth B] mmCIF format, chain D [auth B] mmCIF format, chain C [auth B] mmCIF format, chain B	B C [auth B] D [auth B] E [auth B] F [auth B] B, C [auth B], D [auth B], E [auth B], F [auth B], G [auth B], H [auth B]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain B Focus chain C [auth B] Focus chain D [auth B] Focus chain E [auth B] Focus chain F [auth B] Focus chain G [auth B] Focus chain H [auth B] Interactions & Density Focus chain B Focus chain C [auth B] Focus chain D [auth B] Focus chain E [auth B] Focus chain F [auth B] Focus chain G [auth B] Focus chain H [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 3.32 Å
R-Value Free: 0.265 (Depositor), 0.274 (DCC)
R-Value Work: 0.223 (Depositor), 0.235 (DCC)
R-Value Observed: 0.227 (Depositor)

Space Group: I 4 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 120.178	α = 90
b = 120.178	β = 90
c = 187.494	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
XDS	data reduction
Aimless	data scaling

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2019-08-21

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China	China	31300603

Revision History (Full details and data files)

Version 1.0: 2019-08-21
Type: Initial release
Version 1.1: 2019-10-09
Changes: Data collection, Database references
Version 1.2: 2023-11-22
Changes: Data collection, Database references, Derived calculations, Refinement description
