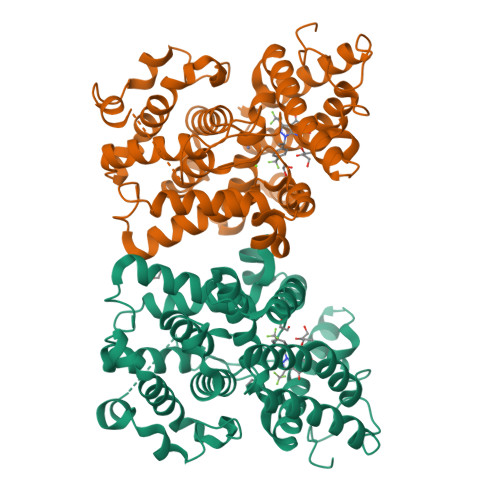

6CYB

PDE2 in complex with compound 7


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.62 Å
  • R-Value Free: 0.201
  • R-Value Work: 0.179

wwPDB Validation 3D Report Full Report


This is version 1.0 of the entry. See complete history

Literature

Structure-Guided Design and Procognitive Assessment of a Potent and Selective Phosphodiesterase 2A Inhibitor.

Stachel, S.J.Berger, R.Nomland, A.B.Ginnetti, A.T.Paone, D.V.Wang, D.Puri, V.Lange, H.Drott, J.Lu, J.Marcus, J.Dwyer, M.P.Suon, S.Uslaner, J.M.Smith, S.M.

(2018) ACS Med Chem Lett 9: 815-820


Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
cGMP-dependent 3',5'-cyclic phosphodiesterase
A, B
373Homo sapiensMutation(s): 0
Gene Names: PDE2A
EC: 3.1.4.17
Find proteins for O00408 (Homo sapiens)
Go to Gene View: PDE2A
Go to UniProtKB:  O00408
Small Molecules
Ligands 4 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
ZN
Query on ZN

Download SDF File
Download CCD File
A, B
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
 Ligand Interaction
EDO
Query on EDO

Download SDF File
Download CCD File
A, B
1,2-ETHANEDIOL
ETHYLENE GLYCOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
 Ligand Interaction
MG
Query on MG

Download SDF File
Download CCD File
A, B
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
 Ligand Interaction
FKV
Query on FKV

Download SDF File
Download CCD File
A, B
3-(2,2,2-trifluoroethyl)-1-{(1S)-1-[4-(trifluoromethyl)phenyl]ethyl}-1H-pyrazolo[3,4-d]pyrimidine-4,6(5H,7H)-dione
C16 H12 F6 N4 O2
OQMRFLKHFNZIRH-ZETCQYMHSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.62 Å
  • R-Value Free: 0.201
  • R-Value Work: 0.179
  • Space Group: P 21 21 21
Unit Cell:
Length (Å)Angle (°)
a = 72.260α = 90.00
b = 96.640β = 90.00
c = 102.040γ = 90.00
Software Package:
Software NamePurpose
REFMACphasing
XDSdata reduction
AutoPROCdata scaling
BUSTERrefinement

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History

Deposition Data

  • Deposited Date: 2018-04-05
  • Released Date: 2018-09-19
  • Deposition Author(s): Lu, J.

Revision History

  • Version 1.0: 2018-09-19
    Type: Initial release
