6CIR

Human Cytochrome P450 17A1 in complex with inhibitor: abiraterone C6 oxime

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.65 Å
  • R-Value Free: 0.240
  • R-Value Work: 0.187
  • R-Value Observed: 0.190

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history.


Literature

Structure-Based Design of Inhibitors with Improved Selectivity for Steroidogenic Cytochrome P450 17A1 over Cytochrome P450 21A2.

Fehl, C., Vogt, C.D., Yadav, R., Li, K., Scott, E.E., Aube, J.

(2018) J Med Chem 61: 4946-4960

  • DOI: 10.1021/acs.jmedchem.8b00419
  • Primary Citation of Related Structures:
    6CHI, 6CIZ, 6CIR

  • PubMed Abstract:

    • Inhibition of androgen biosynthesis is clinically effective for treating androgen-responsive prostate cancer. Abiraterone is a clinical first-in-class inhibitor of cytochrome P450 17A1 (CYP17A1) required for androgen biosynthesis. However, abiraterone also causes hypertension, hypokalemia, and edema, likely due in part to off-target inhibition of another steroidogenic cytochrome P450, CYP21A2 ...

    Inhibition of androgen biosynthesis is clinically effective for treating androgen-responsive prostate cancer. Abiraterone is a clinical first-in-class inhibitor of cytochrome P450 17A1 (CYP17A1) required for androgen biosynthesis. However, abiraterone also causes hypertension, hypokalemia, and edema, likely due in part to off-target inhibition of another steroidogenic cytochrome P450, CYP21A2. Abiraterone analogs were designed based on structural evidence that B-ring substituents may favorably interact with polar residues in binding CYP17A1 and sterically clash with residues in the CYP21A2 active site. The best analogs increased selectivity of CYP17A1 inhibition up to 84-fold compared with 6.6-fold for abiraterone. Cocrystallization with CYP17A1 validated the intended new contacts with CYP17A1 active site residues. Docking these analogs into CYP21A2 identified steric clashes that likely underlie decreased binding and CYP21A2 inhibition. Overall, these analogs may offer a clinical advantage in the form of reduced side effects.

    Organizational Affiliation:

    Division of Chemical Biology and Medicinal Chemistry, UNC Eshelman School of Pharmacy , University of North Carolina at Chapel Hill , Chapel Hill , North Carolina 27599 , United States.

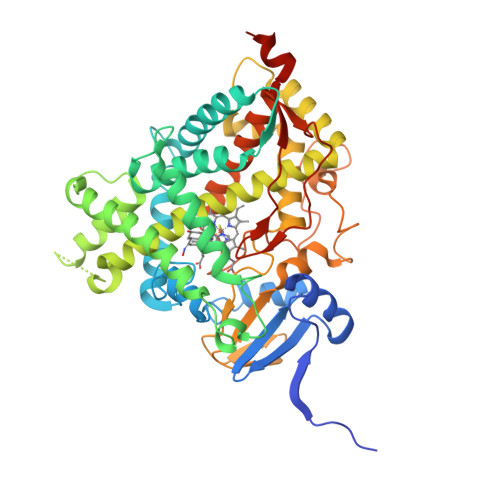

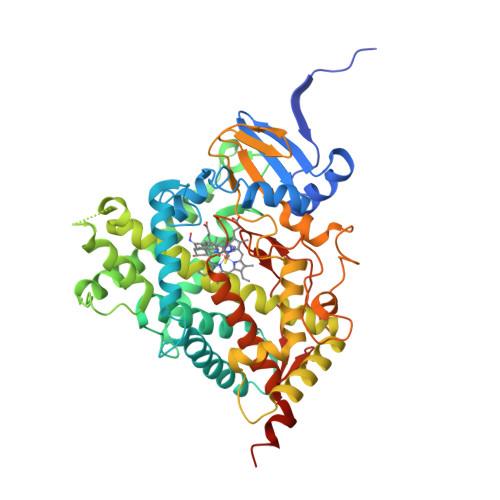

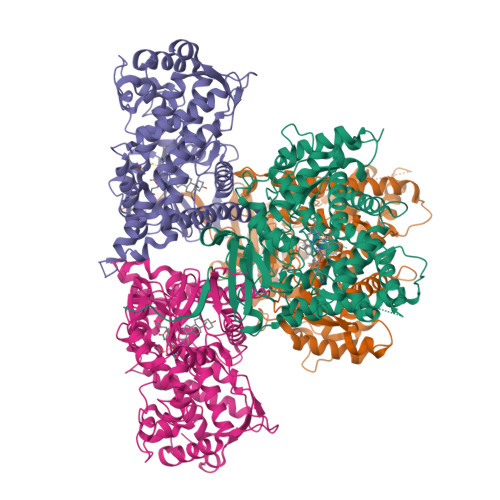

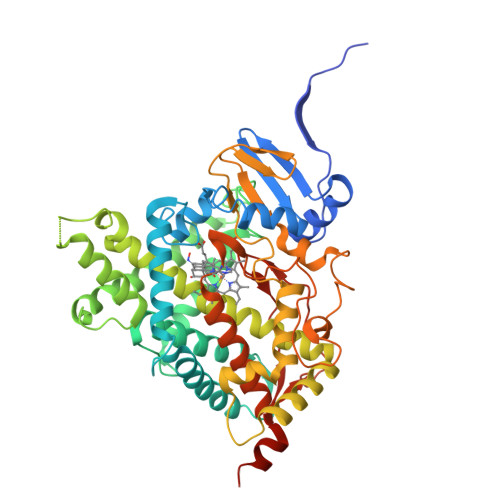

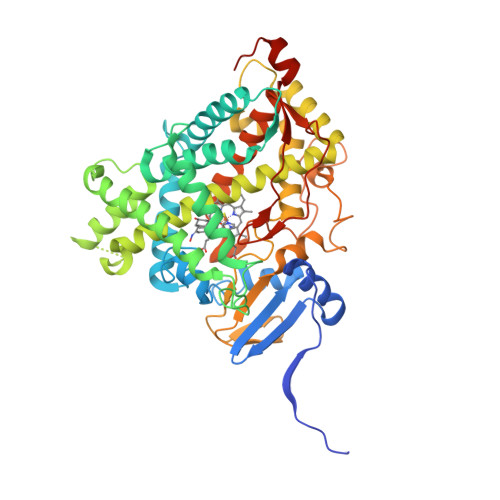

Macromolecules
Find similar proteins by:
(by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Steroid 17-alpha-hydroxylase/17,20 lyase A, B, C, D494Homo sapiensMutation(s): 0
Gene Names: CYP17A1, CYP17, S17AH
EC: 1.14.14.19 (PDB Primary Data), 1.14.14.32 (PDB Primary Data)
Find proteins for P05093 (Homo sapiens)
Explore P05093
Go to UniProtKB:  P05093
NIH Common Fund Data Resources
PHAROS:  P05093
GTEx:  ENSG00000148795
Protein Feature View
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.65 Å
  • R-Value Free: 0.240
  • R-Value Work: 0.187
  • R-Value Observed: 0.190
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 91.904α = 90
b = 151.874β = 90
c = 168.188γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
SCALAdata scaling
PHASERphasing

Structure Validation

View Full Validation Report


View more in-depth experimental data

Entry History & Funding Information

Deposition Data

  • Deposited Date: 2018-02-25
  • Released Date: 2018-06-06
    • Deposition Author(s): Scott, E.E., Fehl, C.
Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM102505

Revision History  (Full details and data files)

  • Version 1.0: 2018-06-06
    Type: Initial release
  • Version 1.1: 2018-06-27
    Changes: Data collection, Database references
  • Version 1.2: 2020-01-01
    Changes: Author supporting evidence
