5N0D

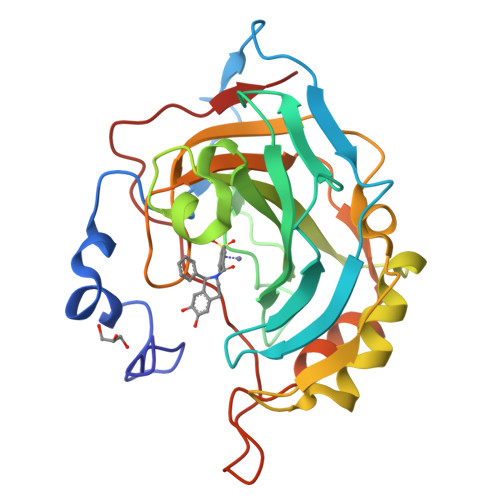

Crystal structure of human carbonic anhydrase II in complex with (R)-4-(6,7-dihydroxy-1-phenyl-3,4-tetrahydroisoquinoline-1H-2-carbonyl)benzenesulfonamide.


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.209
  • R-Value Work: 0.173
  • R-Value Observed: 0.173

wwPDB Validation 3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Probing Molecular Interactions between Human Carbonic Anhydrases (hCAs) and a Novel Class of Benzenesulfonamides.

Bruno, E.Buemi, M.R.Di Fiore, A.De Luca, L.Ferro, S.Angeli, A.Cirilli, R.Sadutto, D.Alterio, V.Monti, S.M.Supuran, C.T.De Simone, G.Gitto, R.

(2017) J Med Chem 60: 4316-4326

  • DOI: 10.1021/acs.jmedchem.7b00264
  • Structures With Same Primary Citation

  • PubMed Abstract:
  • On the basis of X-ray crystallographic studies of the complex of hCA II with 4-(3,4-dihydro-1H-isoquinoline-2-carbonyl)benzenesulfonamide (3) (PDB code 4Z1J ), a novel series of 4-(1-aryl-3,4-dihydro-1H-isoquinolin-2-carbonyl)benzenesulfonamides (23- ...

    On the basis of X-ray crystallographic studies of the complex of hCA II with 4-(3,4-dihydro-1H-isoquinoline-2-carbonyl)benzenesulfonamide (3) (PDB code 4Z1J ), a novel series of 4-(1-aryl-3,4-dihydro-1H-isoquinolin-2-carbonyl)benzenesulfonamides (23-33) was designed. Specifically, our idea was to improve the selectivity toward druggable isoforms through the introduction of additional hydrophobic/hydrophilic functionalities. Among the synthesized and tested compounds, the (R,S)-4-(6,7-dihydroxy-1-phenyl-3,4-tetrahydroisoquinoline-1H-2-carbonyl)benzenesulfonamide (30) exhibited a remarkable inhibition for the brain-expressed hCA VII (K i = 0.20 nM) and selectivity over wider distributed hCA I and hCA II isoforms. By enantioselective HPLC, we solved the racemic mixture and ascertained that the two enantiomers (30a and 30b) are equiactive inhibitors for hCA VII. Crystallographic and docking studies revealed the main interactions of these inhibitors into the carbonic anhydrase (CA) catalytic site, thus highlighting the relevant role of nonpolar contacts for this class of hCA inhibitors.


    Organizational Affiliation

    Dipartimento di Scienze Chimiche, Biologiche, Farmaceutiche ed Ambientali (CHIBIOFARAM), Università degli Studi di Messina , Viale Annunziata, I-98168 Messina, Italy.



Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
Carbonic anhydrase 2
A
262Homo sapiensMutation(s): 0
Gene Names: CA2
EC: 4.2.1.1
Find proteins for P00918 (Homo sapiens)
Go to UniProtKB:  P00918
NIH Common Fund Data Resources
PHAROS  P00918
Protein Feature View
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
8F2
Query on 8F2

Download CCD File
A
(R)-4-(6,7-dihydroxy-1-phenyl-3,4-tetrahydroisoquinoline-1H-2-carbonyl)benzenesulfonamide
C22 H20 N2 O5 S
UBKCMPKCMMEDIG-OAQYLSRUSA-N
 Ligand Interaction
GOL
Query on GOL

Download CCD File
A
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
 Ligand Interaction
ZN
Query on ZN

Download CCD File
A
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
 Ligand Interaction
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
8F2Ki:  3.299999952316284   nM  Binding MOAD
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.209
  • R-Value Work: 0.173
  • R-Value Observed: 0.173
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 42.3α = 90
b = 41.33β = 104.29
c = 71.81γ = 90
Software Package:
Software NamePurpose
CNSrefinement
HKL-2000data reduction
HKL-2000data scaling
CNSphasing

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History

  • Version 1.0: 2017-05-10
    Type: Initial release
  • Version 1.1: 2017-06-07
    Changes: Database references
