5I2I

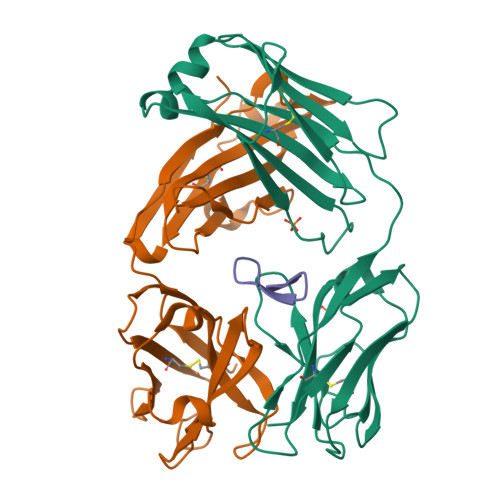

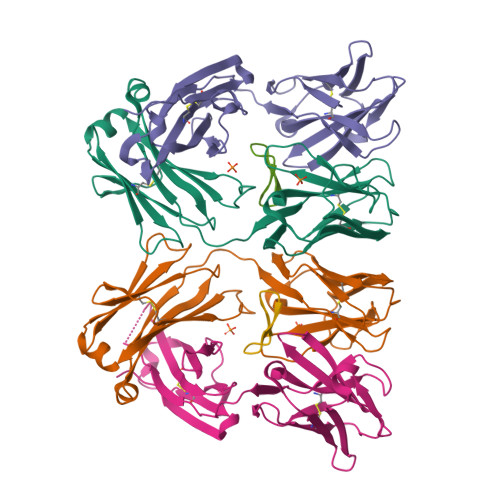

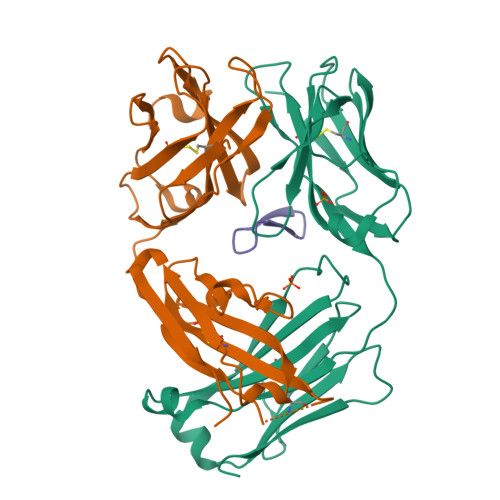

Structure of cetuximab Fab with cyclic F3Q variant of the meditope


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.55 Å
  • R-Value Free: 0.205
  • R-Value Work: 0.160
  • R-Value Observed: 0.162

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Natural and non-natural amino-acid side-chain substitutions: affinity and diffraction studies of meditope-Fab complexes.

Bzymek, K.P.Avery, K.A.Ma, Y.Horne, D.A.Williams, J.C.

(2016) Acta Crystallogr F Struct Biol Commun 72: 820-830

  • DOI: 10.1107/S2053230X16016149
  • Primary Citation of Related Structures:
    5T1K, 5T1M, 5T1L, 5ETU, 5EUK, 5F88, 5FF6, 5IR1, 5ITF, 5IV2, 5IVZ, 5TH2, 5I2I, 5IOP

  • PubMed Abstract:
  • Herein, multiple crystal structures of meditope peptide derivatives incorporating natural and unnatural amino acids bound to the cetuximab Fab domain are presented. The affinity of each derivative was determined by surface plasmon resonance and correlated to the atomic structure ...

    Herein, multiple crystal structures of meditope peptide derivatives incorporating natural and unnatural amino acids bound to the cetuximab Fab domain are presented. The affinity of each derivative was determined by surface plasmon resonance and correlated to the atomic structure. Overall, it was observed that the hydrophobic residues in the meditope peptide, Phe3, Leu5 and Leu10, could accommodate a number of moderate substitutions, but these invariably reduced the overall affinity and half-life of the interaction. In one case, the substitution of Phe3 by histidine led to a change in the rotamer conformation, in which the imidazole ring flipped to a solvent-exposed position. Based on this observation, Phe3 was substituted by diphenylalanine and it was found that the phenyl rings in this variant mimic the superposition of the Phe3 and His3 structures, producing a moderate increase, of 1.4-fold, in the half-life of the complex. In addition, it was observed that substitution of Leu5 by tyrosine and glutamate strongly reduced the affinity, whereas the substitution of Leu5 by diphenylalanine moderately reduced the half-life (by approximately fivefold). Finally, it was observed that substitution of Arg8 and Arg9 by citrulline dramatically reduced the overall affinity, presumably owing to lost electrostatic interactions. Taken together, these studies provide insight into the meditope-cetuximab interaction at the atomic level.


    Organizational Affiliation

    Department of Molecular Medicine, Beckman Research Institute of City of Hope, 1710 Flower Street, Duarte, CA 91010, USA.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Cetuximab Fab light chainA, C213Mus musculusHomo sapiens
This entity is chimeric
Mutation(s): 0
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 2
MoleculeChainsSequence LengthOrganismDetailsImage
Cetuximab Fab heavy chainB, D221Mus musculusHomo sapiens
This entity is chimeric
Mutation(s): 0
Protein Feature View
Expand
  • Reference Sequence
  • Find similar proteins by:  Sequence   |   Structure
Entity ID: 3
MoleculeChainsSequence LengthOrganismDetailsImage
MeditopeE, F12synthetic constructMutation(s): 0
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.55 Å
  • R-Value Free: 0.205
  • R-Value Work: 0.160
  • R-Value Observed: 0.162
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 63.97α = 90
b = 82.5β = 90
c = 211.88γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XSCALEdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report




Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2016-10-26
    Type: Initial release
  • Version 1.1: 2016-11-09
    Changes: Database references
  • Version 1.2: 2017-12-13
    Changes: Database references, Derived calculations
