5EW2

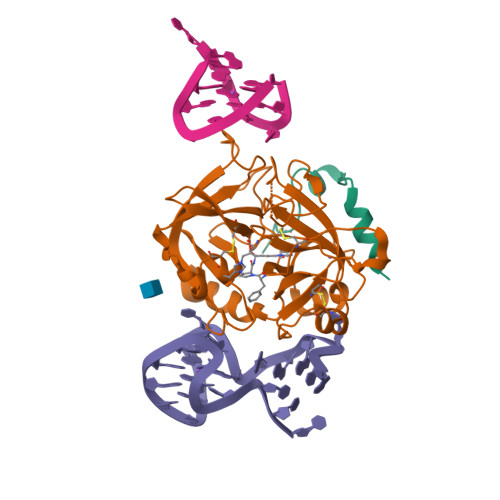

Human thrombin sandwiched between two DNA aptamers: HD22 and HD1-deltaT12


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.59 Å
  • R-Value Free: 0.268
  • R-Value Work: 0.208
  • R-Value Observed: 0.211

wwPDB Validation 3D Report Full Report


This is version 1.4 of the entry. See complete history


Literature

Through-bond effects in the ternary complexes of thrombin sandwiched by two DNA aptamers.

Pica, A.Russo Krauss, I.Parente, V.Tateishi-Karimata, H.Nagatoishi, S.Tsumoto, K.Sugimoto, N.Sica, F.

(2017) Nucleic Acids Res 45: 461-469

  • DOI: 10.1093/nar/gkw1113
  • Structures With Same Primary Citation

  • PubMed Abstract:
  • Aptamers directed against human thrombin can selectively bind to two different exosites on the protein surface. The simultaneous use of two DNA aptamers, HD1 and HD22, directed to exosite I and exosite II respectively, is a very powerful approach to ...

    Aptamers directed against human thrombin can selectively bind to two different exosites on the protein surface. The simultaneous use of two DNA aptamers, HD1 and HD22, directed to exosite I and exosite II respectively, is a very powerful approach to exploit their combined affinity. Indeed, strategies to link HD1 and HD22 together have been proposed in order to create a single bivalent molecule with an enhanced ability to control thrombin activity. In this work, the crystal structures of two ternary complexes, in which thrombin is sandwiched between two DNA aptamers, are presented and discussed. The structures shed light on the cross talk between the two exosites. The through-bond effects are particularly evident at exosite II, with net consequences on the HD22 structure. Moreover, thermodynamic data on the binding of the two aptamers are also reported and analyzed.


    Related Citations:
    • Duplex-quadruplex motifs in a peculiar structural organization cooperatively contribute to thrombin binding of a DNA aptamer.
      Russo Krauss, I., Pica, A., Merlino, A., Mazzarella, L., Sica, F.
      (2013) Acta Crystallogr D Biol Crystallogr 69: 2403
    • Dissecting the contribution of thrombin exosite I in the recognition of thrombin binding aptamer.
      Pica, A., Russo Krauss, I., Merlino, A., Nagatoishi, S., Sugimoto, N., Sica, F.
      (2013) FEBS J 280: 6581

    Organizational Affiliation

    Institute of Biostructures and Bioimaging, CNR, Via Mezzocannone, 16, I-80134 Naples, Italy.



Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
thrombin light chainL36Homo sapiensMutation(s): 0
Gene Names: F2
EC: 3.4.21.5
Find proteins for P00734 (Homo sapiens)
Explore P00734
Go to UniProtKB:  P00734
NIH Common Fund Data Resources
PHAROS  P00734
Protein Feature View
 ( Mouse scroll to zoom / Hold left click to move )
  • Reference Sequence

Find similar proteins by: Sequence  |  Structure

Entity ID: 2
MoleculeChainsSequence LengthOrganismDetails
Thrombin heavy chainH259Homo sapiensMutation(s): 0
Gene Names: F2
EC: 3.4.21.5
Find proteins for P00734 (Homo sapiens)
Explore P00734
Go to UniProtKB:  P00734
NIH Common Fund Data Resources
PHAROS  P00734
Protein Feature View
 ( Mouse scroll to zoom / Hold left click to move )
  • Reference Sequence

Find similar nucleic acids by: Sequence  |  Structure

Entity ID: 3
MoleculeChainsLengthOrganism
HD22 (27mer)D27Homo sapiens
  • Find similar nucleic acids by: Sequence   |   Structure
Entity ID: 4
MoleculeChainsLengthOrganism
HD1-deltaT12E15Homo sapiens
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
0G6
Query on 0G6

Download CCD File
H
D-phenylalanyl-N-[(2S,3S)-6-{[amino(iminio)methyl]amino}-1-chloro-2-hydroxyhexan-3-yl]-L-prolinamide
C21 H34 Cl N6 O3
DVFLYEYCMMLBTQ-VSZNYVQBSA-O
 Ligand Interaction
NAG
Query on NAG

Download CCD File
H
2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
 Ligand Interaction
NA
Query on NA

Download CCD File
D, E, H
SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N
 Ligand Interaction
Biologically Interesting Molecules 1 Unique
IDChainsNameType/Class2D Diagram3D Interactions
PRD_000020 (0G6)
Query on PRD_000020
HD-Phe-Pro-Arg-CH2ClP /  Inhibitor

--

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.59 Å
  • R-Value Free: 0.268
  • R-Value Work: 0.208
  • R-Value Observed: 0.211
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 117.089α = 90
b = 41.296β = 102.9
c = 104.923γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
HKL-2000data scaling
PHASERphasing
PDB_EXTRACTdata extraction
HKL-2000data reduction
PHASERphasing

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History

  • Version 1.0: 2016-11-30
    Type: Initial release
  • Version 1.1: 2016-12-14
    Changes: Database references
  • Version 1.2: 2016-12-21
    Changes: Non-polymer description
  • Version 1.3: 2017-01-18
    Changes: Database references
  • Version 1.4: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Data collection, Derived calculations, Structure summary
