5ZK1

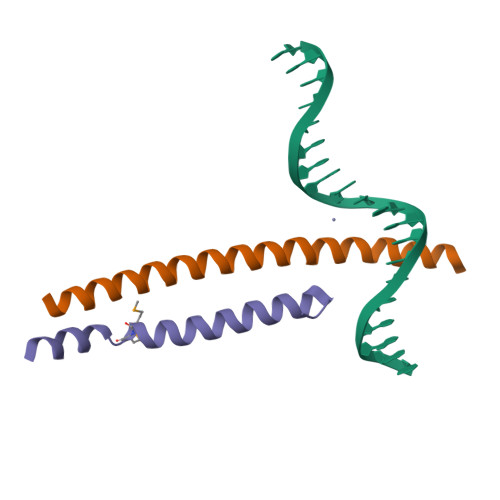

Crystal Structure of the CRTC2(SeMet)-CREB-CRE complex


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.05 Å
  • R-Value Free: 0.269
  • R-Value Work: 0.228
  • R-Value Observed: 0.232

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structural Insights into the CRTC2-CREB Complex Assembly on CRE.

Song, Y.Zhai, L.Valencia Swain, J.Chen, Y.Wang, P.Chen, L.Liu, Y.Xiang, S.

(2018) J Mol Biol 430: 1926-1939

  • DOI: https://doi.org/10.1016/j.jmb.2018.04.038
  • Primary Citation of Related Structures:
    5ZK1, 5ZKO

  • PubMed Abstract:

    The cAMP response element (CRE) binding protein (CREB) is central in the transcription regulation by cAMP, and the CREB-regulated transcriptional coactivators (CRTCs) play critical roles in CREB-mediated transcription activation. Upon stimulation, CRTCs translocate into the nucleus and complex with CREB on CRE promoters to activate target gene transcription. Their physiological importance is underscored by their function in energy balance, long-term memory, longevity and other processes. The CREB binding domain on CRTCs has been mapped, which interacts with the CREB basic leucine zipper domain that also mediates interaction with CRE-containing DNA. We report here crystal structures of a complex containing the CRTC2 CREB binding domain, the CREB basic leucine zipper domain and a CRE-containing DNA. The structures revealed that CRTC and CREB form a 2:2 complex on CRE-containing DNA, and CRTC interacts with both CREB and DNA through highly conserved residues. Structure-guided functional studies revealed that both interactions are crucial for the complex assembly and CREB stabilization on DNA. Interestingly, we found that the CRTC-DNA interaction confers selectivity toward the intrinsic DNA shape, which may play a role in selective transcription activation of the CRE genes.


  • Organizational Affiliation

    Key Laboratory of Nutrition and Metabolism, Shanghai Institutes for Biological Sciences, University of Chinese Academy of Sciences, Chinese Academy of Sciences, 320 Yueyang Road, Shanghai 200031, P.R. China.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Cyclic AMP-responsive element-binding protein 1B [auth A]59Homo sapiensMutation(s): 2
Gene Names: CREB1
UniProt & NIH Common Fund Data Resources
Find proteins for P16220 (Homo sapiens)
Explore P16220
Go to UniProtKB:  P16220
PHAROS:  P16220
GTEx:  ENSG00000118260
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP16220
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
CREB-regulated transcription coactivator 242Mus musculusMutation(s): 0
Gene Names: Crtc2Torc2
UniProt
Find proteins for Q3U182 (Mus musculus)
Explore Q3U182
Go to UniProtKB:  Q3U182
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ3U182
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 1
MoleculeChains LengthOrganismImage
DNA (5'-D(*CP*TP*TP*GP*GP*CP*TP*GP*AP*CP*GP*TP*CP*AP*GP*CP*CP*AP*AP*G)-3')A [auth B]20synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ZN
Query on ZN

Download Ideal Coordinates CCD File
D [auth A]ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
MSE
Query on MSE
C
L-PEPTIDE LINKINGC5 H11 N O2 SeMET
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.05 Å
  • R-Value Free: 0.269
  • R-Value Work: 0.228
  • R-Value Observed: 0.232
  • Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 50.271α = 90
b = 242.878β = 90
c = 40.548γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-2000data reduction
SCALEPACKdata scaling
PHASERphasing
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of ChinaChina31570743

Revision History  (Full details and data files)

  • Version 1.0: 2018-06-20
    Type: Initial release
  • Version 1.1: 2023-11-22
    Changes: Data collection, Database references, Refinement description
