5OQW

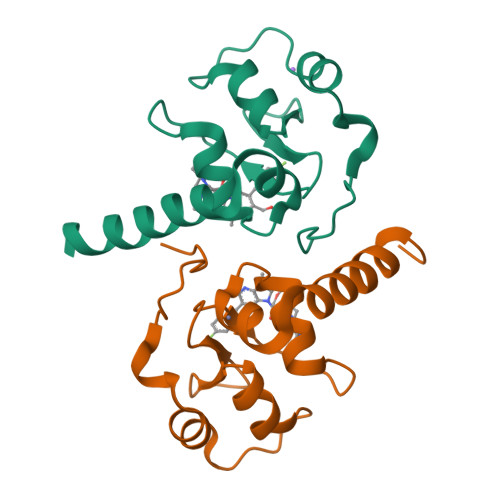

XIAP in complex with small molecule


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.31 Å
  • R-Value Free: 0.246
  • R-Value Work: 0.213
  • R-Value Observed: 0.215

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

ASTX660, a Novel Non-peptidomimetic Antagonist of cIAP1/2 and XIAP, Potently Induces TNF alpha-Dependent Apoptosis in Cancer Cell Lines and Inhibits Tumor Growth.

Ward, G.A.Lewis, E.J.Ahn, J.S.Johnson, C.N.Lyons, J.F.Martins, V.Munck, J.M.Rich, S.J.Smyth, T.Thompson, N.T.Williams, P.A.Wilsher, N.E.Wallis, N.G.Chessari, G.

(2018) Mol Cancer Ther 17: 1381-1391

  • DOI: https://doi.org/10.1158/1535-7163.MCT-17-0848
  • Primary Citation of Related Structures:
    5OQW

  • PubMed Abstract:

    Because of their roles in the evasion of apoptosis, inhibitor of apoptosis proteins (IAP) are considered attractive targets for anticancer therapy. Antagonists of these proteins have the potential to switch prosurvival signaling pathways in cancer cells toward cell death. Various SMAC-peptidomimetics with inherent cIAP selectivity have been tested clinically and demonstrated minimal single-agent efficacy. ASTX660 is a potent, non-peptidomimetic antagonist of cIAP1/2 and XIAP, discovered using fragment-based drug design. The antagonism of XIAP and cIAP1 by ASTX660 was demonstrated on purified proteins, cells, and in vivo in xenograft models. The compound binds to the isolated BIR3 domains of both XIAP and cIAP1 with nanomolar potencies. In cells and xenograft tissue, direct antagonism of XIAP was demonstrated by measuring its displacement from caspase-9 or SMAC. Compound-induced proteasomal degradation of cIAP1 and 2, resulting in downstream effects of NIK stabilization and activation of noncanonical NF-κB signaling, demonstrated cIAP1/2 antagonism. Treatment with ASTX660 led to TNFα-dependent induction of apoptosis in various cancer cell lines in vitro , whereas dosing in mice bearing breast and melanoma tumor xenografts inhibited tumor growth. ASTX660 is currently being tested in a phase I-II clinical trial (NCT02503423), and we propose that its antagonism of cIAP1/2 and XIAP may offer improved efficacy over first-generation antagonists that are more cIAP1/2 selective. Mol Cancer Ther; 17(7); 1381-91. ©2018 AACR .


  • Organizational Affiliation

    Astex Pharmaceuticals, Cambridge, United Kingdom. George.ward@astx.com.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
E3 ubiquitin-protein ligase XIAP
A, B
127Homo sapiensMutation(s): 0
Gene Names: XIAPAPI3BIRC4IAP3
EC: 2.3.2.27
UniProt & NIH Common Fund Data Resources
Find proteins for P98170 (Homo sapiens)
Explore P98170
Go to UniProtKB:  P98170
PHAROS:  P98170
GTEx:  ENSG00000101966
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP98170
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A4E
Query on A4E

Download Ideal Coordinates CCD File
E [auth A],
G [auth B]
1-[6-[(4-fluorophenyl)methyl]-5-(hydroxymethyl)-3,3-dimethyl-2~{H}-pyrrolo[3,2-b]pyridin-1-yl]-2-[(2~{R},5~{R})-5-methyl-2-[[(3~{R})-3-methylmorpholin-4-yl]methyl]piperazin-4-ium-1-yl]ethanone
C30 H43 F N5 O3
YCXOHEXZVKOGEV-DNRQZRRGSA-O
ZN
Query on ZN

Download Ideal Coordinates CCD File
C [auth A],
F [auth B]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
NA
Query on NA

Download Ideal Coordinates CCD File
D [auth A]SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
A4E Binding MOAD:  5OQW IC50: 40 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.31 Å
  • R-Value Free: 0.246
  • R-Value Work: 0.213
  • R-Value Observed: 0.215
  • Space Group: P 41 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 99.38α = 90
b = 99.38β = 90
c = 106.733γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
SCALAdata scaling
REFMACphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2018-06-27
    Type: Initial release
  • Version 1.1: 2018-07-11
    Changes: Data collection, Database references
  • Version 1.2: 2019-10-16
    Changes: Data collection
