5L8I

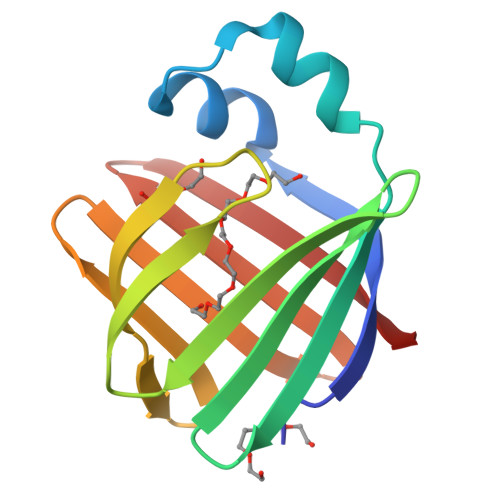

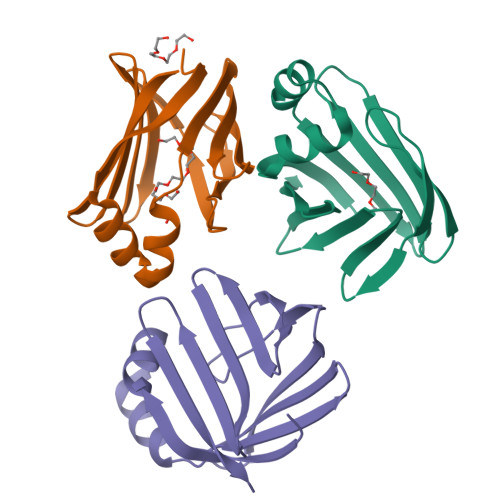

crystal structure of human FABP6 apo-protein

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.88 Å
  • R-Value Free: 0.275
  • R-Value Work: 0.240

wwPDB Validation 3D Report Full Report


This is version 1.2 of the entry. See complete history.

Literature

Identification and Investigation of Novel Binding Fragments in the Fatty Acid Binding Protein 6 (FABP6).

Hendrick, A.G., Muller, I., Willems, H., Leonard, P.M., Irving, S., Davenport, R., Ito, T., Reeves, J., Wright, S., Allen, V., Wilkinson, S., Heffron, H., Bazin, R., Turney, J., Mitchell, P.J.

(2016) J.Med.Chem. 59: 8094-8102

  • DOI: 10.1021/acs.jmedchem.6b00869
  • Primary Citation of Related Structures:

  • PubMed Abstract:

    • Fatty acid binding protein 6 (FABP6) is a potential drug discovery target, which, if inhibited, may have a therapeutic benefit for the treatment of diabetes. Currently, there are no published inhibitors of FABP6, and with the target believed to be am ...

    Fatty acid binding protein 6 (FABP6) is a potential drug discovery target, which, if inhibited, may have a therapeutic benefit for the treatment of diabetes. Currently, there are no published inhibitors of FABP6, and with the target believed to be amenable to fragment-based drug discovery, a structurally enabled program was initiated. This program successfully identified fragment hits using the surface plasmon resonance (SPR) platform. Several hits were validated with SAR and were found to be displaced by the natural ligand taurocholate. We report the first crystal structure of human FABP6 in the unbound form, in complex with cholate, and with one of the key fragments.

    Organizational Affiliation:

    Takeda Cambridge , 418 Cambridge Science Park, Cambridge CB4 0PZ, United Kingdom.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
Gastrotropin
A, B, C
128Homo sapiensMutation(s): 0
Gene Names: FABP6 (ILBP, ILLBP)
Find proteins for P51161 (Homo sapiens)
Go to Gene View: FABP6
Go to UniProtKB:  P51161
Small Molecules
Ligands 4 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
P33
Query on P33
Download SDF File
Download CCD File
B
3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL
HEPTAETHYLENE GLYCOL, PEG330
C14 H30 O8
XPJRQAIZZQMSCM-UHFFFAOYSA-N
 Ligand Interaction
PG4
Query on PG4
Download SDF File
Download CCD File
B
TETRAETHYLENE GLYCOL
C8 H18 O5
UWHCKJMYHZGTIT-UHFFFAOYSA-N
 Ligand Interaction
PGE
Query on PGE
Download SDF File
Download CCD File
A
TRIETHYLENE GLYCOL
C6 H14 O4
ZIBGPFATKBEMQZ-UHFFFAOYSA-N
 Ligand Interaction
PEG
Query on PEG
Download SDF File
Download CCD File
B
DI(HYDROXYETHYL)ETHER
C4 H10 O3
MTHSVFCYNBDYFN-UHFFFAOYSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.88 Å
  • R-Value Free: 0.275
  • R-Value Work: 0.240
  • Space Group: P 1 21 1
Unit Cell:
Length (Å)Angle (°)
a = 46.952α = 90.00
b = 64.114β = 94.55
c = 58.765γ = 90.00
Software Package:
Software NamePurpose
Aimlessdata scaling
REFMACrefinement
PHASERphasing
XDSdata reduction

Structure Validation

View Full Validation Report or Ramachandran Plots


View more in-depth experimental data

Entry History

Deposition Data

Revision History

  • Version 1.0: 2016-08-24
    Type: Initial release
  • Version 1.1: 2016-08-31
    Type: Database references
  • Version 1.2: 2016-09-21
    Type: Database references
