5JPA

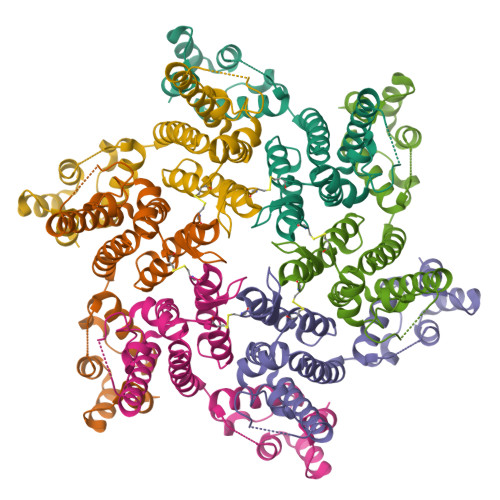

Hexameric HIV-1 CA H12Y mutant


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.232
  • R-Value Work: 0.197
  • R-Value Observed: 0.199

wwPDB Validation 3D Report Full Report



Literature

HIV-1 uses dynamic capsid pores to import nucleotides and fuel encapsidated DNA synthesis.

Jacques, D.A.McEwan, W.A.Hilditch, L.Price, A.J.Towers, G.J.James, L.C.

(2016) Nature 536: 349-353

  • DOI: 10.1038/nature19098
  • Structures With Same Primary Citation

  • PubMed Abstract:
  • During the early stages of infection, the HIV-1 capsid protects viral components from cytosolic sensors and nucleases such as cGAS and TREX, respectively, while allowing access to nucleotides for efficient reverse transcription. Here we show that eac ...

    During the early stages of infection, the HIV-1 capsid protects viral components from cytosolic sensors and nucleases such as cGAS and TREX, respectively, while allowing access to nucleotides for efficient reverse transcription. Here we show that each capsid hexamer has a size-selective pore bound by a ring of six arginine residues and a 'molecular iris' formed by the amino-terminal β-hairpin. The arginine ring creates a strongly positively charged channel that recruits the four nucleotides with on-rates that approach diffusion limits. Progressive removal of pore arginines results in a dose-dependent and concomitant decrease in nucleotide affinity, reverse transcription and infectivity. This positively charged channel is universally conserved in lentiviral capsids despite the fact that it is strongly destabilizing without nucleotides to counteract charge repulsion. We also describe a channel inhibitor, hexacarboxybenzene, which competes for nucleotide binding and efficiently blocks encapsidated reverse transcription, demonstrating the tractability of the pore as a novel drug target.


    Organizational Affiliation

    Department of Biochemistry and Molecular Biology, College of Medicine, University of Florida, Gainesville, FL 32610, USA. Electronic address: rmckenna@ufl.edu.



Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails

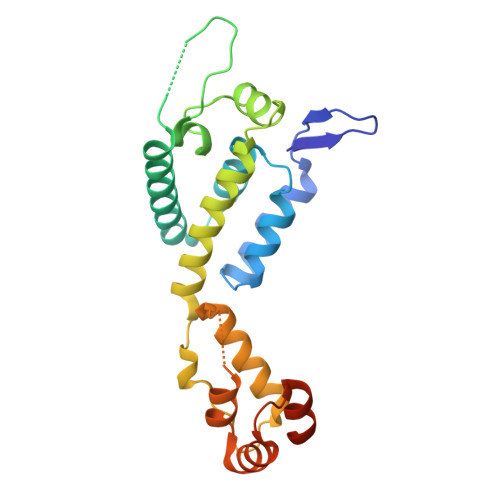

Capsid Protein P24A231Human immunodeficiency virus type 1 (NEW YORK-5 ISOLATE)Mutation(s): 5
Gene Names: gag
Find proteins for P12493 (Human immunodeficiency virus type 1 group M subtype B (isolate NY5))
Explore P12493
Go to UniProtKB:  P12493
Protein Feature View
 ( Mouse scroll to zoom / Hold left click to move )
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.232
  • R-Value Work: 0.197
  • R-Value Observed: 0.199
  • Space Group: P 6
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 90.6α = 90
b = 90.6β = 90
c = 56.931γ = 120
Software Package:
Software NamePurpose
Aimlessdata scaling
PHASERphasing
REFMACrefinement
PDB_EXTRACTdata extraction
iMOSFLMdata reduction

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Medical Research Council (United Kingdom)United KingdomUK; U105181010
European Research CouncilUnited Kingdom291627 -IAI
National Health and Medical Research CouncilAustraliaGNT1036521

Revision History

  • Version 1.0: 2016-08-10
    Type: Initial release
  • Version 1.1: 2016-08-24
    Changes: Database references
  • Version 1.2: 2016-08-31
    Changes: Database references
  • Version 2.0: 2017-09-13
    Changes: Atomic model, Author supporting evidence
