5H7O

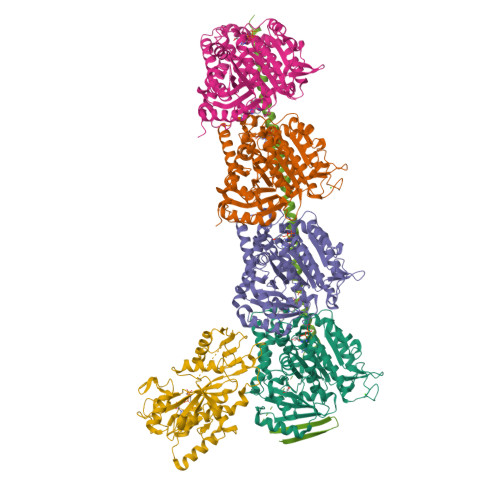

Crystal structure of DJ-101 in complex with tubulin protein


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.8 Å
  • R-Value Free: 0.256
  • R-Value Work: 0.214

wwPDB Validation 3D Report Full Report


This is version 1.1 of the entry. See complete history

Literature

A Potent, Metabolically Stable Tubulin Inhibitor Targets the Colchicine Binding Site and Overcomes Taxane Resistance.

Arnst, K.E.Wang, Y.Hwang, D.J.Xue, Y.Costello, T.Hamilton, D.Chen, Q.Yang, J.Park, F.Dalton, J.T.Miller, D.D.Li, W.

(2018) Cancer Res. 78: 265-277

  • DOI: 10.1158/0008-5472.CAN-17-0577

  • PubMed Abstract:
  • Antimitotics that target tubulin are among the most useful chemotherapeutic drugs, but their clinical activity is often limited by the development of multidrug resistance. We recently discovered the novel small-molecule DJ101 as a potent and metaboli ...

    Antimitotics that target tubulin are among the most useful chemotherapeutic drugs, but their clinical activity is often limited by the development of multidrug resistance. We recently discovered the novel small-molecule DJ101 as a potent and metabolically stable tubulin inhibitor that can circumvent the drug efflux pumps responsible for multidrug resistance of existing tubulin inhibitors. In this study, we determined the mechanism of action of this drug. The basis for its activity was illuminated by solving the crystal structure of DJ101 in complex with tubulin at a resolution of 2.8Å. Investigations of the potency of DJ101 in a panel of human metastatic melanoma cell lines harboring major clinically relevant mutations defined IC50 values of 7-10 nmol/L. In cells, DJ101 disrupted microtubule networks, suppressed anchorage-dependent melanoma colony formation, and impaired cancer cell migration. In melanoma-bearing mice, DJ101 administration inhibited tumor growth and reduced lung metastasis in the absence of observable toxicity. DJ101 also completely inhibited tumor growth in a paclitaxel-resistant xenograft mouse model of human prostate cancer (PC-3/TxR), where paclitaxel was minimally effective. Our findings offer preclinical proof of concept for the continued development of DJ101 as a next-generation tubulin inhibitor for cancer therapy.Significance: These findings offer preclinical proof of concept for the continued development of DJ101 as a next-generation antitubulin drug for cancer therapy. Cancer Res; 78(1); 265-77. ©2017 AACR.


    Organizational Affiliation

    Department of Pharmaceutical Sciences, College of Pharmacy, University of Tennessee Health Science Center, Memphis, Tennessee.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
Tubulin alpha-1B chain
A, C
450Sus scrofaMutation(s): 0
Gene Names: TUBA1B
Find proteins for Q2XVP4 (Sus scrofa)
Go to Gene View: TUBA1B
Go to UniProtKB:  Q2XVP4
Entity ID: 2
MoleculeChainsSequence LengthOrganismDetails
Tubulin beta-2B chain
B, D
445Bos taurusMutation(s): 0
Gene Names: TUBB2B
Find proteins for Q6B856 (Bos taurus)
Go to Gene View: TUBB2B
Go to UniProtKB:  Q6B856
Entity ID: 3
MoleculeChainsSequence LengthOrganismDetails
Stathmin-4
E
143Rattus norvegicusMutation(s): 0
Gene Names: Stmn4
Find proteins for P63043 (Rattus norvegicus)
Go to UniProtKB:  P63043
Entity ID: 4
MoleculeChainsSequence LengthOrganismDetails
Tubulin tyrosine ligase
F
384Gallus gallusMutation(s): 0
Gene Names: TTL
Find proteins for E1BQ43 (Gallus gallus)
Go to Gene View: TTL
Go to UniProtKB:  E1BQ43
Small Molecules
Ligands 8 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
GDP
Query on GDP

Download SDF File
Download CCD File
B
GUANOSINE-5'-DIPHOSPHATE
C10 H15 N5 O11 P2
QGWNDRXFNXRZMB-UUOKFMHZSA-N
 Ligand Interaction
7Q7
Query on 7Q7

Download SDF File
Download CCD File
B, D
2-(1H-indol-4-yl)-4-(3,4,5-trimethoxyphenyl)-1H-imidazo[4,5-c]pyridine
C23 H20 N4 O3
GZJHBGSBVSNHCJ-UHFFFAOYSA-N
 Ligand Interaction
GTP
Query on GTP

Download SDF File
Download CCD File
A, C, D
GUANOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O14 P3
XKMLYUALXHKNFT-UUOKFMHZSA-N
 Ligand Interaction
GOL
Query on GOL

Download SDF File
Download CCD File
A
GLYCEROL
GLYCERIN; PROPANE-1,2,3-TRIOL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
 Ligand Interaction
CA
Query on CA

Download SDF File
Download CCD File
A, C
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
 Ligand Interaction
MG
Query on MG

Download SDF File
Download CCD File
A, B, C, D
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
 Ligand Interaction
MES
Query on MES

Download SDF File
Download CCD File
B
2-(N-MORPHOLINO)-ETHANESULFONIC ACID
C6 H13 N O4 S
SXGZJKUKBWWHRA-UHFFFAOYSA-N
 Ligand Interaction
ACP
Query on ACP

Download SDF File
Download CCD File
F
PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER
ADENOSINE-5'-[BETA, GAMMA-METHYLENE]TRIPHOSPHATE
C11 H18 N5 O12 P3
UFZTZBNSLXELAL-IOSLPCCCSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.8 Å
  • R-Value Free: 0.256
  • R-Value Work: 0.214
  • Space Group: P 21 21 21
Unit Cell:
Length (Å)Angle (°)
a = 105.199α = 90.00
b = 157.029β = 90.00
c = 182.576γ = 90.00
Software Package:
Software NamePurpose
HKL-3000data scaling
REFMACrefinement
MOLREPphasing
HKL-3000data reduction

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Cancer InstituteUnited StatesR01CA148706

Revision History

  • Version 1.0: 2017-12-13
    Type: Initial release
  • Version 1.1: 2018-01-17
    Type: Data collection, Database references
