5F41

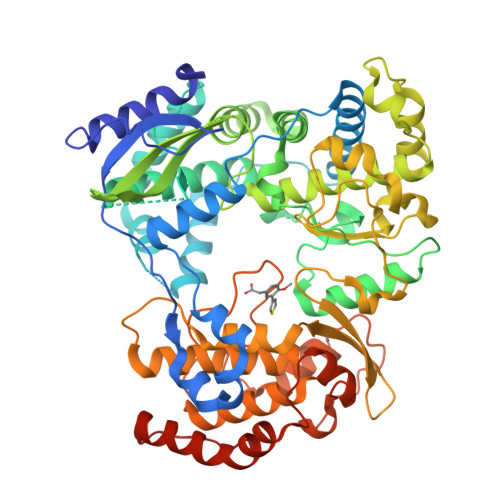

DENGUE SEROTYPE 3 RNA-DEPENDENT RNA POLYMERASE BOUND TO FD-83-KI26


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.224
  • R-Value Work: 0.186
  • R-Value Observed: 0.188

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

A Conserved Pocket in the Dengue Virus Polymerase Identified through Fragment-based Screening

Noble, C.G.Lim, S.P.Arora, R.Yokokawa, F.Nilar, S.Seh, C.C.Wright, S.K.Benson, T.E.Smith, P.W.Shi, P.Y.

(2016) J Biol Chem 291: 8541-8548

  • DOI: 10.1074/jbc.M115.710731
  • Primary Citation of Related Structures:
    5F3Z, 5F3T, 5F41

  • PubMed Abstract:
  • We performed a fragment screen on the dengue virus serotype 3 RNA-dependent RNA polymerase using x-ray crystallography. A screen of 1,400 fragments in pools of eight identified a single hit that bound in a novel pocket in the protein. This pocket is located in the polymerase palm subdomain and conserved across the four serotypes of dengue virus ...

    We performed a fragment screen on the dengue virus serotype 3 RNA-dependent RNA polymerase using x-ray crystallography. A screen of 1,400 fragments in pools of eight identified a single hit that bound in a novel pocket in the protein. This pocket is located in the polymerase palm subdomain and conserved across the four serotypes of dengue virus. The compound binds to the polymerase in solution as evidenced by surface plasmon resonance and isothermal titration calorimetry analyses. Related compounds where a phenyl is replaced by a thiophene show higher affinity binding, indicating the potential for rational design. Importantly, inhibition of enzyme activity correlated with the binding affinity, showing that the pocket is functionally important for polymerase activity. This fragment is an excellent starting point for optimization through rational structure-based design.


    Organizational Affiliation

    From the Novartis Institute for Tropical Diseases, 05-01 Chromos, Singapore 138670, the Department of Biochemistry and Molecular Biology, Sealy Center for Structural Biology and Molecular Biophysics, University of Texas Medical Branch, Galveston, Texas 77555 peshi@utmb.edu.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Genome polyproteinA635Dengue virus 3Mutation(s): 1
EC: 3.4.21.91 (UniProt), 3.6.1.15 (UniProt), 3.6.4.13 (UniProt), 2.1.1.56 (UniProt), 2.1.1.57 (UniProt), 2.7.7.48 (UniProt)
Find proteins for Q6YMS4 (Dengue virus type 3 (strain Sri Lanka/1266/2000))
Explore Q6YMS4
Go to UniProtKB:  Q6YMS4
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
5V6
Query on 5V6

Download Ideal Coordinates CCD File
D [auth A]2-(4-methoxy-3-thiophen-3-yl-phenyl)ethanoic acid
C13 H12 O3 S
JRNVDXIGCSDEEN-UHFFFAOYSA-N
 Ligand Interaction
ZN
Query on ZN

Download Ideal Coordinates CCD File
B [auth A], C [auth A]ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
 Ligand Interaction
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
5V6Kd:  67000   nM  Binding MOAD
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.224
  • R-Value Work: 0.186
  • R-Value Observed: 0.188
  • Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 161.7α = 90
b = 178.33β = 90
c = 57.93γ = 90
Software Package:
Software NamePurpose
SCALAdata scaling
BUSTER-TNTrefinement
PDB_EXTRACTdata extraction
SCALAdata scaling
BUSTER-TNTphasing

Structure Validation

View Full Validation Report



Entry History

Deposition Data

  • Deposited Date: 2015-12-03
  • Released Date: 2016-02-24
  • Deposition Author(s): Noble, C.G.

Revision History  (Full details and data files)

  • Version 1.0: 2016-02-24
    Type: Initial release
  • Version 1.1: 2016-03-02
    Changes: Other
  • Version 1.2: 2016-06-08
    Changes: Database references
