5DIT

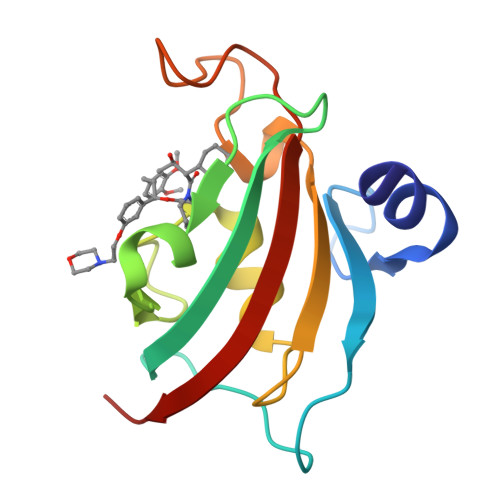

The Fk1 domain of FKBP51 in complex with the new synthetic ligand (1R)-3-(3,4-dimethoxyphenyl)-1-f3-[2-(morpholin-4-yl)ethoxy]phenylgpropyl(2S)-1-[(2S,3R)-2-cyclohexyl-3-hydroxybutanoyl]piperidine-2-carboxylate


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.25 Å
  • R-Value Free: 0.284
  • R-Value Work: 0.211
  • R-Value Observed: 0.214

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structure-Affinity Relationship Analysis of Selective FKBP51 Ligands.

Feng, X.Sippel, C.Bracher, A.Hausch, F.

(2015) J Med Chem 58: 7796-7806

  • DOI: 10.1021/acs.jmedchem.5b00785
  • Primary Citation of Related Structures:
    5DIT

  • PubMed Abstract:
  • The FK506-binding protein 51 (FKBP51) is a promising drug target for the treatment of stress-related psychiatric or metabolic disorders. Just recently, the first selective ligands for FKBP51 were reported based on an induced fit mechanism, but they are too large for a further drug development process ...

    The FK506-binding protein 51 (FKBP51) is a promising drug target for the treatment of stress-related psychiatric or metabolic disorders. Just recently, the first selective ligands for FKBP51 were reported based on an induced fit mechanism, but they are too large for a further drug development process. We therefore designed and synthesized a novel series of selective ligands to explore the requirements necessary for binding to the induced-fit conformation. All ligands of this series show no binding toward the structurally very similar antitarget FKBP52. With the cocrystal structure of the best ligand in this novel series we confirmed the induced fit mechanism. Furthermore, the structure-affinity relationship provides information about beneficial structural features, which is valuable for the development of improved FKBP51-directed drugs.


    Organizational Affiliation

    Department of Translational Research in Psychiatry, Max Planck Institute of Psychiatry , Kraepelinstrasse 2, 80804 Munich, Germany.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Peptidyl-prolyl cis-trans isomerase FKBP5A128Homo sapiensMutation(s): 1
Gene Names: FKBP5AIG6FKBP51
EC: 5.2.1.8
UniProt & NIH Common Fund Data Resources
Find proteins for Q13451 (Homo sapiens)
Explore Q13451
Go to UniProtKB:  Q13451
PHAROS:  Q13451
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
5B8
Query on 5B8

Download Ideal Coordinates CCD File
B [auth A](1R)-3-(3,4-dimethoxyphenyl)-1-{3-[2-(morpholin-4-yl)ethoxy]phenyl}propyl (2S)-1-[(2S,3R)-2-cyclohexyl-3-hydroxybutanoyl]piperidine-2-carboxylate
C39 H56 N2 O8
RUPZPRKPEAFHDB-JEPHQYQUSA-N
 Ligand Interaction
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
5B8Ki:  700   nM  Binding MOAD
5B8Ki:  700   nM  BindingDB
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.25 Å
  • R-Value Free: 0.284
  • R-Value Work: 0.211
  • R-Value Observed: 0.214
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 43.371α = 90
b = 50.22β = 90
c = 61.811γ = 90
Software Package:
Software NamePurpose
Aimlessdata scaling
MOLREPphasing
REFMACrefinement
PDB_EXTRACTdata extraction
XDSdata reduction

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2015-10-14
    Type: Initial release
  • Version 1.1: 2015-10-21
    Changes: Database references
