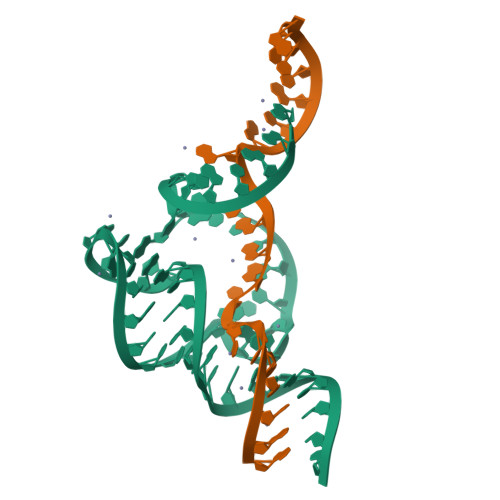

Two divalent metal ions and conformational changes play roles in the hammerhead ribozyme cleavage reaction- G12A mutant in Zn2+

  • Classification: RNA
  • Organism(s): synthetic construct
  • Mutation(s): No

  • Deposited: 2015-08-29 Released: 2015-10-07
  • Deposition Author(s): Mir, A., Chen, J., Neau, D., Golden, B.L.
  • Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

  • Resolution: 3.30 Å
  • R-Value Free: 0.252
  • R-Value Work: 0.217
  • R-Value Observed: 0.220

wwPDB Validation   3D Report Full Report

This is version 1.4 of the entry. See complete history


Two Divalent Metal Ions and Conformational Changes Play Roles in the Hammerhead Ribozyme Cleavage Reaction.

Mir, A.Chen, J.Robinson, K.Lendy, E.Goodman, J.Neau, D.Golden, B.L.

(2015) Biochemistry 54: 6369-6381

  • DOI: https://doi.org/10.1021/acs.biochem.5b00824
  • Primary Citation of Related Structures:
    5DH6, 5DH7, 5DH8, 5DI2, 5DI4, 5DQK

  • PubMed Abstract:

    The hammerhead ribozyme is a self-cleaving RNA broadly dispersed across all kingdoms of life. Although it was the first of the small, nucleolytic ribozymes discovered, the mechanism by which it catalyzes its reaction remains elusive. The nucleobase of G12 is well positioned to be a general base, but it is unclear if or how this guanine base becomes activated for proton transfer. Metal ions have been implicated in the chemical mechanism, but no interactions between divalent metal ions and the cleavage site have been observed crystallographically. To better understand how this ribozyme functions, we have solved crystal structures of wild-type and G12A mutant ribozymes. We observe a pH-dependent conformational change centered around G12, consistent with this nucleotide becoming deprotonated. Crystallographic and kinetic analysis of the G12A mutant reveals a Zn(2+) specificity switch suggesting a direct interaction between a divalent metal ion and the purine at position 12. The metal ion specificity switch and the pH-rate profile of the G12A mutant suggest that the minor imino tautomer of A12 serves as the general base in the mutant ribozyme. We propose a model in which the hammerhead ribozyme rearranges prior to the cleavage reaction, positioning two divalent metal ions in the process. The first metal ion, positioned near G12, becomes directly coordinated to the O6 keto oxygen, to lower the pKa of the general base and organize the active site. The second metal ion, positioned near G10.1, bridges the N7 of G10.1 and the scissile phosphate and may participate directly in the cleavage reaction.

  • Organizational Affiliation

    Department of Biochemistry, Purdue University , West Lafayette, Indiana 47907, United States.

Find similar nucleic acids by: 3D Structure
Entity ID: 1
MoleculeChains LengthOrganismImage
RNA (48-MER)48synthetic construct
Sequence Annotations
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains LengthOrganismImage
5'-R(*GP*GP*GP*CP*GP*U)-D(P*C)-R(P*UP*GP*GP*GP*CP*AP*GP*UP*AP*CP*CP*CP*A)-3'20synthetic construct
Sequence Annotations
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
Query on ZN

Download Ideal Coordinates CCD File
C [auth A]
D [auth A]
E [auth A]
F [auth A]
G [auth A]
C [auth A],
D [auth A],
E [auth A],
F [auth A],
G [auth A],
H [auth A],
I [auth A],
J [auth A],
K [auth B],
L [auth B],
M [auth B],
N [auth B],
O [auth B]
Experimental Data & Validation

Experimental Data

  • Resolution: 3.30 Å
  • R-Value Free: 0.252
  • R-Value Work: 0.217
  • R-Value Observed: 0.220
  • Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 80.937α = 90
b = 86.012β = 90
c = 103.368γ = 90
Software Package:
Software NamePurpose
HKL-2000data reduction
HKL-2000data scaling

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR01GM095923

Revision History  (Full details and data files)

  • Version 1.0: 2015-10-07
    Type: Initial release
  • Version 1.1: 2015-11-04
    Changes: Database references
  • Version 1.2: 2017-09-27
    Changes: Author supporting evidence, Database references, Derived calculations
  • Version 1.3: 2019-12-25
    Changes: Author supporting evidence
  • Version 1.4: 2024-03-06
    Changes: Data collection, Database references, Derived calculations
