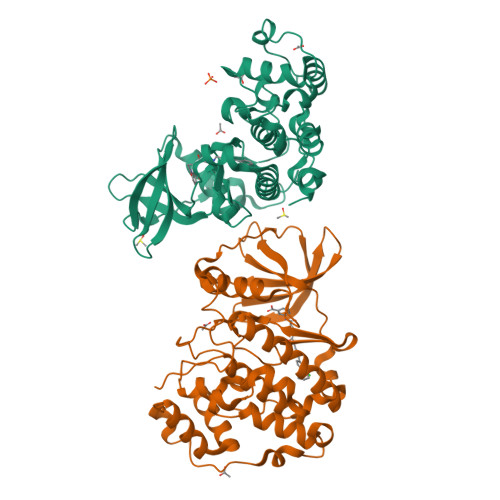

Crystal structure of CK2alpha bound to CAM4066

Experimental Data Snapshot

  • Resolution: 1.79 Å
  • R-Value Free: 0.202
  • R-Value Work: 0.183
  • R-Value Observed: 0.184

wwPDB Validation   3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.3 of the entry. See complete history


Specific inhibition of CK2 alpha from an anchor outside the active site.

Brear, P.De Fusco, C.Hadje Georgiou, K.Francis-Newton, N.J.Stubbs, C.J.Sore, H.F.Venkitaraman, A.R.Abell, C.Spring, D.R.Hyvonen, M.

(2016) Chem Sci 7: 6839-6845

  • DOI: https://doi.org/10.1039/c6sc02335e
  • Primary Citation of Related Structures:
    5CLP, 5CS6, 5CSH, 5CSP, 5CSV, 5CU3, 5CU4, 5CU6, 5CVF, 5CVG, 5CVH

  • PubMed Abstract:

    The development of selective inhibitors of protein kinases is challenging because of the significant conservation of the ATP binding site. Here, we describe a new mechanism by which the protein kinase CK2α can be selectively inhibited using features outside the ATP site. We have identified a new binding site for small molecules on CK2α adjacent to the ATP site and behind the αD loop, termed the αD pocket. An elaborated fragment anchored in this site has been linked with a low affinity fragment binding in the ATP site, creating a novel and selective inhibitor (CAM4066) that binds CK2α with a K d of 320 nM and shows significantly improved selectivity compared to other CK2α inhibitors. CAM4066 shows target engagement in several cell lines and similar potency to clinical trial candidate CX4945. Our data demonstrate that targeting a poorly conserved, cryptic pocket allows inhibition of CK2α via a novel mechanism, enabling the development of a new generation of selective CK2α inhibitors.

  • Organizational Affiliation

    Department of Biochemistry , University of Cambridge , 80 Tennis Court Road , Cambridge CB2 1GA , UK . Email: mh256@cam.ac.uk.

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Casein kinase II subunit alpha
A, B
352Homo sapiensMutation(s): 1
Gene Names: CSNK2A1CK2A1
UniProt & NIH Common Fund Data Resources
Find proteins for P68400 (Homo sapiens)
Explore P68400
Go to UniProtKB:  P68400
PHAROS:  P68400
GTEx:  ENSG00000101266
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP68400
Sequence Annotations
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
Query on 54S

Download Ideal Coordinates CCD File
F [auth A],
K [auth B]
C26 H26 Cl N3 O4
Query on PO4

Download Ideal Coordinates CCD File
O4 P
Query on DMS

Download Ideal Coordinates CCD File
G [auth A],
L [auth B]
C2 H6 O S
Query on ACT

Download Ideal Coordinates CCD File
C [auth A],
D [auth A],
E [auth A],
I [auth B],
J [auth B]
C2 H3 O2
Binding Affinity Annotations
IDSourceBinding Affinity
54S BindingDB:  5CU3 Kd: min: 310, max: 320 (nM) from 2 assay(s)
IC50: min: 370, max: 670 (nM) from 2 assay(s)
Binding MOAD:  5CU3 Kd: 320 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Resolution: 1.79 Å
  • R-Value Free: 0.202
  • R-Value Work: 0.183
  • R-Value Observed: 0.184
  • Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 65.28α = 90
b = 66.333β = 90
c = 333.618γ = 90
Software Package:
Software NamePurpose
Aimlessdata scaling
PDB_EXTRACTdata extraction
XDSdata reduction

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
Wellcome TrustUnited Kingdom090340/Z/09/Z

Revision History  (Full details and data files)

  • Version 1.0: 2016-07-27
    Type: Initial release
  • Version 1.1: 2017-05-10
    Changes: Database references
  • Version 1.2: 2023-11-01
    Changes: Data collection, Database references, Structure summary
  • Version 1.3: 2024-01-10
    Changes: Refinement description
