5CNY

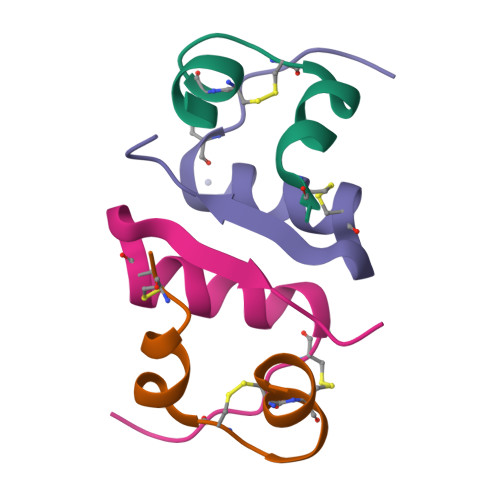

Crystal Structure of human zinc insulin at pH 5.5


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.213
  • R-Value Work: 0.155
  • R-Value Observed: 0.158

wwPDB Validation 3D Report Full Report



Literature

Crystal Structure of human zinc insulin at pH 5.5

Palmieri, L.C.Lima, L.M.T.R.

To be published.

Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
Insulin
A, C
21Homo sapiensMutation(s): 0
Gene Names: INS
Find proteins for P01308 (Homo sapiens)
Go to UniProtKB:  P01308
NIH Common Fund Data Resources
PHAROS  P01308

Find similar proteins by: Sequence  |  Structure

Entity ID: 2
MoleculeChainsSequence LengthOrganismDetails
Insulin
B, D
30Homo sapiensMutation(s): 0
Gene Names: INS
Find proteins for P01308 (Homo sapiens)
Go to UniProtKB:  P01308
NIH Common Fund Data Resources
PHAROS  P01308
Small Molecules
Ligands 2 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
ZN
Query on ZN

Download CCD File
B, D
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
 Ligand Interaction
CL
Query on CL

Download CCD File
B, D
CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.213
  • R-Value Work: 0.155
  • R-Value Observed: 0.158
  • Space Group: H 3
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 81.76α = 90
b = 81.76β = 90
c = 33.738γ = 120
Software Package:
Software NamePurpose
CrysalisProdata collection
Aimlessdata scaling
REFMACphasing
PDB_EXTRACTdata extraction
CrysalisProdata reduction
REFMACrefinement

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History

  • Version 1.0: 2015-08-26
    Type: Initial release
