Download MendeleyNew classes of carbonic anhydrase inhibitors
Ferraroni, M., Supuran, C.T., Carta, F., Bozdag, M., Scozzafava, A.To be published.
4WL4

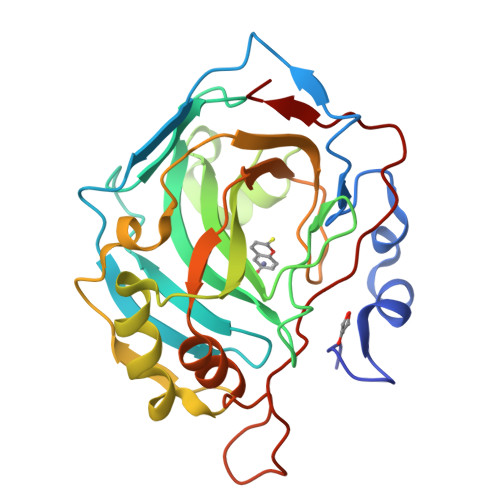

Crystal structure of human carbonic anhydrase II in complex with the 6-hydroxy-chromene-2-thione inhibitor
- PDB DOI: https://doi.org/10.2210/pdb4WL4/pdb
- Classification: LYASE
- Organism(s): Homo sapiens
- Mutation(s): No
- Deposited: 2014-10-06 Released: 2015-10-14
Experimental Data Snapshot
- Method: X-RAY DIFFRACTION
- Resolution: 1.10 Å
- R-Value Free: 0.130
- R-Value Work: 0.109
- R-Value Observed: 0.110
This is version 1.0 of the entry. See complete history.
Literature
To be published.
Macromolecules
Find similar proteins by:
(by identity cutoff) | 3D Structure
Entity ID: 1 | |||||
|---|---|---|---|---|---|
| Molecule | Chains | Sequence Length | Organism | Details | Image |
| Carbonic anhydrase 2 | A | 260 | Homo sapiens | Mutation(s): 0 Gene Names: CA2 EC: 4.2.1.1 (PDB Primary Data), 4.2.1.69 (UniProt) |  |
UniProt & NIH Common Fund Data Resources | |||||
Find proteins for P00918 (Homo sapiens) Explore P00918 Go to UniProtKB: P00918 | |||||
PHAROS: P00918 | |||||
Entity Groups | |||||
| Sequence Clusters | 30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity | ||||
| UniProt Group | P00918 | ||||
Protein Feature ViewExpand | |||||
| |||||
Small Molecules
| Ligands 3 Unique | |||||
|---|---|---|---|---|---|
| ID | Chains | Name / Formula / InChI Key | 2D Diagram | 3D Interactions | |
| FC5 Query on FC5 | C [auth A] | 6-hydroxy-2H-chromene-2-thione C9 H6 O2 S FGHZVFOCIYABBE-UHFFFAOYSA-N |  | Ligand Interaction | |
| ZN Query on ZN | B [auth A] | ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N |  | Ligand Interaction | |
| EDO Query on EDO | D [auth A] | 1,2-ETHANEDIOL C2 H6 O2 LYCAIKOWRPUZTN-UHFFFAOYSA-N |  | Ligand Interaction | |
Experimental Data & Validation
Experimental Data
- Method: X-RAY DIFFRACTION
- Resolution: 1.10 Å
- R-Value Free: 0.130
- R-Value Work: 0.109
- R-Value Observed: 0.110
- Space Group: P 1 21 1
Unit Cell:
| Length ( Å ) | Angle ( ˚ ) |
|---|---|
| a = 42.264 | α = 90 |
| b = 41.367 | β = 104.21 |
| c = 72.276 | γ = 90 |
| Software Name | Purpose |
|---|---|
| XDS | data reduction |
| REFMAC | refinement |
| PDB_EXTRACT | data extraction |
| XSCALE | data scaling |
| MOLREP | phasing |
| XSCALE | data reduction |
Entry History
Deposition Data
- Released Date: 2015-10-14 Deposition Author(s): Ferraroni, M.
Revision History (Full details and data files)
- Version 1.0: 2015-10-14
Type: Initial release
