4RUZ

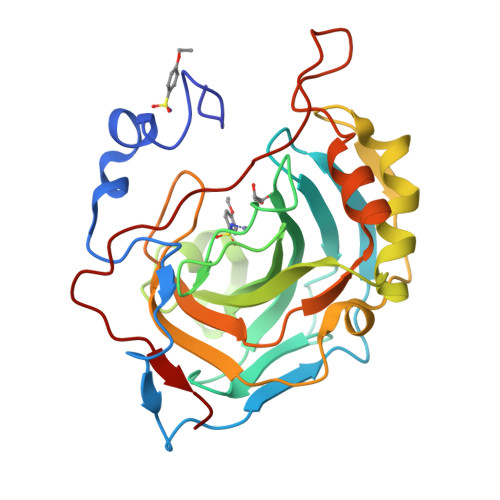

Crystal structure of human Carbonic Anhydrase II in complex with 4-ethoxybenzenesulfonamide


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.63 Å
  • R-Value Free: 0.192
  • R-Value Work: 0.154

wwPDB Validation 3D Report Full Report


This is version 1.1 of the entry. See complete history

Literature

A class of sulfonamide carbonic anhydrase inhibitors with neuropathic pain modulating effects.

Carta, F.Di Cesare Mannelli, L.Pinard, M.Ghelardini, C.Scozzafava, A.McKenna, R.Supuran, C.T.

(2015) Bioorg.Med.Chem. 23: 1828-1840

  • DOI: 10.1016/j.bmc.2015.02.027
  • Primary Citation of Related Structures:

  • PubMed Abstract:
  • A series of benzene sulfonamide carbonic anhydrase (CA, EC 4.2.1.1) inhibitors which incorporate lipophilic 4-alkoxy- and 4-aryloxy moieties, together with several derivatives of ethoxzolamide and sulfanilamide are reported. These derivatives were in ...

    A series of benzene sulfonamide carbonic anhydrase (CA, EC 4.2.1.1) inhibitors which incorporate lipophilic 4-alkoxy- and 4-aryloxy moieties, together with several derivatives of ethoxzolamide and sulfanilamide are reported. These derivatives were investigated as inhibitors of the metalloenzyme carbonic anhydrase (CA, EC 4.2.1.1) of which multiple isoforms are known, and some appear to be involved in pain. These sulfonamides showed modest inhibition against the cytosolic isoform CA I, but were generally effective, low nanomolar CA II, VII, IX and XII inhibitors. X-ray crystallographic data for the adduct of several such sulfonamides with CA II allowed us to rationalize the good inhibition data. In a mice model of neuropathic pain induced by oxaliplatin, one of the strong CA II/VII inhibitors reported here induced a long lasting pain relieving effect, a fact never observed earlier. This is the first report of rationally designed sulfonamide CA inhibitors with pain effective modulating effects.


    Organizational Affiliation

    Università degli Studi di Firenze, Laboratorio di Chimica Bioinorganica, Rm. 188, Via della Lastruccia 3, 50019 Sesto Fiorentino, Florence, Italy.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
Carbonic anhydrase 2
A
260Homo sapiensGene Names: CA2
EC: 4.2.1.1
Find proteins for P00918 (Homo sapiens)
Go to Gene View: CA2
Go to UniProtKB:  P00918
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
ZN
Query on ZN

Download SDF File
Download CCD File
A
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
 Ligand Interaction
GOL
Query on GOL

Download SDF File
Download CCD File
A
GLYCEROL
GLYCERIN; PROPANE-1,2,3-TRIOL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
 Ligand Interaction
3W8
Query on 3W8

Download SDF File
Download CCD File
A
4-ethoxybenzenesulfonamide
C8 H11 N O3 S
ILKGEOVHANZEFC-UHFFFAOYSA-N
 Ligand Interaction
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
3W8Ki: 23 nM (100) BINDINGDB
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.63 Å
  • R-Value Free: 0.192
  • R-Value Work: 0.154
  • Space Group: P 1 21 1
Unit Cell:
Length (Å)Angle (°)
a = 42.308α = 90.00
b = 41.183β = 104.28
c = 71.897γ = 90.00
Software Package:
Software NamePurpose
PDB_EXTRACTdata extraction
HKL-2000data collection
SCALEPACKdata scaling
PHENIXrefinement
HKL-2000data reduction
PHENIXphasing
DENZOdata reduction
HKL-2000data scaling

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History

Deposition Data

Revision History

  • Version 1.0: 2015-04-22
    Type: Initial release
  • Version 1.1: 2017-11-22
    Type: Refinement description
