4LKM

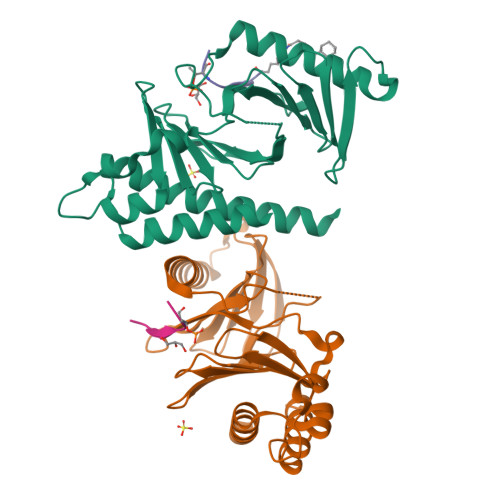

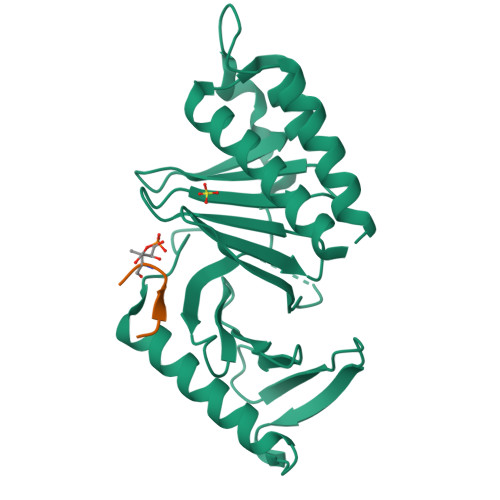

Crystal structure of Plk1 Polo-box domain in complex with PL-74

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.235
  • R-Value Work: 0.202

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history.


Literature

Exploring the binding nature of pyrrolidine pocket-dependent interactions in the polo-box domain of polo-like kinase 1

Murugan, R.N., Ahn, M., Lee, W.C., Kim, H.Y., Song, J.H., Cheong, C., Hwang, E., Seo, J.H., Shin, S.Y., Choi, S.H., Park, J.E., Bang, J.K.

(2013) PLoS One 8: e80043-e80043

  • DOI: https://doi.org/10.1371/journal.pone.0080043
  • Primary Citation of Related Structures:
    4LKL, 4LKM

  • PubMed Abstract:

    • Over the years, a great deal of effort has been focused on the design and synthesis of potent, linear peptide inhibitors targeting the polo-like kinase 1 (Plk1), which is critically involved in multiple mitotic processes and has been established as an adverse prognostic marker for tumor patients ...

    Over the years, a great deal of effort has been focused on the design and synthesis of potent, linear peptide inhibitors targeting the polo-like kinase 1 (Plk1), which is critically involved in multiple mitotic processes and has been established as an adverse prognostic marker for tumor patients. Plk1 localizes to its intracellular anchoring sites via its polo-box domain, and inhibiting the Plk1 polo-box domain has been considered as an approach to circumvent the specificity problems associated with inhibiting the conserved adenosine triphosphate-binding pocket. The polo-box domain consists of two different binding regions, such as the unique, broader pyrrolidine-binding pocket and the conserved, narrow, Tyr-rich hydrophobic channel, among the three Plk polo-box domains (Plks 1-3), respectively. Therefore, the studies that provide insights into the binding nature of the unique, broader pyrrolidine-binding pocket might lead to the development of selective Plk1-inhibitory compounds.

    Organizational Affiliation:

    Division of Magnetic Resonance, Korea Basic Science Institute, Ochang, Chung-Buk, Republic of Korea.



Macromolecules
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Serine/threonine-protein kinase PLK1A, C231Homo sapiensMutation(s): 0
Gene Names: PLK1, PLK
EC: 2.7.11.21
UniProt & NIH Common Fund Data Resources
Find proteins for P53350 (Homo sapiens)
Explore P53350
Go to UniProtKB:  P53350
PHAROS:  P53350
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP53350
Protein Feature View
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChainsSequence LengthOrganismDetailsImage
PL-74B, D8N/AMutation(s): 0
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
5PV
Query on 5PV
Download Ideal Coordinates CCD File
F [auth B]5-PHENYLVALERIC ACID
C11 H14 O2
BYHDDXPKOZIZRV-UHFFFAOYSA-N		 Ligand Interaction
SO4
Query on SO4
Download Ideal Coordinates CCD File
E [auth A],
I [auth C]		SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L		 Ligand Interaction
GOL
Query on GOL
Download Ideal Coordinates CCD File
H [auth B],
J [auth D]		GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N		 Ligand Interaction
LYT
Query on LYT
Download Ideal Coordinates CCD File
G [auth B]BUTYLAMINE
C4 H11 N
HQABUPZFAYXKJW-UHFFFAOYSA-N		 Ligand Interaction
Modified Residues  1 Unique
IDChainsTypeFormula2D DiagramParent
TPO
Query on TPO		B, D L-PEPTIDE LINKINGC4 H10 N O6 PTHR
Biologically Interesting Molecules (External Reference) 1 Unique
Entity ID: 2
IDChainsNameType/Class2D Diagram3D Interactions
PRD_001159
Query on PRD_001159		B, DPL-74Peptide-like / Inhibitor Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.235
  • R-Value Work: 0.202
  • Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 79.6α = 90
b = 82β = 90
c = 151.72γ = 90
Software Package:
Software NamePurpose
DENZOdata reduction
SCALEPACKdata scaling
MOLREPphasing
CNSrefinement
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


View more in-depth experimental data
Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2013-12-11
    Type: Initial release
