4X5Z | pdb_00004x5z

menin in complex with MI-136

• PDB DOI: https://doi.org/10.2210/pdb4X5Z/pdb

• Classification: protein binding/inhibitor
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): Yes


• Deposited: 2014-12-06 Released: 2015-04-15
• Deposition Author(s): Pollock, J., Borkin, D., Cierpicki, T., Grembecka, J.
• Funding Organization(s): National Institutes of Health/National Cancer Institute (NIH/NCI)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.86 Å
• R-Value Free:
  0.208 (Depositor), 0.218 (DCC)
• R-Value Work:
  0.162 (Depositor), 0.174 (DCC)
• R-Value Observed:
  0.165 (Depositor)

Starting Model: experimental

Literature

Pharmacologic Inhibition of the Menin-MLL Interaction Blocks Progression of MLL Leukemia In Vivo.

Borkin, D., He, S., Miao, H., Kempinska, K., Pollock, J., Chase, J., Purohit, T., Malik, B., Zhao, T., Wang, J., Wen, B., Zong, H., Jones, M., Danet-Desnoyers, G., Guzman, M.L., Talpaz, M., Bixby, D.L., Sun, D., Hess, J.L., Muntean, A.G., Maillard, I., Cierpicki, T., Grembecka, J.

(2015) Cancer Cell 27: 589-602

• PubMed: 25817203
• DOI: https://doi.org/10.1016/j.ccell.2015.02.016
• Primary Citation Related Structures:
  4X5Y, 4X5Z


• PubMed Abstract:


  Chromosomal translocations affecting mixed lineage leukemia gene (MLL) result in acute leukemias resistant to therapy. The leukemogenic activity of MLL fusion proteins is dependent on their interaction with menin, providing basis for therapeutic intervention. Here we report the development of highly potent and orally bioavailable small-molecule inhibitors of the menin-MLL interaction, MI-463 and MI-503, and show their profound effects in MLL leukemia cells and substantial survival benefit in mouse models of MLL leukemia. Finally, we demonstrate the efficacy of these compounds in primary samples derived from MLL leukemia patients. Overall, we demonstrate that pharmacologic inhibition of the menin-MLL interaction represents an effective treatment for MLL leukemias in vivo and provide advanced molecular scaffold for clinical lead identification.

---

Organizational Affiliation:
• Department of Pathology, University of Michigan, Ann Arbor, MI 48109, USA.
Department of Pathology, University of Michigan, Ann Arbor, MI 48109, USA; Graduate Program in Molecular and Cellular Pathology, University of Michigan, Ann Arbor, MI 48109, USA.
Center for Stem Cell Biology, Life Sciences Institute, University of Michigan, Ann Arbor, MI 48109, USA; Graduate Program in Cellular and Molecular Biology, University of Michigan, Ann Arbor, MI 48109, USA.
Department of Pharmaceutical Sciences, College of Pharmacy, University of Michigan, Ann Arbor, MI 48109, USA.
Department of Medicine, Weill Medical College of Cornell University, New York, NY 10065, USA.
Center for Stem Cell Biology, Life Sciences Institute, University of Michigan, Ann Arbor, MI 48109, USA; Graduate Program in Cellular and Molecular Biology, University of Michigan, Ann Arbor, MI 48109, USA; Medical Scientist Training Program, University of Michigan, Ann Arbor, MI 48109, USA.
Department of Medicine, Division of Hematology-Oncology, Perelman School of Medicine, University of Pennsylvania, Philadelphia, PA 19104, USA.
Division of Hematology-Oncology, Department of Internal Medicine, University of Michigan, Ann Arbor, MI 48109, USA.
Department of Pathology, University of Michigan, Ann Arbor, MI 48109, USA; School of Medicine, Indiana University, Indianapolis, IN 46202, USA.
Center for Stem Cell Biology, Life Sciences Institute, University of Michigan, Ann Arbor, MI 48109, USA; Division of Hematology-Oncology, Department of Internal Medicine, University of Michigan, Ann Arbor, MI 48109, USA; Department of Cell and Developmental Biology, University of Michigan, Ann Arbor, MI 48109, USA.
Department of Pathology, University of Michigan, Ann Arbor, MI 48109, USA. Electronic address: [e-mail].

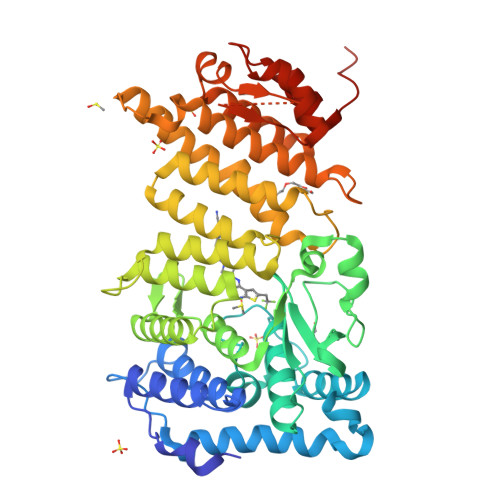

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 55.84 kDa
• Atom Count: 3,949
• Modeled Residue Count: 466
• Deposited Residue Count: 489
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Menin	A	489	Homo sapiens	Mutation(s): 1  Gene Names: MEN1, SCG2
UniProt & NIH Common Fund Data Resources
Find proteins for O00255 (Homo sapiens) Explore O00255  Go to UniProtKB:  O00255
PHAROS:  O00255 GTEx:  ENSG00000133895

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
3XY	F [auth A]	5-[(4-{[6-(2,2,2-trifluoroethyl)thieno[2,3-d]pyrimidin-4-yl]amino}piperidin-1-yl)methyl]-1H-indole-2-carbonitrile C23 H21 F3 N6 S PSOJDGBGVBEYJX-UHFFFAOYSA-N
PG4	G [auth A]	TETRAETHYLENE GLYCOL C8 H18 O5 UWHCKJMYHZGTIT-UHFFFAOYSA-N
SO4	B [auth A], C [auth A], D [auth A], E [auth A]	SULFATE ION O4 S QAOWNCQODCNURD-UHFFFAOYSA-L
DMS	H [auth A], J [auth A]	DIMETHYL SULFOXIDE C2 H6 O S IAZDPXIOMUYVGZ-UHFFFAOYSA-N
EDO	I [auth A]	1,2-ETHANEDIOL C2 H6 O2 LYCAIKOWRPUZTN-UHFFFAOYSA-N

Binding Affinity Annotations
ID	Source	Binding Affinity
3XY	BindingDB:  4X5Z	Kd: 24 (nM) from 1 assay(s)

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.86 Å
• R-Value Free:  0.208 (Depositor), 0.218 (DCC)
• R-Value Work:  0.162 (Depositor), 0.174 (DCC)
• R-Value Observed: 0.165 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 49.013	α = 90
b = 80.178	β = 90
c = 124.887	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
HKL-2000	data reduction
MOLREP	phasing
PDB_EXTRACT	data extraction
DENZO	data reduction
SCALEPACK	data scaling

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2015-04-15
Deposition Author(s): Pollock, J., Borkin, D., Cierpicki, T., Grembecka, J.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Cancer Institute (NIH/NCI)	United States	1R01CA160467

Revision History

• Version 1.0: 2015-04-15
  Type: Initial release

• Version 1.1: 2015-04-29
  Changes: Database references
• Version 1.2: 2017-09-13
  Changes: Author supporting evidence, Derived calculations, Refinement description, Source and taxonomy
• Version 1.3: 2019-12-04
  Changes: Author supporting evidence
• Version 1.4: 2023-09-27
  Changes: Data collection, Database references, Refinement description
