4U17 | pdb_00004u17

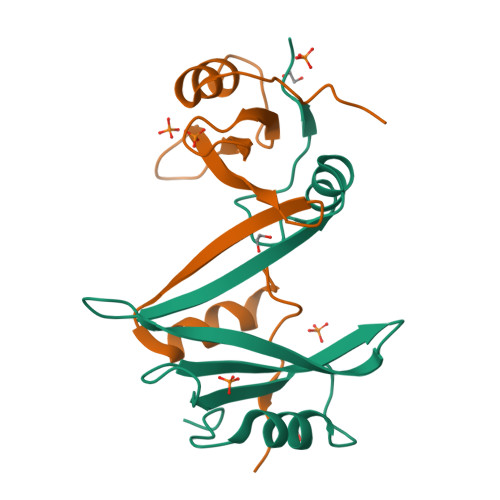

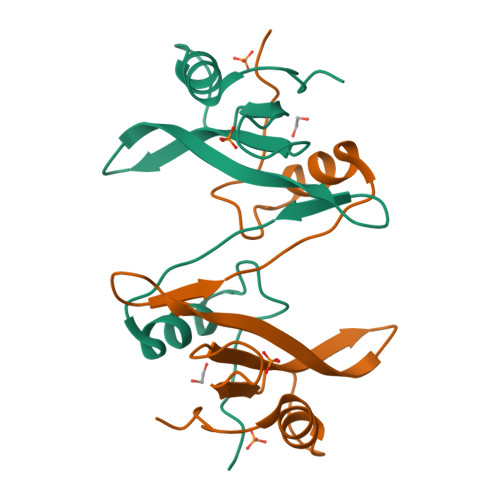

Swapped dimer of the human Fyn-SH2 domain

PDB DOI: https://doi.org/10.2210/pdb4U17/pdb

Classification: TRANSFERASE
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2014-07-15 Released: 2015-07-29
Deposition Author(s): Garcia-Pino, A., Huculeci, R., Lenaerts, T., van Nuland, N.A.J.

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.99 Å
R-Value Free:
0.255 (Depositor), 0.256 (DCC)
R-Value Work:
0.207 (Depositor), 0.212 (DCC)
R-Value Observed:
0.209 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 4U17

This is version 1.1 of the entry. See complete history.

Literature

Swapped dimer of the human Fyn-SH2 domain

Garcia-Pino, A., Huculeci, R., Lenaerts, T., van Nuland, N.A.J.

To be published.

Macromolecule Content

Total Structure Weight: 37.61 kDa
Atom Count: 2,642
Modeled Residue Count: 308
Deposited Residue Count: 315
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Tyrosine-protein kinase Fyn	A, B, C	105	Homo sapiens	Mutation(s): 0 Gene Names: FYN EC: 2.7.10.2
UniProt & NIH Common Fund Data Resources
Find proteins for P06241 (Homo sapiens) Explore P06241 Go to UniProtKB: P06241
PHAROS: P06241 GTEx: ENSG00000010810
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P06241
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
PO4 Query on PO4 Download:Ideal Coordinates CCD File SDF format, chain M [auth C] SDF format, chain L [auth C] SDF format, chain K [auth C] SDF format, chain J [auth C] SDF format, chain H [auth B] SDF format, chain G [auth B] SDF format, chain D [auth A] MOL2 format, chain M [auth C] MOL2 format, chain L [auth C] MOL2 format, chain K [auth C] MOL2 format, chain J [auth C] MOL2 format, chain H [auth B] MOL2 format, chain G [auth B] MOL2 format, chain D [auth A] mmCIF format, chain M [auth C] mmCIF format, chain L [auth C] mmCIF format, chain K [auth C] mmCIF format, chain J [auth C] mmCIF format, chain H [auth B] mmCIF format, chain G [auth B] mmCIF format, chain D [auth A]	D [auth A] G [auth B] H [auth B] J [auth C] K [auth C] D [auth A], G [auth B], H [auth B], J [auth C], K [auth C], L [auth C], M [auth C]	PHOSPHATE ION O₄ P NBIIXXVUZAFLBC-UHFFFAOYSA-K		Interactions Focus chain D [auth A] Focus chain G [auth B] Focus chain H [auth B] Focus chain J [auth C] Focus chain K [auth C] Focus chain L [auth C] Focus chain M [auth C] Interactions & Density Focus chain D [auth A] Focus chain G [auth B] Focus chain H [auth B] Focus chain J [auth C] Focus chain K [auth C] Focus chain L [auth C] Focus chain M [auth C]
EDO Query on EDO Download:Ideal Coordinates CCD File SDF format, chain N [auth C] SDF format, chain I [auth B] SDF format, chain F [auth A] SDF format, chain E [auth A] MOL2 format, chain N [auth C] MOL2 format, chain I [auth B] MOL2 format, chain F [auth A] MOL2 format, chain E [auth A] mmCIF format, chain N [auth C] mmCIF format, chain I [auth B] mmCIF format, chain F [auth A] mmCIF format, chain E [auth A]	E [auth A], F [auth A], I [auth B], N [auth C]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain I [auth B] Focus chain N [auth C] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain I [auth B] Focus chain N [auth C]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.99 Å
R-Value Free: 0.255 (Depositor), 0.256 (DCC)
R-Value Work: 0.207 (Depositor), 0.212 (DCC)
R-Value Observed: 0.209 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 88.965	α = 90
b = 57.873	β = 90.6
c = 101.188	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
iMOSFLM	data reduction
SCALA	data scaling

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

Deposition Data

Released Date: 2015-07-29

Deposition Author(s):

Garcia-Pino, A.

van Nuland, N.A.J.

Revision History (Full details and data files)

Version 1.0: 2015-07-29
Type: Initial release
Version 1.1: 2023-12-20
Changes: Data collection, Database references, Refinement description
