4QP9

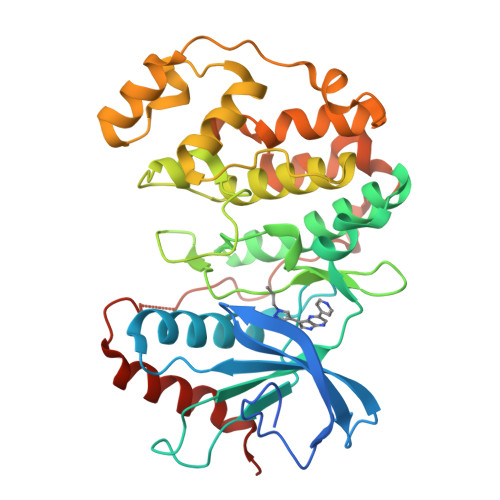

Crystal Structure of ERK2 in complex with 7-(1-propyl-1H-pyrazol-4-yl)-2-(pyridin-4-yl)-5H-pyrrolo[2,3-b]pyrazine


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.227
  • R-Value Work: 0.184
  • R-Value Observed: 0.186

wwPDB Validation 3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Fragment-based discovery of potent ERK2 pyrrolopyrazine inhibitors.

Burdick, D.J.Wang, S.Heise, C.Pan, B.Drummond, J.Yin, J.Goeser, L.Magnuson, S.Blaney, J.Moffat, J.Wang, W.Chen, H.

(2015) Bioorg Med Chem Lett 25: 4728-4732

  • DOI: 10.1016/j.bmcl.2015.08.048
  • Primary Citation of Related Structures:
    4QP1, 4QP2, 4QPA, 4QP3, 4QP4, 4QP6, 4QP7, 4QP8, 4QP9

  • PubMed Abstract:
  • A fragment-based lead discovery approach was used to discover novel ERK2 inhibitors. The crystal structure of N-benzyl-9H-purin-6-amine 1 in complex with ERK2 elucidated its hinge-binding mode. In addition, the simultaneous binding of an imidazole mo ...

    A fragment-based lead discovery approach was used to discover novel ERK2 inhibitors. The crystal structure of N-benzyl-9H-purin-6-amine 1 in complex with ERK2 elucidated its hinge-binding mode. In addition, the simultaneous binding of an imidazole molecule adjacent to 1 suggested a direction for fragment expansion. Structure-based core hopping applied to 1 led to 5H-pyrrolo[3,2-b]pyrazine (3) that afforded direct vectors to probe the pockets of interest while retaining the essential hinge binding elements. Utilizing the new vectors for SAR exploration, the new core 3 was quickly optimized to compound 39 resulting in a greater than 6600-fold improvement in potency.


    Organizational Affiliation

    Department of Computational Chemistry, Genentech, Inc., South San Francisco, CA 94080, United States. Electronic address: chen.huifen@gene.com.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Mitogen-activated protein kinase 1A369Homo sapiensMutation(s): 0
Gene Names: MAPK1ERK2PRKM1PRKM2
EC: 2.7.11.24
Find proteins for P28482 (Homo sapiens)
Explore P28482
Go to UniProtKB:  P28482
NIH Common Fund Data Resources
PHAROS  P28482
Protein Feature View
Expand
 ( Mouse scroll to zoom / Hold left click to move )
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
35X
Query on 35X

Download CCD File
A
7-(1-propyl-1H-pyrazol-4-yl)-2-(pyridin-4-yl)-5H-pyrrolo[2,3-b]pyrazine
C17 H16 N6
UEKKWQGHDYXDHX-UHFFFAOYSA-N
 Ligand Interaction
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
35XIC50:  71   nM  BindingDB
35XIC50:  71   nM  Binding MOAD
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.227
  • R-Value Work: 0.184
  • R-Value Observed: 0.186
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 44.2α = 90
b = 66.187β = 101.48
c = 59.47γ = 90
Software Package:
Software NamePurpose
BOSdata collection
PHASERphasing
PHENIXrefinement
DENZOdata reduction
SCALEPACKdata scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

  • Deposited Date: 2014-06-22
  • Released Date: 2015-09-23
  • Deposition Author(s): Yin, J., Wang, W.

Revision History

  • Version 1.0: 2015-09-23
    Type: Initial release
  • Version 1.1: 2015-12-16
    Changes: Database references
