4PUU | pdb_00004puu

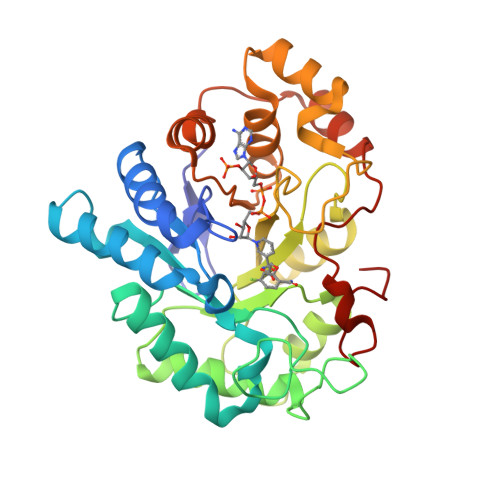

Human Aldose Reductase complexed with a ligand with an IDD structure (2-(2-carbamoyl-5-fluoro-phenoxy)acetic acid) at 1.14 A

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.14 Å
  • R-Value Free:
    0.156 (Depositor), 0.155 (DCC)
  • R-Value Work:
    0.137 (Depositor), 0.137 (DCC)
  • R-Value Observed:
    0.138 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 4PUU

Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history.

Literature

Human Aldose Reductase: How expensive is the opening of the specificity pocket? IDD ligands under investigation

Rechlin, C., Heine, A., Scheer, F., Toth, P., Diederich, W., Klebe, G.

To be published.

Macromolecule Content

  • Total Structure Weight: 36.85 kDa
  • Atom Count: 3,015
  • Modeled Residue Count: 316
  • Deposited Residue Count: 316
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:
|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Aldose reductase316Homo sapiensMutation(s): 0
Gene Names: AKR1B1, ALDR1
EC: 1.1.1.21 (PDB Primary Data), 1.1.1.372 (UniProt), 1.1.1.300 (UniProt), 1.1.1.54 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P15121 (Homo sapiens)
Explore P15121
Go to UniProtKB:  P15121
PHAROS:  P15121
GTEx:  ENSG00000085662
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP15121
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
NAP

Query on NAP


Download:Ideal Coordinates CCD File
B [auth A]NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
C21 H28 N7 O17 P3
XJLXINKUBYWONI-NNYOXOHSSA-N
2WR

Query on 2WR


Download:Ideal Coordinates CCD File
C [auth A](2-carbamoyl-5-fluorophenoxy)acetic acid
C9 H8 F N O4
PCNZVPHJJYWUKQ-UHFFFAOYSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
2WR BindingDB:  4PUU ΔG: min: -3.90e+1, max: 29.71 (kJ/mol) from 10 assay(s)

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.14 Å
  • R-Value Free:  0.156 (Depositor), 0.155 (DCC)
  • R-Value Work:  0.137 (Depositor), 0.137 (DCC)
  • R-Value Observed: 0.138 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 49.289α = 90
b = 66.394β = 91.82
c = 47.245γ = 90
Software Package:
Software NamePurpose
MAR345dtbdata collection
PHASERphasing
PHENIXrefinement
HKL-2000data reduction
HKL-2000data scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


View more in-depth experimental data

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2015-04-08
    Type: Initial release
  • Version 1.1: 2023-09-20
    Changes: Data collection, Database references, Derived calculations, Refinement description
