4JHV | pdb_00004jhv

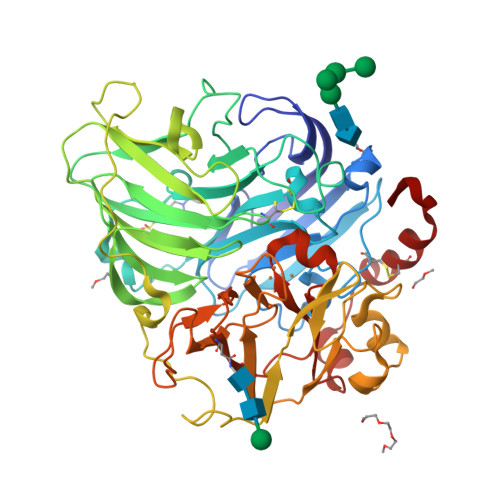

T2-depleted laccase from Coriolopsis caperata


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free:
    0.178 (Depositor), 0.180 (DCC)
  • R-Value Work:
    0.156 (Depositor), 0.158 (DCC)
  • R-Value Observed:
    0.157 (Depositor)

wwPDB Validation 3D Report Full Report

Validation slider image for 4JHV

This is version 2.1 of the entry. See complete history

Literature

Elucidation of the crystal structure of Coriolopsis caperata laccase: restoration of the structure and activity of the native enzyme from the T2-depleted form by copper ions.

Glazunova, O.A.Polyakov, K.M.Fedorova, T.V.Dorovatovskii, P.V.Koroleva, O.V.

(2015) Acta Crystallogr D Biol Crystallogr 71: 854-861

  • DOI: https://doi.org/10.1107/S1399004715001595
  • Primary Citation Related Structures:
    4JHU, 4JHV

  • PubMed Abstract:

    Laccases are members of a large family of multicopper oxidases that catalyze the oxidation of a wide range of organic and inorganic substrates accompanied by the reduction of dioxygen to water. A new laccase was isolated from the basidiomycete Coriolopsis caperata strain 0677 and its amino-acid sequence was determined. According to its physicochemical properties and spectroscopic features, the laccase from C. caperata is a high redox-potential blue laccase. Attempts to crystallize the native enzyme were unsuccessful. The copper type 2-depleted (T2D) laccase was prepared and crystallized. The structure of T2D laccase from C. caperata was solved at 1.6 Å resolution, and attempts to reconstruct the T2 copper centre were performed using Cu(+) and Cu(2+) ions. The structure of T2D+Cu(+) laccase was solved at 1.89 Å resolution. It was shown that the T2D+Cu(+) laccase structure contained four copper ions in the active site. Reconstruction could not be achieved when the T2D laccase crystals were treated with CuSO4.


  • Organizational Affiliation
    • A. N. Bach Institute of Biochemistry, Russian Academy of Sciences, Leninsky Prospect 33, Moscow 119071, Russian Federation.

Macromolecule Content

  • Total Structure Weight: 56.32 kDa
  • Atom Count: 4,525
  • Modeled Residue Count: 496
  • Deposited Residue Count: 496
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
LACCASE496Cerrena caperataMutation(s): 0
EC: 1.10.3.2
UniProt
Find proteins for M1GME7 (Cerrena caperata)
Explore M1GME7
Go to UniProtKB:  M1GME7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupM1GME7
Glycosylation
Glycosylation Sites: 2
Sequence Annotations
Expand
Reference Sequence

Oligosaccharides

Help
Entity ID: 2
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
B
6N-Glycosylation
Glycosylation Resources
GlyTouCan: G09724ZC
GlyCosmos: G09724ZC
GlyGen: G09724ZC
Entity ID: 3
MoleculeChains Length2D Diagram GlycosylationD Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
C
3N-Glycosylation
Glycosylation Resources
GlyTouCan: G15407YE
GlyCosmos: G15407YE
GlyGen: G15407YE

Small Molecules

Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
PG6

Query on PG6



Download:Ideal Coordinates CCD File
H [auth A],
I [auth A],
J [auth A]
1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE
C12 H26 O6
DMDPGPKXQDIQQG-UHFFFAOYSA-N
EPE

Query on EPE



Download:Ideal Coordinates CCD File
K [auth A]4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
C8 H18 N2 O4 S
JKMHFZQWWAIEOD-UHFFFAOYSA-N
CU

Query on CU



Download:Ideal Coordinates CCD File
D [auth A],
E [auth A],
F [auth A],
G [auth A]
COPPER (II) ION
Cu
JPVYNHNXODAKFH-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free:  0.178 (Depositor), 0.180 (DCC)
  • R-Value Work:  0.156 (Depositor), 0.158 (DCC)
  • R-Value Observed: 0.157 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 62.78α = 90
b = 84.91β = 90
c = 116.95γ = 90
Software Package:
Software NamePurpose
HKL-2000data collection
MOLREPphasing
REFMACrefinement
XDSdata reduction
XSCALEdata scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2014-04-23
    Type: Initial release
  • Version 1.1: 2015-06-24
    Changes: Database references
  • Version 2.0: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Advisory, Atomic model, Data collection, Derived calculations, Structure summary
  • Version 2.1: 2024-11-20
    Changes: Data collection, Database references, Structure summary
