4INU

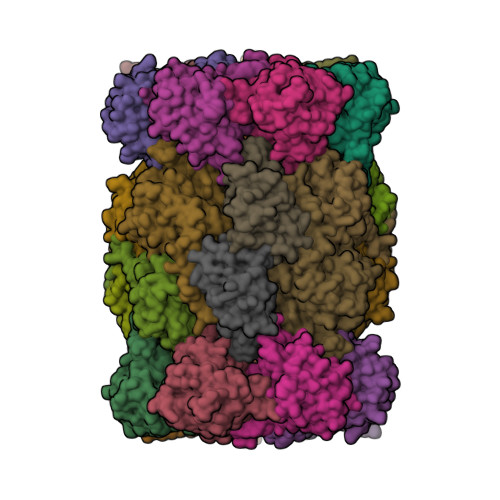

Yeast 20S proteasome in complex with the vinyl sulfone LU112

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.1 Å
  • R-Value Free: 0.238
  • R-Value Work: 0.218

wwPDB Validation 3D Report Full Report


This is version 1.1 of the entry. See complete history.

Literature

Incorporation of Non-natural Amino Acids Improves Cell Permeability and Potency of Specific Inhibitors of Proteasome Trypsin-like Sites.

Geurink, P.P., van der Linden, W.A., Mirabella, A.C., Gallastegui, N., de Bruin, G., Blom, A.E., Voges, M.J., Mock, E.D., Florea, B.I., van der Marel, G.A., Driessen, C., van der Stelt, M., Groll, M., Overkleeft, H.S., Kisselev, A.F.

(2013) J.Med.Chem. 56: 1262-1275

  • DOI: 10.1021/jm3016987
  • Primary Citation of Related Structures:

  • PubMed Abstract:

    • Proteasomes degrade the majority of proteins in mammalian cells by a concerted action of three distinct pairs of active sites. The chymotrypsin-like sites are targets of antimyeloma agents bortezomib and carfilzomib. Inhibitors of the trypsin-like si ...

    Proteasomes degrade the majority of proteins in mammalian cells by a concerted action of three distinct pairs of active sites. The chymotrypsin-like sites are targets of antimyeloma agents bortezomib and carfilzomib. Inhibitors of the trypsin-like site sensitize multiple myeloma cells to these agents. Here we describe systematic effort to develop inhibitors with improved potency and cell permeability, yielding azido-Phe-Leu-Leu-4-aminomethyl-Phe-methyl vinyl sulfone (4a, LU-102), and a fluorescent activity-based probe for this site. X-ray structures of 4a and related inhibitors complexed with yeast proteasomes revealed the structural basis for specificity. Nontoxic to myeloma cells when used as a single agent, 4a sensitized them to bortezomib and carfilzomib. This sensitizing effect was much stronger than the synergistic effects of histone acetylase inhibitors or additive effects of doxorubicin and dexamethasone, raising the possibility that combinations of inhibitors of the trypsin-like site with bortezomib or carfilzomib would have stronger antineoplastic activity than combinations currently used clinically.

    Organizational Affiliation:

    Gorlaeus Laboratories, Leiden Institute of Chemistry and Netherlands Proteomics Centre, Einsteinweg 55, 2333 CC Leiden, The Netherlands.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
Proteasome component Y7
A, O
250Saccharomyces cerevisiae (strain ATCC 204508 / S288c)Mutation(s): 0
Gene Names: PRE8 (PRS4)
EC: 3.4.25.1
Find proteins for P23639 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Go to UniProtKB:  P23639
Entity ID: 2
MoleculeChainsSequence LengthOrganismDetails
Proteasome component Y13
B, P
258Saccharomyces cerevisiae (strain ATCC 204508 / S288c)Mutation(s): 0
Gene Names: PRE9 (PRS5)
EC: 3.4.25.1
Find proteins for P23638 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Go to UniProtKB:  P23638
Entity ID: 3
MoleculeChainsSequence LengthOrganismDetails
Proteasome component PRE6
C, Q
254Saccharomyces cerevisiae (strain ATCC 204508 / S288c)Mutation(s): 0
Gene Names: PRE6
EC: 3.4.25.1
Find proteins for P40303 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Go to UniProtKB:  P40303
Entity ID: 4
MoleculeChainsSequence LengthOrganismDetails
Proteasome component PUP2
D, R
260Saccharomyces cerevisiae (strain ATCC 204508 / S288c)Mutation(s): 0
Gene Names: PUP2 (DOA5)
EC: 3.4.25.1
Find proteins for P32379 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Go to UniProtKB:  P32379
Entity ID: 5
MoleculeChainsSequence LengthOrganismDetails
Proteasome component PRE5
E, S
234Saccharomyces cerevisiae (strain ATCC 204508 / S288c)Mutation(s): 0
Gene Names: PRE5
EC: 3.4.25.1
Find proteins for P40302 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Go to UniProtKB:  P40302
Entity ID: 6
MoleculeChainsSequence LengthOrganismDetails
Proteasome component C1
F, T
288Saccharomyces cerevisiae (strain ATCC 204508 / S288c)Mutation(s): 0
Gene Names: PRE10 (PRC1, PRS1)
EC: 3.4.25.1
Find proteins for P21242 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Go to UniProtKB:  P21242
Entity ID: 7
MoleculeChainsSequence LengthOrganismDetails
Proteasome component C7-alpha
G, U
252Saccharomyces cerevisiae (strain ATCC 204508 / S288c)Mutation(s): 0
Gene Names: SCL1 (PRC2, PRS2)
EC: 3.4.25.1
Find proteins for P21243 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Go to UniProtKB:  P21243
Entity ID: 8
MoleculeChainsSequence LengthOrganismDetails
Proteasome component PUP1
H, V
232Saccharomyces cerevisiae (strain ATCC 204508 / S288c)Mutation(s): 0
Gene Names: PUP1
EC: 3.4.25.1
Find proteins for P25043 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Go to UniProtKB:  P25043
Entity ID: 9
MoleculeChainsSequence LengthOrganismDetails
Proteasome component PUP3
I, W
205Saccharomyces cerevisiae (strain ATCC 204508 / S288c)Mutation(s): 0
Gene Names: PUP3
EC: 3.4.25.1
Find proteins for P25451 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Go to UniProtKB:  P25451
Entity ID: 10
MoleculeChainsSequence LengthOrganismDetails
Proteasome component C11
J, X
198Saccharomyces cerevisiae (strain ATCC 204508 / S288c)Mutation(s): 0
Gene Names: PRE1
EC: 3.4.25.1
Find proteins for P22141 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Go to UniProtKB:  P22141
Entity ID: 11
MoleculeChainsSequence LengthOrganismDetails
Proteasome component PRE2
K, Y
212Saccharomyces cerevisiae (strain ATCC 204508 / S288c)Mutation(s): 0
Gene Names: PRE2 (DOA3, PRG1)
EC: 3.4.25.1
Find proteins for P30656 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Go to UniProtKB:  P30656
Entity ID: 12
MoleculeChainsSequence LengthOrganismDetails
Proteasome component C5
L, Z
222Saccharomyces cerevisiae (strain ATCC 204508 / S288c)Mutation(s): 0
Gene Names: PRE7 (PRS3, PTS1)
EC: 3.4.25.1
Find proteins for P23724 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Go to UniProtKB:  P23724
Entity ID: 13
MoleculeChainsSequence LengthOrganismDetails
Proteasome component PRE4
M, a
233Saccharomyces cerevisiae (strain ATCC 204508 / S288c)Mutation(s): 0
Gene Names: PRE4
EC: 3.4.25.1
Find proteins for P30657 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Go to UniProtKB:  P30657
Entity ID: 14
MoleculeChainsSequence LengthOrganismDetails
Proteasome component PRE3
N, b
196Saccharomyces cerevisiae (strain ATCC 204508 / S288c)Mutation(s): 0
Gene Names: PRE3
EC: 3.4.25.1
Find proteins for P38624 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Go to UniProtKB:  P38624
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
1G6
Query on 1G6
Download SDF File
Download CCD File
H, K, V, Y
N3Phe-Phe(4-NH2CH2)-Leu-Phe(4-NH2CH2)-methyl vinyl sulfone, bound form
C37 H50 N8 O5 S
TVDRWAJLQICMTF-ITHRCTNCSA-N
 Ligand Interaction
Biologically Interesting Molecules 1 Unique
IDChainsNameType/Class2D Diagram3D Interactions
PRD_000993 (1G6)
Query on PRD_000993		H,K,V,YN3PHE-PHE(4-NH2CH2)-LEU-PHE(4-NH2CH2)-METHYL VINYL SULFONE, BOUND FORMPeptide-like / Inhibitor

--

External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
1G6IC50: 0.55 nM PDBBIND
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.1 Å
  • R-Value Free: 0.238
  • R-Value Work: 0.218
  • Space Group: P 1 21 1
Unit Cell:
Length (Å)Angle (°)
a = 134.910α = 90.00
b = 300.900β = 112.53
c = 143.620γ = 90.00
Software Package:
Software NamePurpose
REFMACrefinement
REFMACphasing
XSCALEdata scaling
XDSdata scaling
XDSdata reduction

Structure Validation

View Full Validation Report or Ramachandran Plots


View more in-depth experimental data

Entry History

Deposition Data

Revision History

  • Version 1.0: 2013-01-30
    Type: Initial release
  • Version 1.1: 2013-02-27
    Type: Database references
