4HSL | pdb_00004hsl

2.00 angstrom x-ray crystal structure of substrate-bound E110A 3-hydroxyanthranilate-3,4-dioxygenase from Cupriavidus metallidurans

• PDB DOI: https://doi.org/10.2210/pdb4HSL/pdb

• Classification: OXIDOREDUCTASE
• Organism(s): Cupriavidus metallidurans CH34
• Expression System: Escherichia coli BL21
• Mutation(s): Yes


• Deposited: 2012-10-30 Released: 2013-11-27
• Deposition Author(s): Liu, F., Chen, L., Liu, A.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.00 Å
• R-Value Free:
  0.275 (Depositor), 0.282 (DCC)
• R-Value Work:
  0.223 (Depositor), 0.225 (DCC)
• R-Value Observed:
  0.226 (Depositor)

Starting Model: experimental

Literature

2.00 angstrom x-ray crystal structure of substrate-bound E110A 3-hydroxyanthranilate-3,4-dioxygenase from Cupriavidus metallidurans

Liu, F., Chen, L., Liu, A.

To be published.

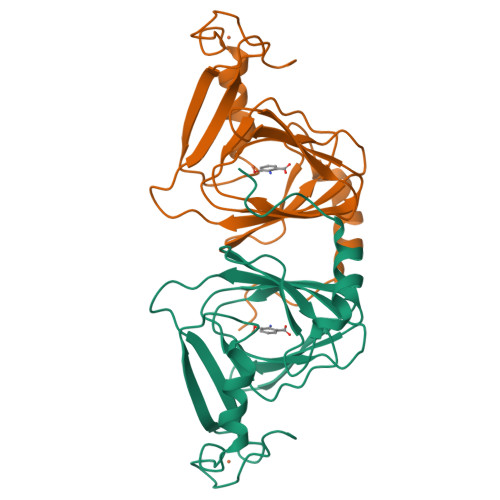

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 20.26 kDa
• Atom Count: 1,432
• Modeled Residue Count: 174
• Deposited Residue Count: 174
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
3-hydroxyanthranilate 3,4-dioxygenase	A	174	Cupriavidus metallidurans CH34	Mutation(s): 1  Gene Names: Cupriavidus metallidurans, nbaC, Rmet_5193 EC: 1.13.11.6
UniProt
Find proteins for Q1LCS4 (Cupriavidus metallidurans (strain ATCC 43123 / DSM 2839 / NBRC 102507 / CH34)) Explore Q1LCS4  Go to UniProtKB:  Q1LCS4

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
3HA	D [auth A]	3-HYDROXYANTHRANILIC ACID C7 H7 N O3 WJXSWCUQABXPFS-UHFFFAOYSA-N
FE2	B [auth A], C [auth A]	FE (II) ION Fe CWYNVVGOOAEACU-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.00 Å
• R-Value Free:  0.275 (Depositor), 0.282 (DCC)
• R-Value Work:  0.223 (Depositor), 0.225 (DCC)
• R-Value Observed: 0.226 (Depositor)

Space Group: P 6₅ 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 58.461	α = 90
b = 58.461	β = 90
c = 232.19	γ = 120

Software Package:

Software Name	Purpose
REFMAC	refinement
PDB_EXTRACT	data extraction
SERGUI	data collection
HKL-2000	data reduction
HKL-2000	data scaling
MOLREP	phasing

Structure Validation

Entry History

Deposition Data

• Released Date: 2013-11-27
Deposition Author(s): Liu, F., Chen, L., Liu, A.

Revision History

• Version 1.0: 2013-11-27
  Type: Initial release

• Version 1.1: 2017-11-15
  Changes: Refinement description
• Version 1.2: 2023-09-20
  Changes: Data collection, Database references, Derived calculations, Refinement description
