4ER7

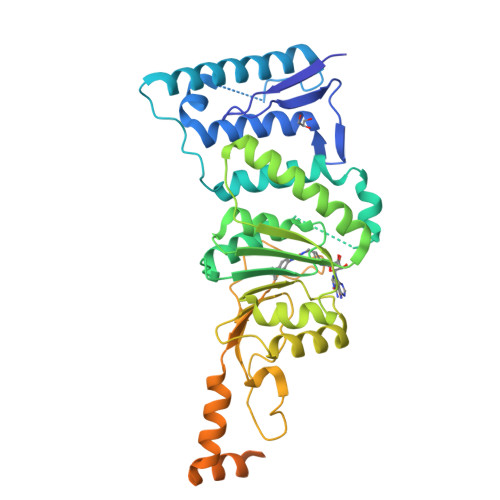

Crystal Structure of human DOT1L in complex with inhibitor SGC0947


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.20 Å
  • R-Value Free: 0.242
  • R-Value Work: 0.218
  • R-Value Observed: 0.219

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Catalytic site remodelling of the DOT1L methyltransferase by selective inhibitors.

Yu, W.Chory, E.J.Wernimont, A.K.Tempel, W.Scopton, A.Federation, A.Marineau, J.J.Qi, J.Barsyte-Lovejoy, D.Yi, J.Marcellus, R.Iacob, R.E.Engen, J.R.Griffin, C.Aman, A.Wienholds, E.Li, F.Pineda, J.Estiu, G.Shatseva, T.Hajian, T.Al-Awar, R.Dick, J.E.Vedadi, M.Brown, P.J.Arrowsmith, C.H.Bradner, J.E.Schapira, M.

(2012) Nat Commun 3: 1288-1288

  • DOI: https://doi.org/10.1038/ncomms2304
  • Primary Citation of Related Structures:
    3UWP, 4EQZ, 4ER0, 4ER3, 4ER5, 4ER6, 4ER7

  • PubMed Abstract:

    Selective inhibition of protein methyltransferases is a promising new approach to drug discovery. An attractive strategy towards this goal is the development of compounds that selectively inhibit binding of the cofactor, S-adenosylmethionine, within specific protein methyltransferases. Here we report the three-dimensional structure of the protein methyltransferase DOT1L bound to EPZ004777, the first S-adenosylmethionine-competitive inhibitor of a protein methyltransferase with in vivo efficacy. This structure and those of four new analogues reveal remodelling of the catalytic site. EPZ004777 and a brominated analogue, SGC0946, inhibit DOT1L in vitro and selectively kill mixed lineage leukaemia cells, in which DOT1L is aberrantly localized via interaction with an oncogenic MLL fusion protein. These data provide important new insight into mechanisms of cell-active S-adenosylmethionine-competitive protein methyltransferase inhibitors, and establish a foundation for the further development of drug-like inhibitors of DOT1L for cancer therapy.


  • Organizational Affiliation

    Structural Genomics Consortium, University of Toronto, Toronto, ON M5G 1L7, Canada.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Histone-lysine N-methyltransferase, H3 lysine-79 specific421Homo sapiensMutation(s): 0
Gene Names: DOT1LKIAA1814KMT4
EC: 2.1.1.43
UniProt & NIH Common Fund Data Resources
Find proteins for Q8TEK3 (Homo sapiens)
Explore Q8TEK3
Go to UniProtKB:  Q8TEK3
PHAROS:  Q8TEK3
GTEx:  ENSG00000104885
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8TEK3
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
AW3
Query on AW3

Download Ideal Coordinates CCD File
B [auth A]5-bromo-7-{5-[(3-{[(4-tert-butylphenyl)carbamoyl]amino}propyl)amino]-5-deoxy-beta-D-ribofuranosyl}-7H-pyrrolo[2,3-d]pyrimidin-4-amine
C25 H34 Br N7 O4
RFVBTQBCRYTKHX-ZDXOVATRSA-N
GOL
Query on GOL

Download Ideal Coordinates CCD File
C [auth A]GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.20 Å
  • R-Value Free: 0.242
  • R-Value Work: 0.218
  • R-Value Observed: 0.219
  • Space Group: P 65
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 150.617α = 90
b = 150.617β = 90
c = 52.8γ = 120
Software Package:
Software NamePurpose
MOSFLMdata reduction
SCALAdata scaling
REFMACrefinement
PDB_EXTRACTdata extraction
31IDdata collection

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Revision History  (Full details and data files)

  • Version 1.0: 2012-05-16
    Type: Initial release
  • Version 1.1: 2017-11-15
    Changes: Refinement description
  • Version 1.2: 2018-05-16
    Changes: Data collection, Database references
  • Version 1.3: 2024-02-28
    Changes: Data collection, Database references, Derived calculations
