4EDX | pdb_00004edx

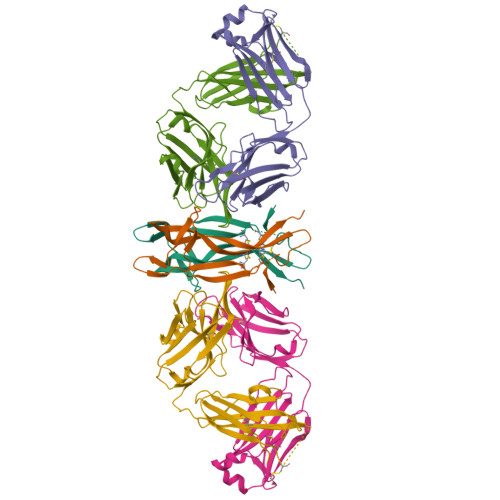

Nerve Growth Factor in Complex with Fab from mouse mAb 911


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.50 Å
  • R-Value Free:
    0.258 (Depositor), 0.252 (DCC)
  • R-Value Work:
    0.208 (Depositor), 0.210 (DCC)
  • R-Value Observed:
    0.209 (Depositor)

wwPDB Validation 3D Report Full Report

Validation slider image for 4EDX

This is version 1.2 of the entry. See complete history

Literature

Generation of a high-fidelity antibody against nerve growth factor using library scanning mutagenesis and validation with structures of the initial and optimized Fab-antigen complexes.

La Porte, S.L.Eigenbrot, C.Ultsch, M.Ho, W.H.Foletti, D.Forgie, A.Lindquist, K.C.Shelton, D.L.Pons, J.

(null) MAbs 6: 1059-1068

  • DOI: https://doi.org/10.4161/mabs.28677
  • Primary Citation Related Structures:
    4EDW, 4EDX

  • PubMed Abstract:

    Nerve growth factor (NGF) is indispensable during normal embryonic development and critical for the amplification of pain signals in adults. Intervention in NGF signaling holds promise for the alleviation of pain resulting from human diseases such as osteoarthritis, cancer and chronic lower back disorders. We developed a fast, high-fidelity method to convert a hybridoma-derived NGF-targeted mouse antibody into a clinical candidate. This method, termed Library Scanning Mutagenesis (LSM), resulted in the ultra-high affinity antibody tanezumab, a first-in-class anti-hyperalgesic specific for an NGF epitope. Functional and structural comparisons between tanezumab and the mouse 911 precursor antibody using neurotrophin-specific cell survival assays and X-ray crystal structures of both Fab-antigen complexes illustrated high fidelity retention of the NGF epitope. These results suggest the potential for wide applicability of the LSM method for optimization of well-characterized antibodies during humanization.

Macromolecule Content

  • Total Structure Weight: 121.95 kDa
  • Atom Count: 8,298
  • Modeled Residue Count: 1,063
  • Deposited Residue Count: 1,110
  • Unique protein chains: 3

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Beta-nerve growth factorA [auth W],
D [auth V]
120Homo sapiensMutation(s): 0
Gene Names: NGFNGFB
UniProt & NIH Common Fund Data Resources
Find proteins for P01138 (Homo sapiens)
Explore P01138
Go to UniProtKB:  P01138
PHAROS:  P01138
GTEx:  ENSG00000134259
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01138
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
light chain of FAB of murine anti-NGFB [auth A],
E [auth L]
214Mus musculusMutation(s): 0
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
heavy chain of Fab of murine anti-NGFC [auth B],
F [auth H]
221Mus musculusMutation(s): 0

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.50 Å
  • R-Value Free:  0.258 (Depositor), 0.252 (DCC)
  • R-Value Work:  0.208 (Depositor), 0.210 (DCC)
  • R-Value Observed: 0.209 (Depositor)
Space Group: P 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 57.748α = 104.34
b = 69.931β = 94.13
c = 83.736γ = 110.42
Software Package:
Software NamePurpose
Blu-Icedata collection
PHASERphasing
REFMACrefinement
HKL-2000data reduction
SCALEPACKdata scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2014-04-02
    Type: Initial release
  • Version 1.1: 2014-08-13
    Changes: Database references
  • Version 1.2: 2024-10-30
    Changes: Data collection, Database references, Structure summary
