3MV1 | pdb_00003mv1

E.Coli (lacZ) beta-galactosidase (R599A) in complex with Guanidinium

• PDB DOI: https://doi.org/10.2210/pdb3MV1/pdb

• Classification: HYDROLASE
• Organism(s): Escherichia coli K-12
• Expression System: Escherichia coli
• Mutation(s): Yes


• Deposited: 2010-05-03 Released: 2011-03-16
• Deposition Author(s): Dugdale, M.L., Vance, M., Driedger, M.L., Nibber, A., Tran, A., Huber, R.E.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.20 Å
• R-Value Free:
  0.242 (Depositor), 0.237 (DCC)
• R-Value Work:
  0.205 (Depositor), 0.201 (DCC)

Starting Model: experimental

Literature

Importance of Arg-599 of b-galactosidase (Escherichia coli) as an anchor for the open conformations of Phe-601 and the active-site loop

Dugdale, M.L., Vance, M.L., Wheatley, R.W., Driedger, M.R., Nibber, A., Tran, A., Huber, R.E.

(2010) Biochem Cell Biol 88: 969-979

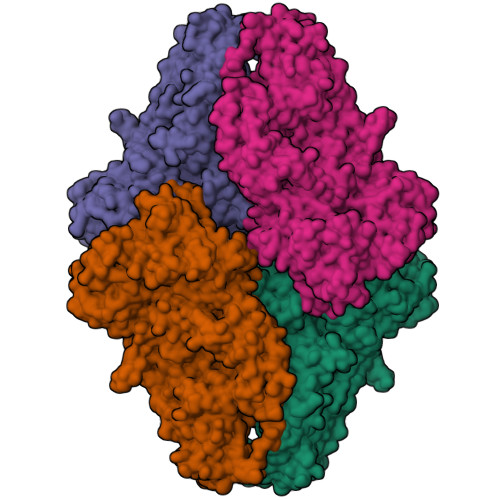

Biological Assembly 1

Global Symmetry: Dihedral - D2  (Explore in 3D)
Global Stoichiometry: Homo 4-mer - A4

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 488.04 kDa
• Atom Count: 36,610
• Modeled Residue Count: 4,044
• Deposited Residue Count: 4,208
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Beta-galactosidase	A [auth 1], B [auth 2], C [auth 3], D [auth 4]	1,052	Escherichia coli K-12	Mutation(s): 1  Gene Names: lacZ EC: 3.2.1.23
UniProt
Find proteins for P00722 (Escherichia coli (strain K12)) Explore P00722  Go to UniProtKB:  P00722

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
DMS	AA [auth 1], AB [auth 2], AD [auth 3], AE [auth 4], BA [auth 1], BB [auth 2], BD [auth 3], BE [auth 4], CA [auth 1], CB [auth 2], CD [auth 3], CE [auth 4], DA [auth 1], DB [auth 2], DD [auth 3], DE [auth 4], EA [auth 1], EB [auth 2], ED [auth 3], EE [auth 4], FA [auth 1], FB [auth 2], FC [auth 3], FD [auth 3], FE [auth 4], GA [auth 1], GB [auth 2], GC [auth 3], GD [auth 3], GE [auth 4], HA [auth 1], HB [auth 2], HC [auth 3], HE [auth 4], IA [auth 1], IB [auth 2], IC [auth 3], IE [auth 4], JA [auth 1], JB [auth 2], JC [auth 3], JE [auth 4], KA [auth 1], KB [auth 2], KC [auth 3], KE [auth 4], LB [auth 2], LC [auth 3], LE [auth 4], M [auth 1], MB [auth 2], MC [auth 3], ME [auth 4], N [auth 1], NB [auth 2], NC [auth 3], NE [auth 4], O [auth 1], OB [auth 2], OC [auth 3], OE [auth 4], P [auth 1], PB [auth 2], PC [auth 3], PD [auth 4], Q [auth 1], QB [auth 2], QC [auth 3], QD [auth 4], R [auth 1], RB [auth 2], RC [auth 3], RD [auth 4], S [auth 1], SB [auth 2], SC [auth 3], SD [auth 4], T [auth 1], TA [auth 2], TB [auth 2], TC [auth 3], TD [auth 4], U [auth 1], UA [auth 2], UB [auth 2], UC [auth 3], UD [auth 4], V [auth 1], VA [auth 2], VB [auth 2], VC [auth 3], VD [auth 4], W [auth 1], WA [auth 2], WB [auth 2], WC [auth 3], WD [auth 4], X [auth 1], XA [auth 2], XC [auth 3], XD [auth 4], Y [auth 1], YA [auth 2], YC [auth 3], YD [auth 4], Z [auth 1], ZA [auth 2], ZC [auth 3], ZD [auth 4]	DIMETHYL SULFOXIDE C2 H6 O S IAZDPXIOMUYVGZ-UHFFFAOYSA-N
GAI	EC [auth 3], L [auth 1], OD [auth 4], SA [auth 2]	GUANIDINE C H5 N3 ZRALSGWEFCBTJO-UHFFFAOYSA-N
MG	E [auth 1], F [auth 1], G [auth 1], HD [auth 4], ID [auth 4], JD [auth 4], LA [auth 2], MA [auth 2], NA [auth 2], XB [auth 3], YB [auth 3], ZB [auth 3]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N
NA	AC [auth 3], BC [auth 3], CC [auth 3], DC [auth 3], H [auth 1], I [auth 1], J [auth 1], K [auth 1], KD [auth 4], LD [auth 4], MD [auth 4], ND [auth 4], OA [auth 2], PA [auth 2], QA [auth 2], RA [auth 2]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.20 Å
• R-Value Free:  0.242 (Depositor), 0.237 (DCC)
• R-Value Work:  0.205 (Depositor), 0.201 (DCC)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 151.73	α = 90
b = 161.52	β = 90
c = 203.74	γ = 90

Software Package:

Software Name	Purpose
CNS	refinement
ADSC	data collection
MOSFLM	data reduction
SCALA	data scaling
CNS	phasing

Structure Validation

Entry History

Deposition Data

• Released Date: 2011-03-16
Deposition Author(s): Dugdale, M.L., Vance, M., Driedger, M.L., Nibber, A., Tran, A., Huber, R.E.

Revision History

• Version 1.0: 2011-03-16
  Type: Initial release

• Version 1.1: 2011-07-13
  Changes: Version format compliance
• Version 1.2: 2018-01-24
  Changes: Structure summary
• Version 1.3: 2023-09-06
  Changes: Data collection, Database references, Derived calculations, Refinement description
