3AGM

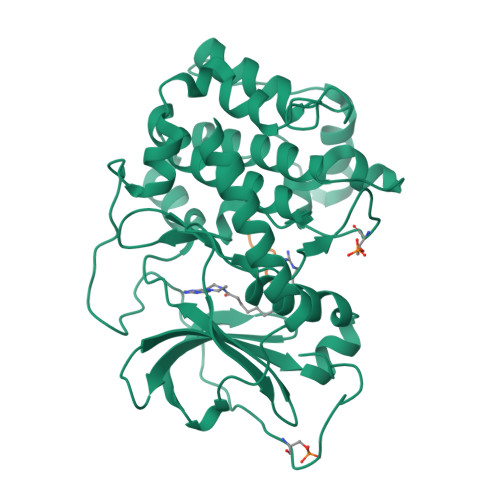

Complex of PKA with the bisubstrate protein kinase inhibitor ARC-670


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2 Å
  • R-Value Free: 0.265
  • R-Value Work: 0.223

wwPDB Validation 3D Report Full Report


This is version 1.3 of the entry. See complete history

Literature

Diversity of bisubstrate binding modes of adenosine analogue-oligoarginine conjugates in protein kinase a and implications for protein substrate interactions.

Pflug, A.Rogozina, J.Lavogina, D.Enkvist, E.Uri, A.Engh, R.A.Bossemeyer, D.

(2010) J.Mol.Biol. 403: 66-77

  • DOI: 10.1016/j.jmb.2010.08.028
  • Primary Citation of Related Structures:

  • PubMed Abstract:
  • Crystal structures of the catalytic subunit α of cAMP-dependent protein kinase (PKAc) with three adenosine analogue-oligoarginine conjugates (ARCs) are presented. The rationally designed ARCs include moieties that, in combination, target both the ATP ...

    Crystal structures of the catalytic subunit α of cAMP-dependent protein kinase (PKAc) with three adenosine analogue-oligoarginine conjugates (ARCs) are presented. The rationally designed ARCs include moieties that, in combination, target both the ATP- and the peptide-substrate-binding sites of PKAc, thereby taking advantage of high-affinity binding interactions offered by the ATP site while utilizing an additional mechanism for target specificity via binding to the peptide substrate site. The crystal structures demonstrate that, in accord with the previously reported bisubstrate character of ARCs, the inhibitors occupy both binding sites of PKAc. Further, they show new binding modes that may also apply to natural protein substrates of PKAc, which have not been revealed by previous crystallographic studies. The crystal structures described here contribute to the understanding of the substrate-binding patterns of PKAc and should also facilitate the design of inhibitors targeting PKAc and related protein kinases.


    Organizational Affiliation

    Institute of Chemistry, University of Tartu, Ravila 14a, 50411 Tartu, Estonia. Electronic address: rogozina@ut.ee.,German Cancer Research Center, Group of Structural Biochemistry, Im Neuenheimer Feld 280, 69120 Heidelberg, Germany. Electronic address: d.bossemeyer@dkfz-heidelberg.de.,Institute of Chemistry, University of Tartu, Ravila 14a, 50411 Tartu, Estonia. Electronic address: darjalav@ut.ee.,Norwegian Structural Biology Centre, Department of Chemistry, University of Tromsø, N-9037 Tromsø, Norway. Electronic address: alexander.pflug@uit.no.,Institute of Chemistry, University of Tartu, Ravila 14a, 50411 Tartu, Estonia. Electronic address: erki.enkvist@ut.ee.,Institute of Chemistry, University of Tartu, Ravila 14a, 50411 Tartu, Estonia. Electronic address: asko.uri@ut.ee.,Norwegian Structural Biology Centre, Department of Chemistry, University of Tromsø, N-9037 Tromsø, Norway. Electronic address: Richard.Engh@uit.no.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
cAMP-dependent protein kinase catalytic subunit alpha
A
351Homo sapiensMutation(s): 0
Gene Names: PRKACA (PKACA)
EC: 2.7.11.11
Find proteins for P17612 (Homo sapiens)
Go to Gene View: PRKACA
Go to UniProtKB:  P17612
Entity ID: 2
MoleculeChainsSequence LengthOrganismDetails
N~2~-{8-OXO-8-[4-(9H-PURIN-6-YL)PIPERAZIN-1-YL]OCTANOYL}-D-ARGINYL-D-ARGINYL-D-ARGINYL-D-ARGINYL-D-ARGINYL-D-ARGININAMIDE
B
9N/AMutation(s): 0
Protein Feature View is not available: No corresponding UniProt sequence found.
Small Molecules
Biologically Interesting Molecules 1 Unique
IDChainsNameType/Class2D Diagram3D Interactions
PRD_001021
Query on PRD_001021
BINHIBITOR ARC-670Peptide-like / Inhibitor

--

Modified Residues  2 Unique
IDChainsTypeFormula2D DiagramParent
SEP
Query on SEP
A
L-PEPTIDE LINKINGC3 H8 N O6 PSER
TPO
Query on TPO
A
L-PEPTIDE LINKINGC4 H10 N O6 PTHR
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
A67Ki: 0.82 nM PDBBIND
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2 Å
  • R-Value Free: 0.265
  • R-Value Work: 0.223
  • Space Group: P 43 21 2
Unit Cell:
Length (Å)Angle (°)
a = 85.520α = 90.00
b = 85.520β = 90.00
c = 99.040γ = 90.00
Software Package:
Software NamePurpose
SCALAdata scaling
REFMACrefinement
MOLREPphasing
MOSFLMdata reduction

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History

Deposition Data

Revision History

  • Version 1.0: 2010-09-01
    Type: Initial release
  • Version 1.1: 2011-07-13
    Type: Atomic model, Database references, Derived calculations, Non-polymer description, Structure summary, Version format compliance
  • Version 1.2: 2011-10-05
    Type: Derived calculations
  • Version 1.3: 2012-12-12
    Type: Other
