3SD5

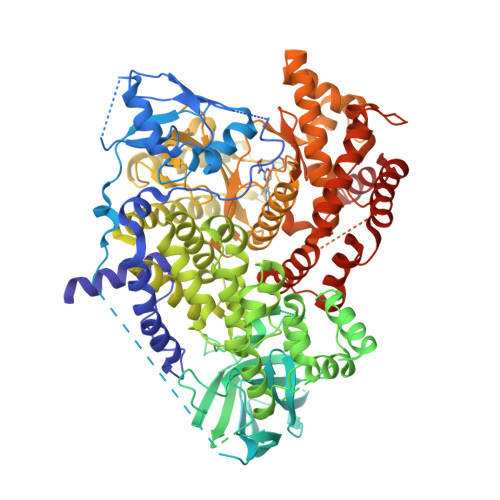

Crystal Structure of PI3K gamma with 5-(2,4-dimorpholinopyrimidin-6-yl)-4-(trifluoromethyl)pyridin-2-amine


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.2 Å
  • R-Value Free: 0.261
  • R-Value Work: 0.213

wwPDB Validation 3D Report Full Report


This is version 1.1 of the entry. See complete history

Literature

Identification and Characterization of NVP-BKM120, an Orally Available Pan-Class I PI3-Kinase Inhibitor.

Maira, S.M.Pecchi, S.Huang, A.Burger, M.Knapp, M.Sterker, D.Schnell, C.Guthy, D.Nagel, T.Wiesmann, M.Brachmann, S.Fritsch, C.Dorsch, M.Chene, P.Shoemaker, K.De Pover, A.Menezes, D.Martiny-Baron, G.Fabbro, D.Wilson, C.J.Schlegel, R.Hofmann, F.Garcia-Echeverria, C.Sellers, W.R.Voliva, C.F.

(2012) Mol.Cancer Ther. 11: 317-328

  • DOI: 10.1158/1535-7163.MCT-11-0474

  • PubMed Abstract:
  • Following the discovery of NVP-BEZ235, our first dual pan-PI3K/mTOR clinical compound, we sought to identify additional phosphoinositide 3-kinase (PI3K) inhibitors from different chemical classes with a different selectivity profile. The key to achie ...

    Following the discovery of NVP-BEZ235, our first dual pan-PI3K/mTOR clinical compound, we sought to identify additional phosphoinositide 3-kinase (PI3K) inhibitors from different chemical classes with a different selectivity profile. The key to achieve these objectives was to couple a structure-based design approach with intensive pharmacologic evaluation of selected compounds during the medicinal chemistry optimization process. Here, we report on the biologic characterization of the 2-morpholino pyrimidine derivative pan-PI3K inhibitor NVP-BKM120. This compound inhibits all four class I PI3K isoforms in biochemical assays with at least 50-fold selectivity against other protein kinases. The compound is also active against the most common somatic PI3Kα mutations but does not significantly inhibit the related class III (Vps34) and class IV (mTOR, DNA-PK) PI3K kinases. Consistent with its mechanism of action, NVP-BKM120 decreases the cellular levels of p-Akt in mechanistic models and relevant tumor cell lines, as well as downstream effectors in a concentration-dependent and pathway-specific manner. Tested in a panel of 353 cell lines, NVP-BKM120 exhibited preferential inhibition of tumor cells bearing PIK3CA mutations, in contrast to either KRAS or PTEN mutant models. NVP-BKM120 shows dose-dependent in vivo pharmacodynamic activity as measured by significant inhibition of p-Akt and tumor growth inhibition in mechanistic xenograft models. NVP-BKM120 behaves synergistically when combined with either targeted agents such as MEK or HER2 inhibitors or with cytotoxic agents such as docetaxel or temozolomide. The pharmacological, biologic, and preclinical safety profile of NVP-BKM120 supports its clinical development and the compound is undergoing phase II clinical trials in patients with cancer.


    Organizational Affiliation

    Novartis Institute for Biomedical Research, Oncology Disease Area, Novartis Pharma AG, Klybeckstrasse 141, CH-4002 Basel, Switzerland. sauveur-michel.maira@novartis.com




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
Phosphatidylinositol-4,5-bisphosphate 3-kinase catalytic subunit gamma isoform
A
966Homo sapiensMutation(s): 0
Gene Names: PIK3CG
EC: 2.7.1.153
Find proteins for P48736 (Homo sapiens)
Go to Gene View: PIK3CG
Go to UniProtKB:  P48736
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
SD5
Query on SD5

Download SDF File
Download CCD File
A
5-[2,6-di(morpholin-4-yl)pyrimidin-4-yl]-4-(trifluoromethyl)pyridin-2-amine
C18 H21 F3 N6 O2
CWHUFRVAEUJCEF-UHFFFAOYSA-N
 Ligand Interaction
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
SD5IC50: 262 nM (99) BINDINGDB
SD5IC50: 262 nM PDBBIND
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.2 Å
  • R-Value Free: 0.261
  • R-Value Work: 0.213
  • Space Group: C 1 2 1
Unit Cell:
Length (Å)Angle (°)
a = 144.264α = 90.00
b = 67.848β = 96.09
c = 106.633γ = 90.00
Software Package:
Software NamePurpose
ADSCdata collection
PHENIXrefinement
PHASERphasing
SCALAdata scaling
MOSFLMdata reduction

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History

Deposition Data

Revision History

  • Version 1.0: 2012-01-04
    Type: Initial release
  • Version 1.1: 2012-02-29
    Type: Database references
