3MMT

Crystal structure of fructose bisphosphate aldolase from Bartonella henselae, bound to fructose bisphosphate


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.35 Å
  • R-Value Free: 0.222
  • R-Value Work: 0.177
  • R-Value Observed: 0.179

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Structure of fructose bisphosphate aldolase from Bartonella henselae bound to fructose 1,6-bisphosphate.

Gardberg, A.Abendroth, J.Bhandari, J.Sankaran, B.Staker, B.

(2011) Acta Crystallogr Sect F Struct Biol Cryst Commun 67: 1051-1054

  • DOI: 10.1107/S174430911101894X
  • Primary Citation of Related Structures:
    3MMT

  • PubMed Abstract:
  • Fructose bisphosphate aldolase (FBPA) enzymes have been found in a broad range of eukaryotic and prokaryotic organisms. FBPA catalyses the cleavage of fructose 1,6-bisphosphate into glyceraldehyde 3-phosphate and dihydroxyacetone phosphate. The SSGCID has reported several FBPA structures from pathogenic sources, including the bacterium Brucella melitensis and the protozoan Babesia bovis ...

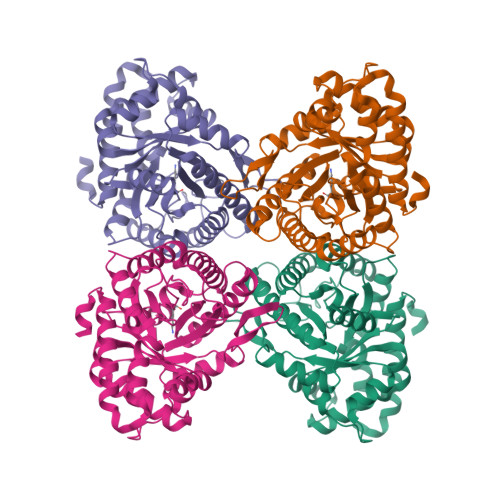

    Fructose bisphosphate aldolase (FBPA) enzymes have been found in a broad range of eukaryotic and prokaryotic organisms. FBPA catalyses the cleavage of fructose 1,6-bisphosphate into glyceraldehyde 3-phosphate and dihydroxyacetone phosphate. The SSGCID has reported several FBPA structures from pathogenic sources, including the bacterium Brucella melitensis and the protozoan Babesia bovis. Bioinformatic analysis of the Bartonella henselae genome revealed an FBPA homolog. The B. henselae FBPA enzyme was recombinantly expressed and purified for X-ray crystallographic studies. The purified enzyme crystallized in the apo form but failed to diffract; however, well diffracting crystals could be obtained by cocrystallization in the presence of the native substrate fructose 1,6-bisphosphate. A data set to 2.35 Å resolution was collected from a single crystal at 100 K. The crystal belonged to the orthorhombic space group P2(1)2(1)2(1), with unit-cell parameters a=72.39, b=127.71, c=157.63 Å. The structure was refined to a final free R factor of 22.2%. The structure shares the typical barrel tertiary structure and tetrameric quaternary structure reported for previous FBPA structures and exhibits the same Schiff base in the active site.


    Organizational Affiliation

    Emerald BioStructures, 7869 NE Day Road West, Bainbridge Island, WA 98110, USA. agardberg@embios.com



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Fructose-bisphosphate aldolaseA, B, C, D347Bartonella henselaeMutation(s): 0
Gene Names: BH15060fbabHM-1:IMSS
EC: 4.1.2.13
UniProt
Find proteins for Q8L207 (Bartonella henselae)
Explore Q8L207
Go to UniProtKB:  Q8L207
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
2FP (Subject of Investigation/LOI)
Query on 2FP

Download Ideal Coordinates CCD File
E [auth A], F [auth B], G [auth C], H [auth D]1,6-FRUCTOSE DIPHOSPHATE (LINEAR FORM)
C6 H14 O12 P2
XPYBSIWDXQFNMH-PYWDMBMJSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

Unit Cell:
Length ( Å )Angle ( ˚ )
a = 72.39α = 90
b = 127.71β = 90
c = 157.63γ = 90
Software Package:
Software NamePurpose
ADSCdata collection
PHASERphasing
REFMACrefinement
XDSdata reduction
XSCALEdata scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2010-05-19
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2011-09-21
    Changes: Database references
  • Version 1.3: 2016-04-20
    Changes: Other
