3H7Z

A transition from strong right-handed to canonical left-handed supercoiling in a conserved coiled coil segment of trimeric autotransporter adhesins - the M1 mutant structure


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.51 Å
  • R-Value Free: 0.279
  • R-Value Work: 0.233
  • R-Value Observed: 0.235

wwPDB Validation   3D Report Full Report


This is version 1.4 of the entry. See complete history


Literature

A transition from strong right-handed to canonical left-handed supercoiling in a conserved coiled-coil segment of trimeric autotransporter adhesins.

Alvarez, B.H.Gruber, M.Ursinus, A.Dunin-Horkawicz, S.Lupas, A.N.Zeth, K.

(2010) J Struct Biol 170: 236-245

  • DOI: https://doi.org/10.1016/j.jsb.2010.02.009
  • Primary Citation of Related Structures:
    3H7X, 3H7Z, 3LT6, 3LT7

  • PubMed Abstract:

    Trimeric autotransporter adhesins (TAAs) represent an important class of pathogenicity factors in proteobacteria. Their defining feature is a conserved membrane anchor, which forms a 12-stranded beta-barrel through the outer membrane. The proteins are translocated through the pore of this barrel and, once export is complete, the pore is occluded by a three-stranded coiled coil with canonical heptad (7/2) sequence periodicity. In many TAAs this coiled coil is extended by a segment of varying length, which has pentadecad (15/4) periodicity. We used X-ray crystallography and biochemical methods to analyze the transition between these two periodicities in the coiled-coil stalk of the Yersinia adhesin YadA. Our results show how the strong right-handed supercoil of the 15/4-periodic part locally undergoes further over-winding to 19/5, before switching at a fairly constant rate over 14 residues to the canonical left-handed supercoil of the 7/2-periodic part. The transition region contains two YxD motifs, which are characteristic for right-handed coiled-coil segments of TAAs. This novel coiled-coil motif forms a defined network of inter- and intrahelical hydrogen bonds, thus serving as a structural determinant. Supercoil fluctuations have hitherto been described in coiled coils whose main sequence periodicity is disrupted locally by discontinuities. Here we present the first detailed analysis of two fundamentally different coiled-coil periodicities being accommodated in the same structure.


  • Organizational Affiliation

    Department of Protein Evolution, Max-Planck-Institute for Developmental Biology, 72076 Tübingen, Germany.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Adhesin yadA61Yersinia enterocoliticaMutation(s): 3
Gene Names: yadA
UniProt
Find proteins for P0C2W0 (Yersinia enterocolitica)
Explore P0C2W0
Go to UniProtKB:  P0C2W0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0C2W0
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.51 Å
  • R-Value Free: 0.279
  • R-Value Work: 0.233
  • R-Value Observed: 0.235
  • Space Group: P 63
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 31.896α = 90
b = 31.896β = 90
c = 147.864γ = 120
Software Package:
Software NamePurpose
ADSCdata collection
MOLREPphasing
REFMACrefinement
XDSdata reduction
XDSdata scaling

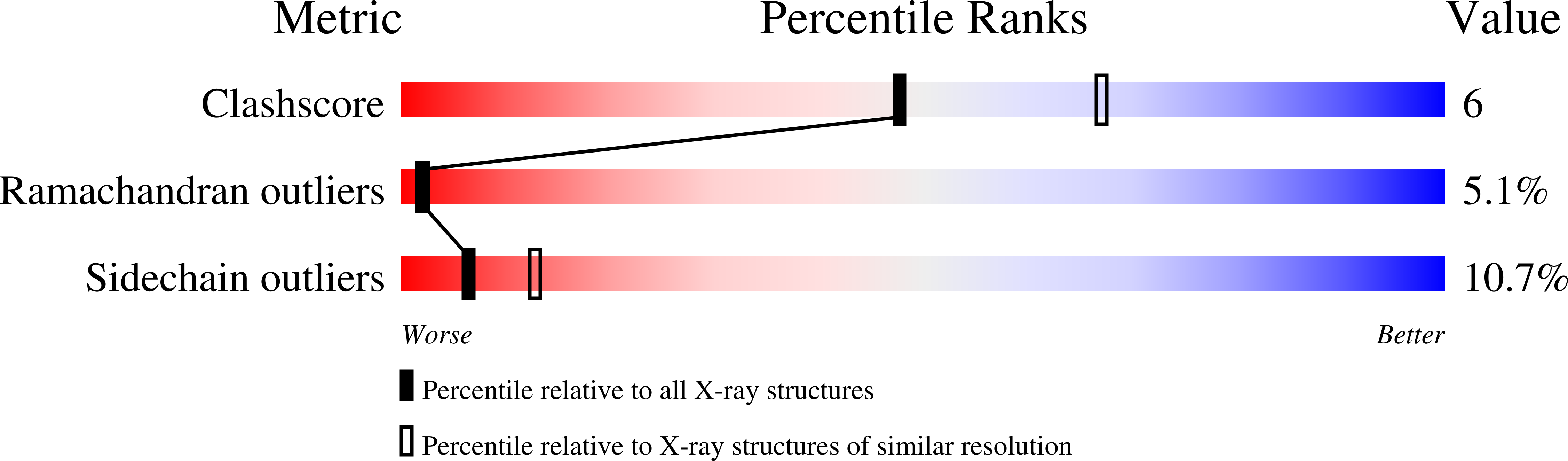

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2010-03-31
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2021-10-13
    Changes: Database references
  • Version 1.3: 2024-02-21
    Changes: Data collection
  • Version 1.4: 2024-04-03
    Changes: Refinement description
