2J7P

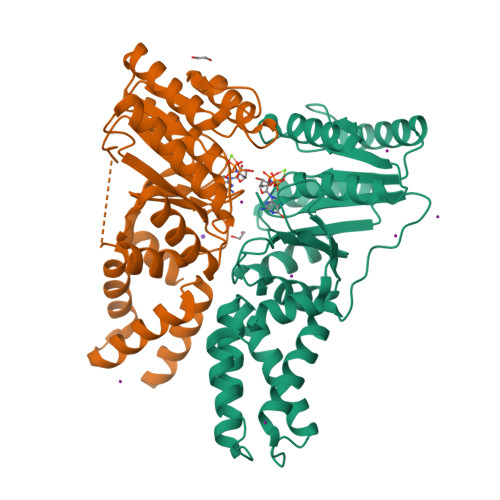

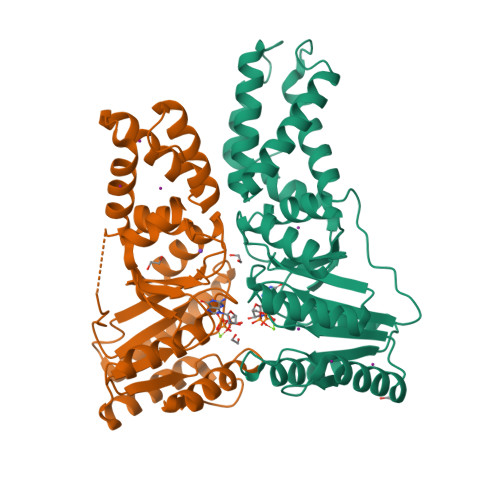

GMPPNP-stabilized NG domain complex of the SRP GTPases Ffh and FtsY

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.97 Å
  • R-Value Free: 0.227
  • R-Value Work: 0.184
  • R-Value Observed: 0.186

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history.


Literature

Structure of the Gmppnp-Stabilized Ng Domain Complex of the Srp Gtpases Ffh and Ftsy.

Gawronski-Salerno, J., Freymann, D.M.

(2007) J Struct Biol 158: 122

  • DOI: 10.1016/j.jsb.2006.10.025
  • Primary Citation of Related Structures:
    2J7P

  • PubMed Abstract:

    • Ffh and FtsY are GTPase components of the signal recognition particle co-translational targeting complex that assemble during the SRP cycle to form a GTP-dependent and pseudo twofold symmetric heterodimer. Previously the SRP GTPase heterodimer has been stabilized and purified for crystallographic studies using both the non-hydrolysable GTP analog GMPPCP and the pseudo-transition state analog GDP:AlF4, revealing in both cases a buried nucleotide pair that bridges and forms a key element of the heterodimer interface ...

    Ffh and FtsY are GTPase components of the signal recognition particle co-translational targeting complex that assemble during the SRP cycle to form a GTP-dependent and pseudo twofold symmetric heterodimer. Previously the SRP GTPase heterodimer has been stabilized and purified for crystallographic studies using both the non-hydrolysable GTP analog GMPPCP and the pseudo-transition state analog GDP:AlF4, revealing in both cases a buried nucleotide pair that bridges and forms a key element of the heterodimer interface. A complex of Ffh and FtsY from Thermus aquaticus formed in the presence of the analog GMPPNP could not be obtained, however. The origin of this failure was previously unclear, and it was thought to have arisen from either instability of the analog, or, alternatively, from differences in its interactions within the tightly conscribed composite active site chamber of the complex. Using insights gained from the previous structure determinations, we have now determined the structure of the SRP GTPase targeting heterodimer stabilized by the non-hydrolysable GTP analog GMPPNP. The structure demonstrates how the different GTP analogs are accommodated within the active site chamber despite slight differences in the geometry of the phosphate chain. It also reveals a K+ coordination site at the highly conserved DARGG loop at the N/G interdomain interface.

    Organizational Affiliation:

    Department of Molecular Pharmacology and Biological Chemistry, Northwestern University Medical School, 303 E. Chicago Avenue, Chicago, IL 60611, USA.



Macromolecules
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
SIGNAL RECOGNITION PARTICLE PROTEINA, B294Thermus aquaticusMutation(s): 0
Gene Names: ffh
UniProt
Find proteins for O07347 (Thermus aquaticus)
Explore O07347
Go to UniProtKB:  O07347
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO07347
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChainsSequence LengthOrganismDetailsImage
CELL DIVISION PROTEIN FTSYC [auth D],
D [auth E]		283Thermus aquaticusMutation(s): 0
Gene Names: ftsY
UniProt
Find proteins for P83749 (Thermus aquaticus)
Explore P83749
Go to UniProtKB:  P83749
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP83749
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 5 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
GNP
Query on GNP
Download Ideal Coordinates CCD File
AA [auth D],
HA [auth E],
L [auth A],
T [auth B]		PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
C10 H17 N6 O13 P3
UQABYHGXWYXDTK-UUOKFMHZSA-N		 Ligand Interaction
IOD
Query on IOD
Download Ideal Coordinates CCD File
FA [auth E],
G [auth A],
GA [auth E],
H [auth A],
I [auth A],
FA [auth E],
G [auth A],
GA [auth E],
H [auth A],
I [auth A],
J [auth A],
K [auth A],
N [auth B],
O [auth B],
P [auth B],
Q [auth B],
R [auth B],
S [auth B],
X [auth D],
Y [auth D],
Z [auth D]
IODIDE ION
I
XMBWDFGMSWQBCA-UHFFFAOYSA-M		 Ligand Interaction
EDO
Query on EDO
Download Ideal Coordinates CCD File
DA [auth E],
E [auth A],
EA [auth E],
F [auth A],
V [auth D],
DA [auth E],
E [auth A],
EA [auth E],
F [auth A],
V [auth D],
W [auth D]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N		 Ligand Interaction
K
Query on K
Download Ideal Coordinates CCD File
CA [auth D],
JA [auth E]		POTASSIUM ION
K
NPYPAHLBTDXSSS-UHFFFAOYSA-N		 Ligand Interaction
MG
Query on MG
Download Ideal Coordinates CCD File
BA [auth D],
IA [auth E],
M [auth A],
U [auth B]		MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N		 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.97 Å
  • R-Value Free: 0.227
  • R-Value Work: 0.184
  • R-Value Observed: 0.186
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 51.029α = 90
b = 129.556β = 91.66
c = 88.964γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
HKL-2000data reduction
SCALEPACKdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


View more in-depth experimental data
Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2006-12-11
    Type: Initial release
  • Version 1.1: 2011-05-08
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
