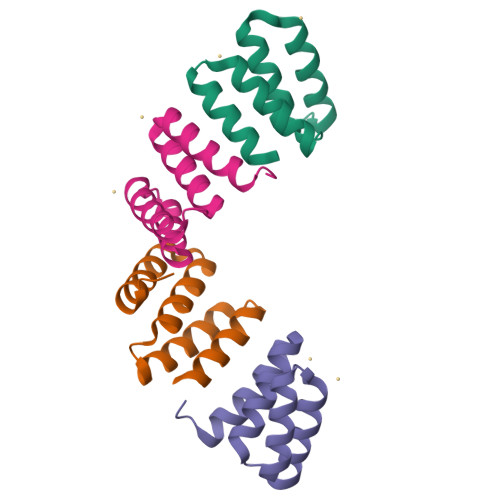

Crystal structure of an 8 repeat consensus TPR superhelix

Experimental Data Snapshot

  • Resolution: 2.04 Å
  • R-Value Free: 0.241
  • R-Value Work: 0.201
  • R-Value Observed: 0.205

wwPDB Validation   3D Report Full Report

This is version 1.3 of the entry. See complete history


Structure and stability of designed TPR protein superhelices: unusual crystal packing and implications for natural TPR proteins.

Kajander, T.Cortajarena, A.L.Mochrie, S.Regan, L.

(2007) Acta Crystallogr D Biol Crystallogr 63: 800-811

  • DOI: https://doi.org/10.1107/S0907444907024353
  • Primary Citation of Related Structures:
    2AVP, 2FO7, 2HYZ

  • PubMed Abstract:

    The structure and stability of repeat proteins has been little studied in comparison to the properties of the more familiar globular proteins. Here, the structure and stability of designed tetratricopeptide-repeat (TPR) proteins is described. The TPR is a 34-amino-acid motif which adopts a helix-turn-helix structure and occurs as tandem repeats. The design of a consensus TPR motif (CTPR) has previously been described. Here, the crystal structures and stabilities of proteins that contain eight or 20 identical tandem repeats of the CTPR motif (CTPR8 and CTPR20) are presented. Both CTPR8 and CTPR20 adopt a superhelical overall structure. The structures of the different-length CTPR proteins are compared with each other and with the structures of natural TPR domains. Also, the unusual and perhaps unique crystal-packing interactions resulting in pseudo-infinite crystalline superhelices observed in the different crystal forms of CTPR8 and CTPR20 are discussed. Finally, it is shown that the thermodynamic behavior of CTPR8 and CTPR20 can be predicted from the behavior of other TPRs in this series using an Ising model-based analysis. The designed protein series CTPR2-CTPR20 covers the natural size repertoire of TPR domains and as such is an excellent model system for natural TPR proteins.

  • Organizational Affiliation

    Department of Molecular Biophysics and Biochemistry, Yale University, New Haven, USA.

Find similar proteins by:  (by identity cutoff)  |  3D Structure

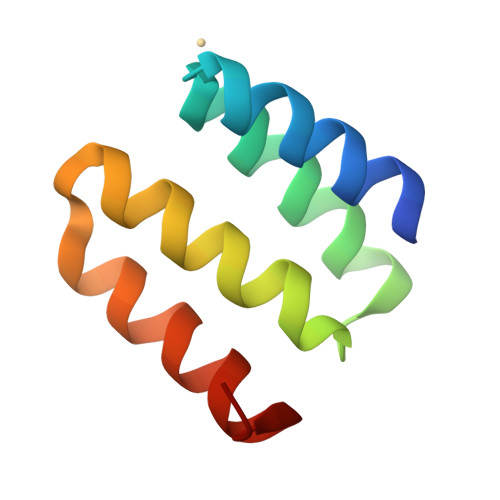

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
synthetic consensus TPR protein70N/AMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Resolution: 2.04 Å
  • R-Value Free: 0.241
  • R-Value Work: 0.201
  • R-Value Observed: 0.205
  • Space Group: P 41 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 54.245α = 90
b = 54.245β = 90
c = 71.782γ = 90
Software Package:
Software NamePurpose
PDB_EXTRACTdata extraction
HKL-2000data reduction
SCALEPACKdata scaling

Structure Validation

View Full Validation Report

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2005-09-13
    Type: Initial release
  • Version 1.1: 2008-05-01
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Advisory, Version format compliance
  • Version 1.3: 2024-02-14
    Changes: Data collection, Database references, Derived calculations
